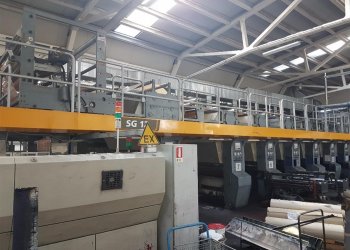

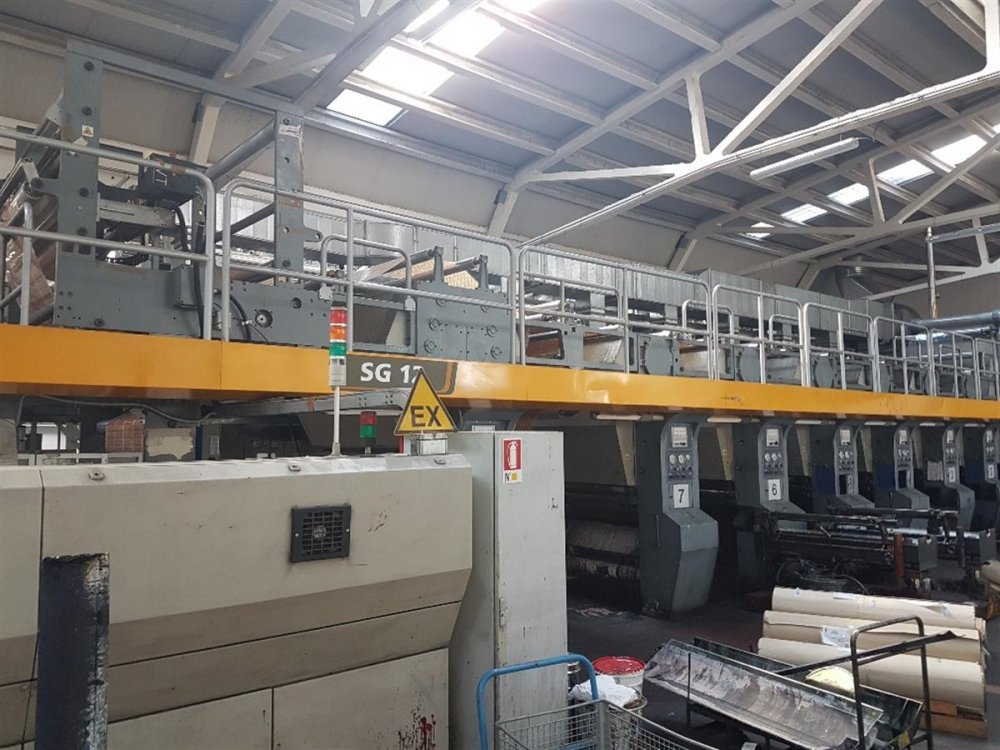

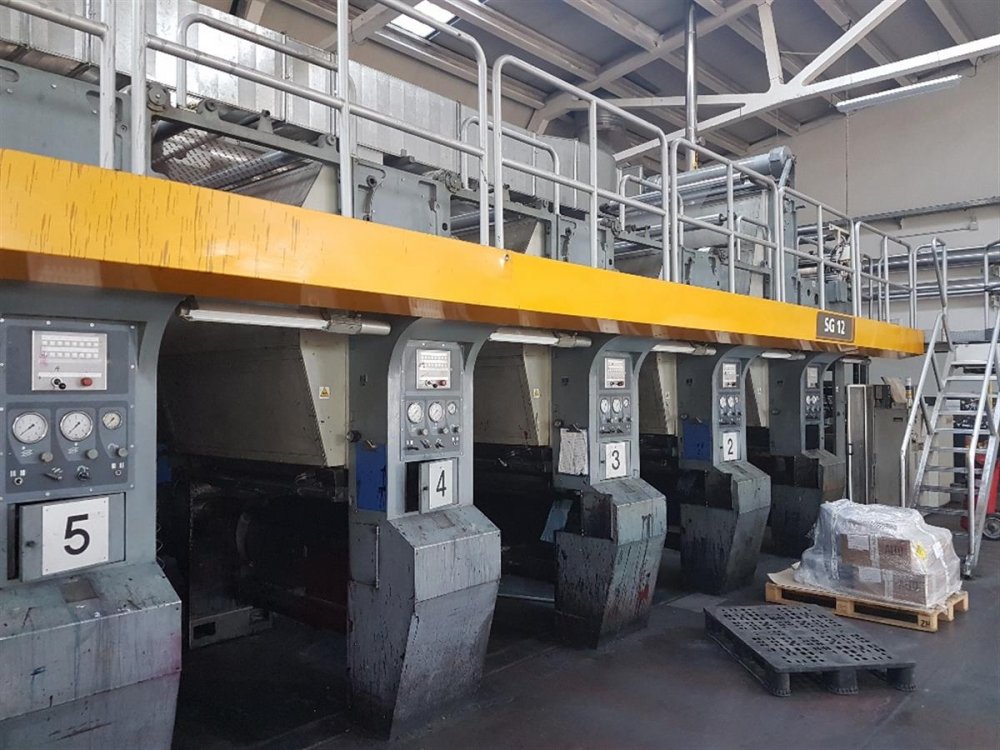

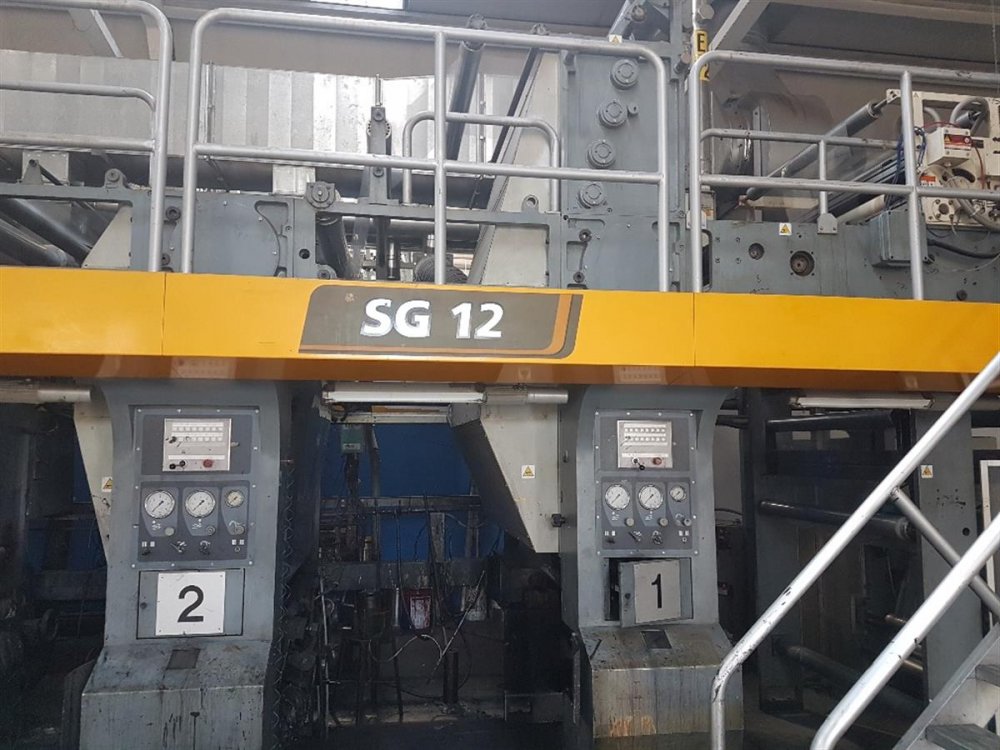

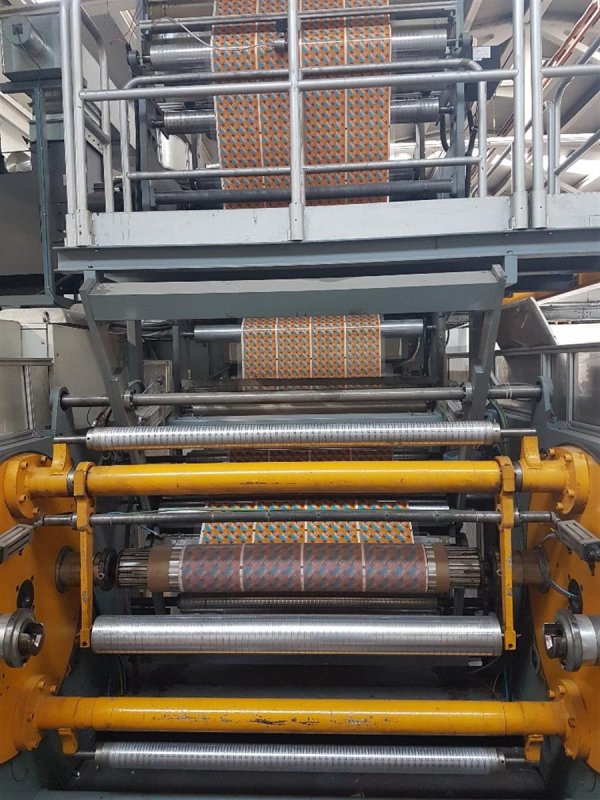

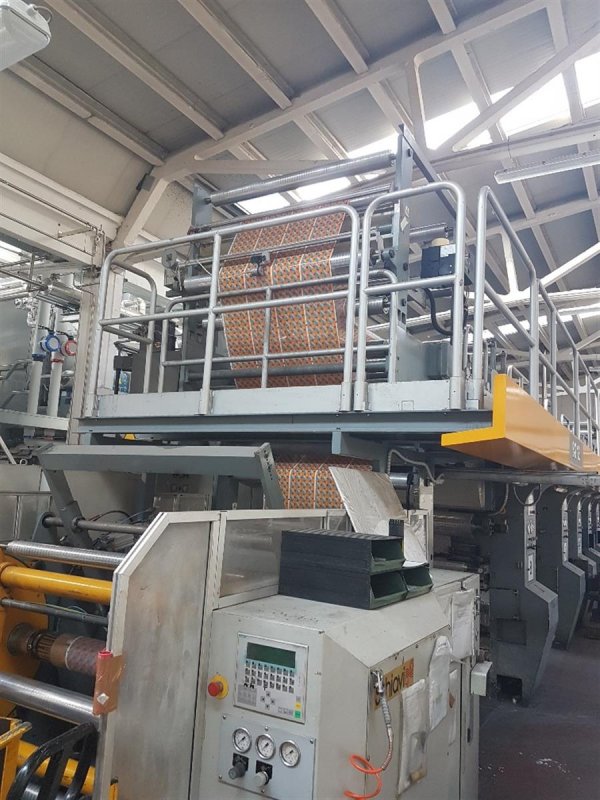

SCHIAVI SG 12 SUPER Gravure printing machine 8 colors

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO219
Manufacturer SCHIAVI
Model SG 12 SUPER
Year 2001
Number of colors 8
Drive Cardan
Trolley system Yes
Web width (mm) 1250
Print width (mm) 1220
Print repeat range (mm) 440-900mm
Drying specifications Unit 2-7: Single drying hood with.1,7m length, heat exchanger 65.000Kcal, 4200 m3/h. Unit 1 extended drying hood 2,4 m length heat exchanger 85.000Kcol, fan 5.700 m3/h, Unit 8 double 3,1m length, 125.000 Kcal , fans 125.000 m3/h
Drying heat surce Thermal oil heat exchangers

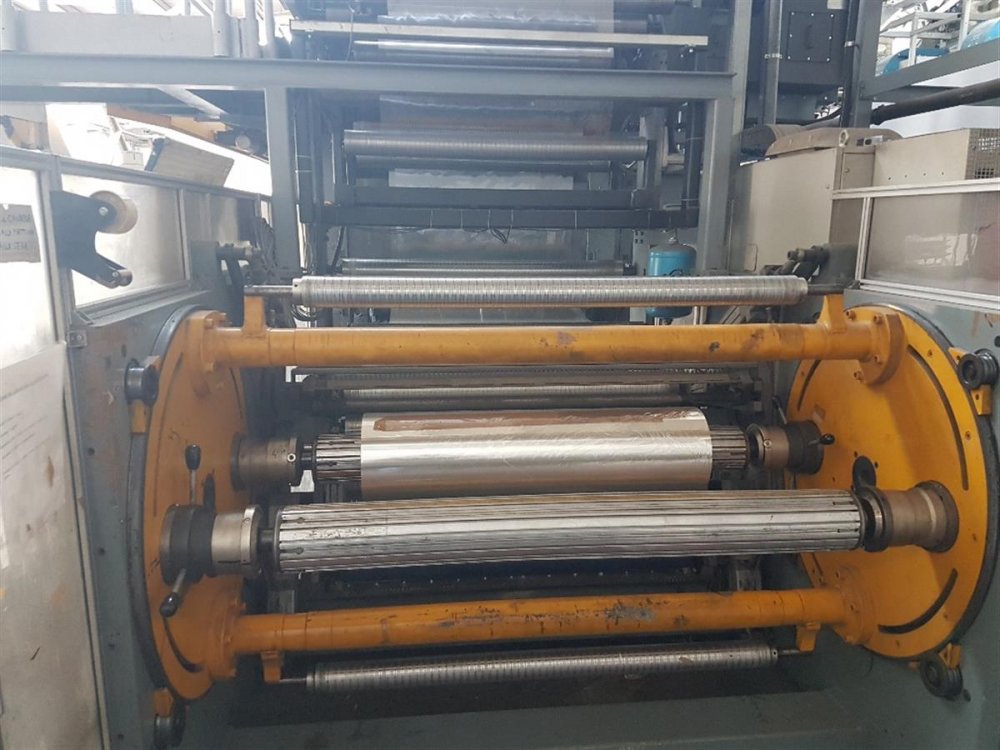

Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 800

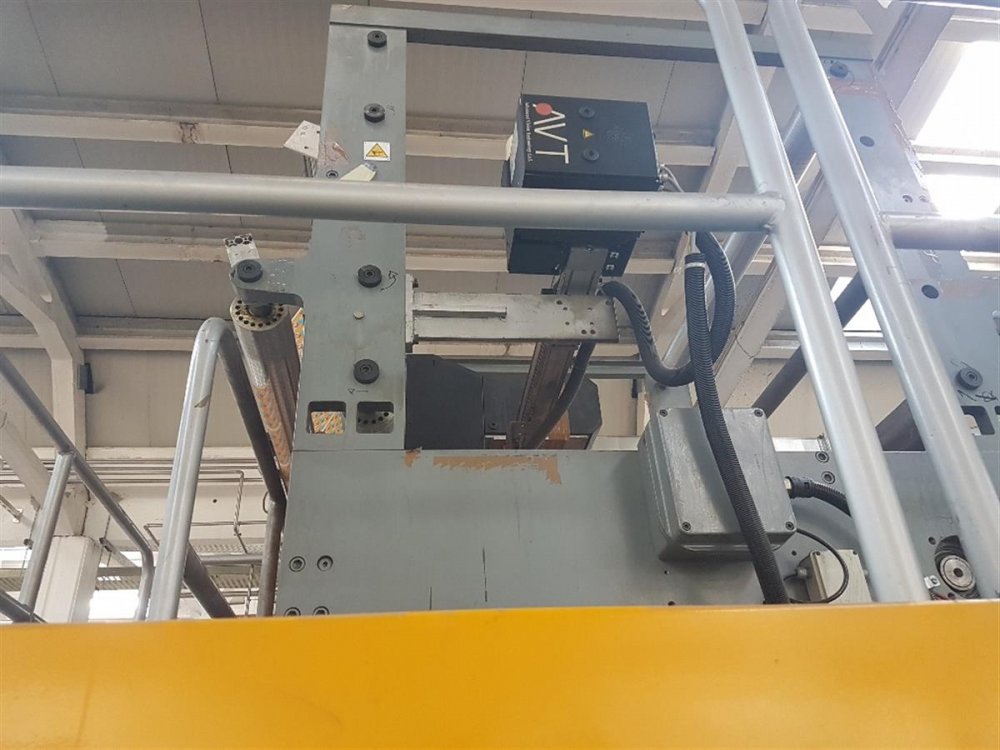

Videocamera AVT Jupiter with defect control

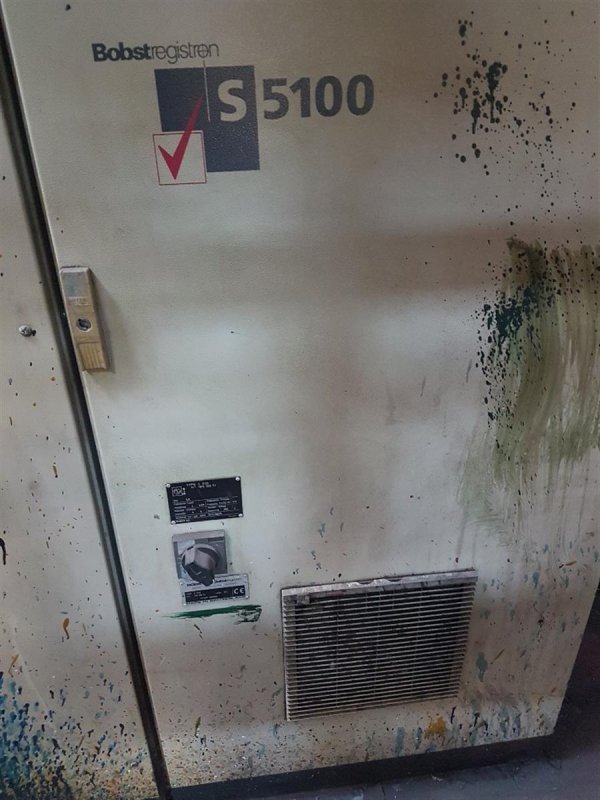

Register control BOBST REGIOSTRON 5100

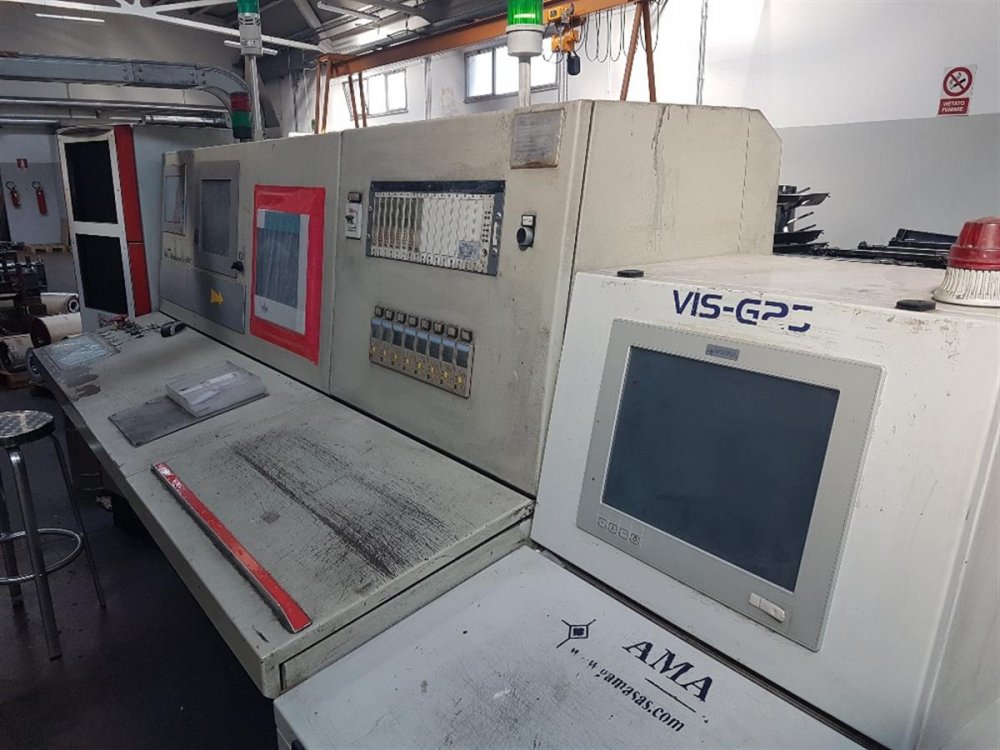

Vyscosity control Automatic control GAMA VIS-G25
