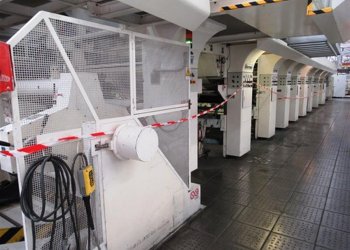

ROTOMEC Rotopack 3000-3 Rotogravure printing machine 8 colors

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO204
Manufacturer ROTOMEC
Model Rotopack 3000-3
Year 1997
Number of colors 8
Print possibilities 8+0 ; 7+1, 8 col printing or 7 col printing and 1 unit coating (e.g. cold seal)
Overhaul/renovation Register control and videocamera year 2002
Drive Cardan
Trolley system Yes
Web width (mm) 1020
Print width (mm) 1000
Print repeat range (mm) 500-920mm
Drying specifications Unit 1-6 single hood, unit 7-8 double hood
Drying heat surce Thermal oil
Unwinder type Turret (cores 76-152mm)
Rewinder type Turret (cores 76-152mm)
Videocamera Eltromat year 2002. with defect control
Register control Eltromat DCG650 year 2002
Vyscosity control FASNACHT FKR-MP2 et Z3337 A
Corona treatment SOftal 6040
Additional information - Electrostatic help from BADINA - 1 Oxydry system - 1 web alignment sytem from BST with optical cell and ultrasonic sensor - - 1 humidifyer - Pre-conditioning of web with heated calander at 200°C - 16 blade supports - 16 connectors and bearings - 16 ink application units - 8 filters - 12 trolleys - 12 pumps - 9 electrical motors for pumps
