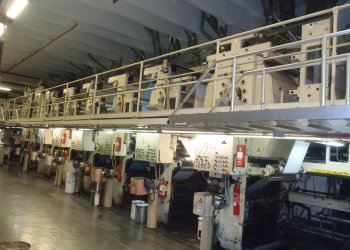

** SOLD **
Rotogravure presses allow high and stable print quality. Recent technical improvements also allowed to reduce set up times.
Ask more informations
about a similar one
- Machine Code
- RO136
- Manufacturer
- BOBST ROTOMEC
- Modello
- ROTOPACK 3000
- Year
- 1993
- Number of colors
- 8
- Web width (mm)
- 730
- Print width (mm)
- 700
- Print repeat range (mm)
- 350-750 mm
- Drying heat surce
- Diathermic oil
- Unwinder type
- Automatic spice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic spice
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- Eltromat new generations
- Register controll
- Eltromat new generations
- Vyscosity control
- Grafikontrol
- Corona treatment
- Mero
- Print cylinders
- 400 printing sleeves. Rubber pressure sleeves
- Note
- Rapid change with air chuck Cores 152mm. Mechanical speed 250m/min Material : BOPP from 15 to 60my. PET from 12 to 60my. Paper from 30 to 150gr. ALU from 12 to 40my; MSA automatic recirculation solvent Static control:ACE Pneumatic pumps and inks box. Doctor blade.Fire extinguishing system Spare parts,
| Machine Code | RO136 |
| Manufacturer | BOBST ROTOMEC |
| Modello | ROTOPACK 3000 |
| Year | 1993 |
| Number of colors | 8 |
| Web width (mm) | 730 |
| Print width (mm) | 700 |
| Print repeat range (mm) | 350-750 mm |
| Drying heat surce | Diathermic oil |
| Unwinder type | Automatic spice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic spice |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | Eltromat new generations |
| Register controll | Eltromat new generations |
| Vyscosity control | Grafikontrol |
| Corona treatment | Mero |
| Print cylinders | 400 printing sleeves. Rubber pressure sleeves |
| Note | Rapid change with air chuck Cores 152mm. Mechanical speed 250m/min Material : BOPP from 15 to 60my. PET from 12 to 60my. Paper from 30 to 150gr. ALU from 12 to 40my; MSA automatic recirculation solvent Static control:ACE Pneumatic pumps and inks box. Doctor blade.Fire extinguishing system Spare parts, |
