** SOLD **

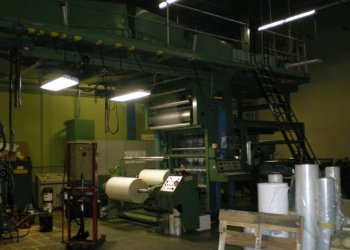

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL596
- Manufacturer
- UTECO
- Modello
- AMBER 808
- Year
- 1994
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- No
- Web width (mm)
- 1550
- Print width (mm)
- 1500
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800
- Unwinder type
- Semi automatic drop splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic with blade slitting device.
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 Gas burners 200.000 K/cal.
- Web guides
- 2 FIFE
- Anilox
- 16
- Print cylinders
- as follows: 8x14.5; 10x15,5; 9x16,5; 8x17,75; 8x18,5; 8x19, 9x19,25; 8x20; 1x21,25; 8x21,5; 6x22; 8x22,75; 8x23,5; 9x25; 8x26; 8x26.75; 8x27; 8x28,25 mm
- Note
- Material: LDPE Total plate thickness: 3,25 mm (stickyback included) Mechanical speed: 250 /min 8 electric pumps with tanks, 8 ink trays, 8 new doctor chambers and blade system of last generation. Unwind and rewind rebuilt in 2008, new gears, hydraulics, new main motor.
| Machine Code | FL596 |
| Manufacturer | UTECO |
| Modello | AMBER 808 |
| Year | 1994 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | No |
| Web width (mm) | 1550 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Unwinder type | Semi automatic drop splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic with blade slitting device. |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 Gas burners 200.000 K/cal. |
| Web guides | 2 FIFE |
| Anilox | 16 |
| Print cylinders | as follows: 8x14.5; 10x15,5; 9x16,5; 8x17,75; 8x18,5; 8x19, 9x19,25; 8x20; 1x21,25; 8x21,5; 6x22; 8x22,75; 8x23,5; 9x25; 8x26; 8x26.75; 8x27; 8x28,25 mm |
| Note | Material: LDPE Total plate thickness: 3,25 mm (stickyback included) Mechanical speed: 250 /min 8 electric pumps with tanks, 8 ink trays, 8 new doctor chambers and blade system of last generation. Unwind and rewind rebuilt in 2008, new gears, hydraulics, new main motor. |
