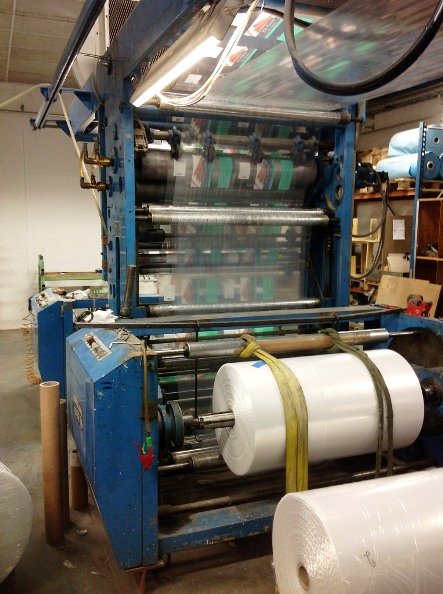

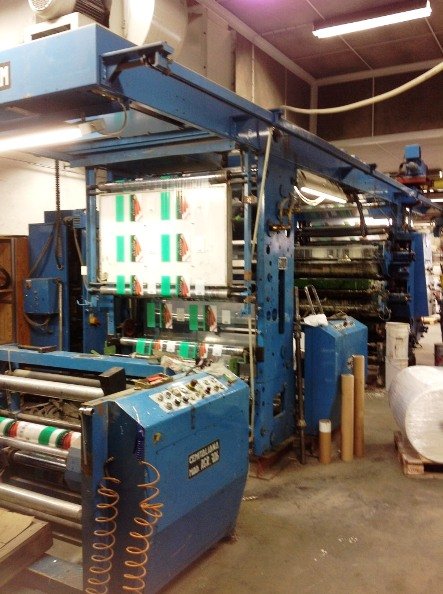

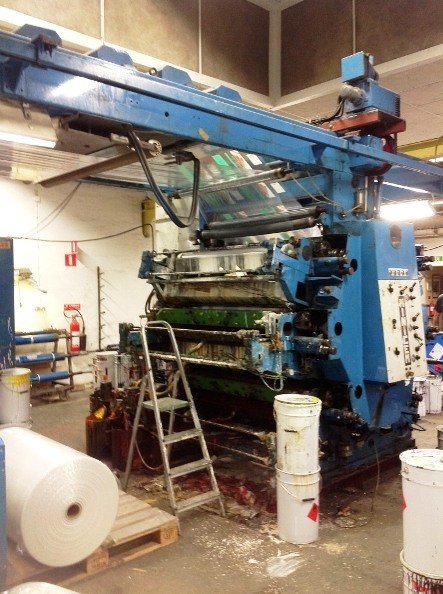

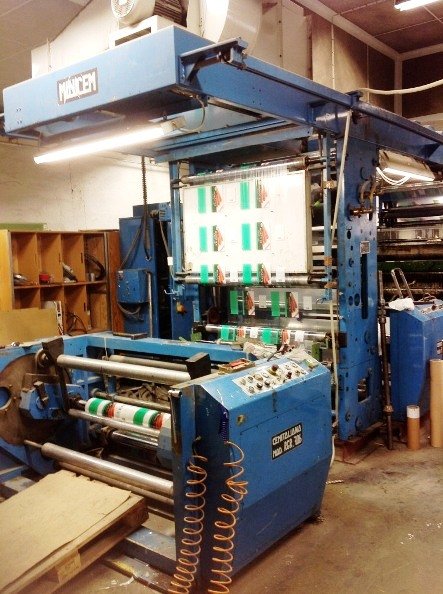

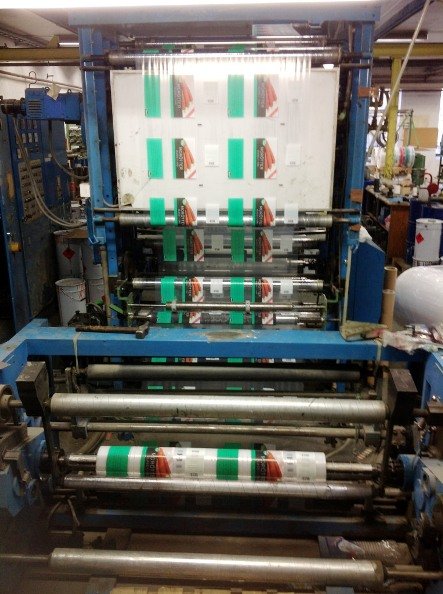

CMF MINCEM RGR 706 Flexo printer 6 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL589
Manufacturer
CMF
Model
MINCEM RGR 706
Year
1989
Number of colors
6
Gearless
No
Fast sleeve change
No
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
300
Max print repeat (mm)
800
Unwinder type
DOUBLE
Max reel diameter unwinder (mm)
800
Rewinder type
DOUBLE
Max reel diameter rewinder (mm)
800
Drying
Electrical
Web guides
1
Inking system
6 chamber doctor blades BPI type
Anilox
7
Print Sleeves
49 type Rotec
Print cylinders
6 air cylinders. 66 printing cylinders with gears
Additional information
Printing speed 200m/min . Materials film , PE, PP, PET, paper + laminates
Machine Code FL589
Manufacturer CMF
Model MINCEM RGR 706
Year 1989
Number of colors 6
Gearless No
Fast sleeve change No
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 300
Max print repeat (mm) 800
Unwinder type DOUBLE
Max reel diameter unwinder (mm) 800
Rewinder type DOUBLE
Max reel diameter rewinder (mm) 800
Drying Electrical
Web guides 1
Inking system 6 chamber doctor blades BPI type
Anilox 7
Print Sleeves 49 type Rotec
Print cylinders 6 air cylinders. 66 printing cylinders with gears
Additional information Printing speed 200m/min . Materials film , PE, PP, PET, paper + laminates
** SOLD **
