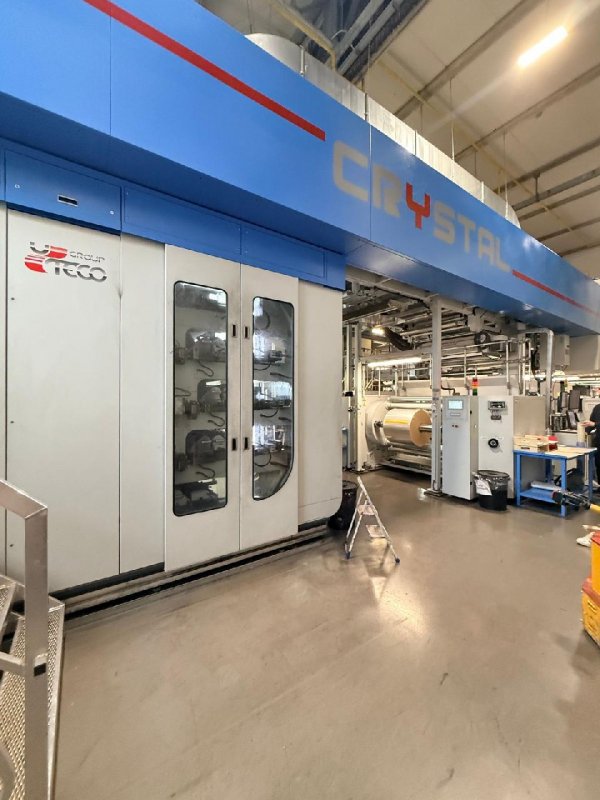

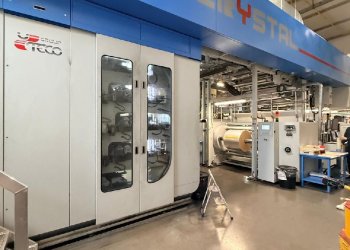

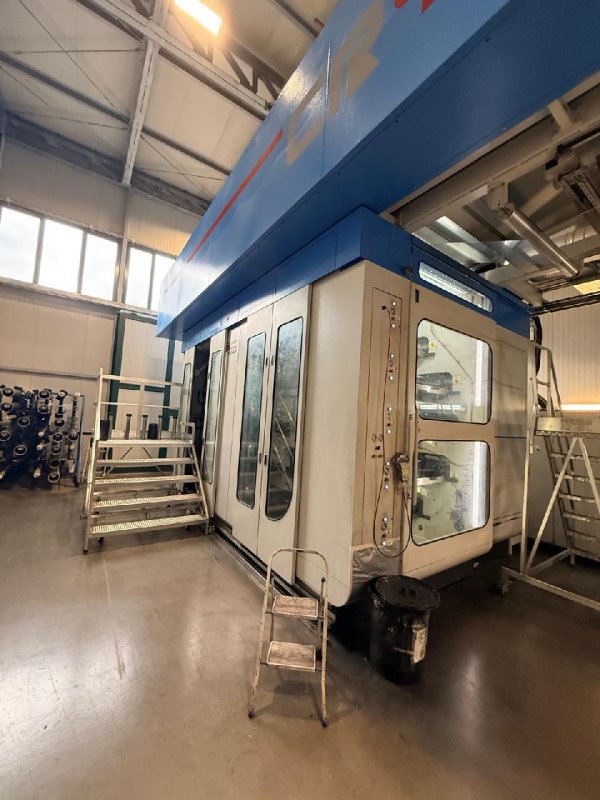

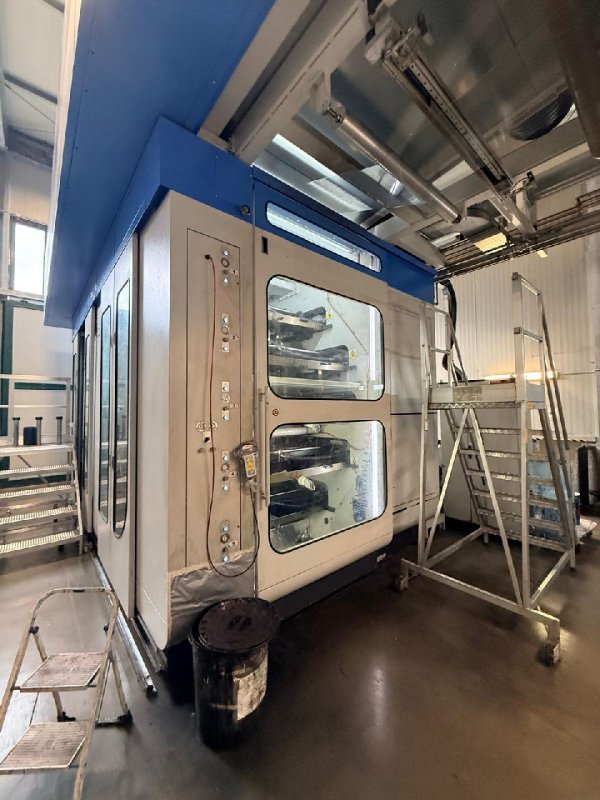

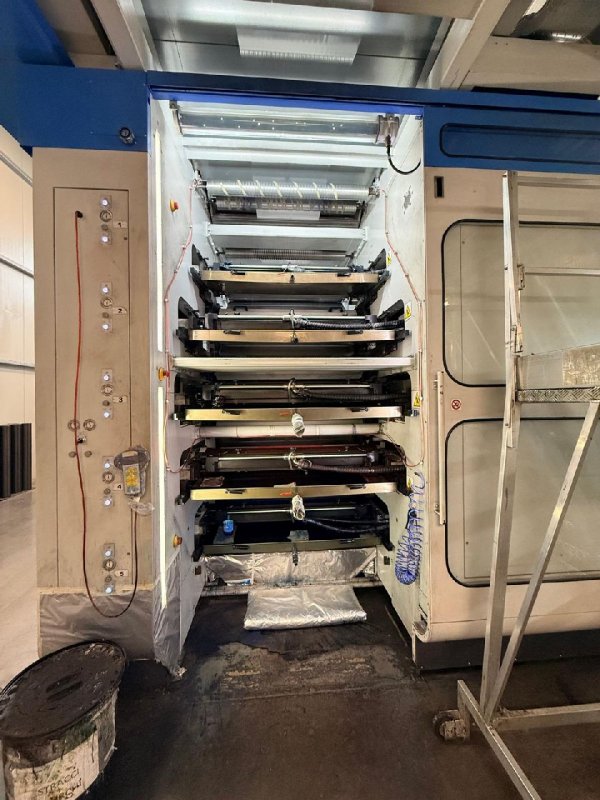

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL1217
- Manufacturer
- UTECO
- Modello
- Crystal 108
- Year
- 2019
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850

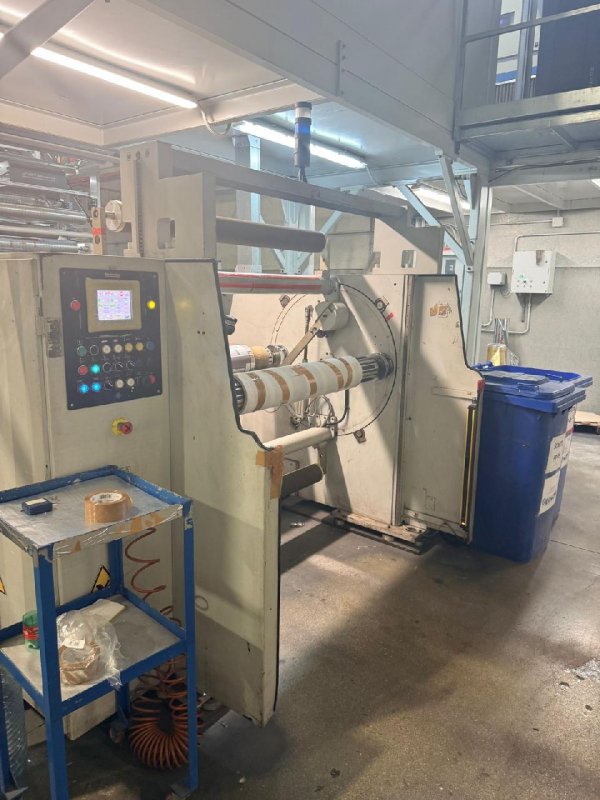

- Unwinder type
- Turret automatic, with roll loading system 2 shafts 76mm and 2 shafts 152mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic, with roll unloading system 2 shafts 76mm and 2 shafts 152mm
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones, 4 fans, final tunnel 6 meters, 2 gas burners. Automatic air recirculation LEL control system by NIRA
- Videocamera
- Grafikontrol 100% inspection complete with Defect control and "Click & Drag" register control System
- Corona treatment
- Ferrarini & Benelli
- Web guides
- BST in and out
- Vyscosity control
- Gama G26
- Washing system
- Yes, automatic
- Inking system
- Closed Chamber doctor blades
- Anilox
- 12 anilox sleeves
- Print Sleeves
- 160 sleeves
- Print cylinders
- 2 set of carriers
- Note
- max. mechanical speed- 500m/min "Touch & Go" System "Tune & Go" System "kiss & Go" System
| Machine Code | FL1217 |
| Manufacturer | UTECO |
| Modello | Crystal 108 |
| Year | 2019 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret automatic, with roll loading system 2 shafts 76mm and 2 shafts 152mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic, with roll unloading system 2 shafts 76mm and 2 shafts 152mm |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones, 4 fans, final tunnel 6 meters, 2 gas burners. Automatic air recirculation LEL control system by NIRA |
| Videocamera | Grafikontrol 100% inspection complete with Defect control and "Click & Drag" register control System |
| Corona treatment | Ferrarini & Benelli |
| Web guides | BST in and out |
| Vyscosity control | Gama G26 |
| Washing system | Yes, automatic |
| Inking system | Closed Chamber doctor blades |
| Anilox | 12 anilox sleeves |
| Print Sleeves | 160 sleeves |
| Print cylinders | 2 set of carriers |
| Note | max. mechanical speed- 500m/min "Touch & Go" System "Tune & Go" System "kiss & Go" System |
