Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1207
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Primaflex
- Year
- 2005
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 870
- Print width (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans , final tunnel, Gas burners
- Videocamera
- BST Premius
- Web guides
- 2 web guides
- Anilox
- 22 aniloxes : 1 x 120 linee cm/ 12, 8 cm³/m², 1 x 140 linee cm/ 13, 5 cm³/m², 1 x 160 linee cm/ 12, 3 cm³/m², 1 x 200 linee cm/ 9,5 cm³/m², 1 x 300 linee cm/ 7, 3 cm³/m², 1 x 360 linee cm/ 4, 8 cm³/m², 1 x 360 linee cm/ 5 cm³/m², 2 x 360 linee cm/ 4, 9 cm³/m², 3 x 400 linee cm/ 4, 5 cm³/m², 1 x 400 linee cm/ 4, 6 cm³/m², 1 x 160 linee cm/ 11 cm³/m², 1 x 200 linee cm/ 10 cm³/m², 1 x 280 linee cm/ 10 cm³/m², 1 x 360 linee cm/ 8 cm³/m², 1 x 460 linee cm/ 5 cm³/m², 1 x 580 linee cm/ 4 cm³/m², 1 x 140 linee cm/ 16,5 cm³/m², 1 x 140 linee cm/ 13,4 cm³/m², 1 x 200 linee cm/ 9,5 cm³/m²
- Print Sleeves
- 378 sleeves, 16 x 250mm, 16 x 260mm, 8 x 270mm, 8 x 280mm, 8 x 290mm, 8 x 300mm, 8 x 310mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 345mm, 16 x 350mm, 8 x 360mm, 8 x 375mm, 8 x 380mm, 16 x 390mm, 16 x 400mm, 8 x 410mm, 16 x 420mm, 16 x 430mm, 8 x 440mm, 8 x 450mm, 8 x 460mm, 8 x 470mm, 8 x 480mm, 8 x 490mm, 8 x 500mm, 8 x 520mm, 8 x 560mm, 8 x 580mm, 10 x 600mm, 8 x 610mm, 8 x 620mm, 8 x 640mm, 8 x 650mm, 8 x 680mm, 8 x 700mm, 8 x 730mm, 8 x 750mm
| Machine Code | FL1207 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Primaflex |
| Year | 2005 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 870 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans , final tunnel, Gas burners |
| Videocamera | BST Premius |
| Web guides | 2 web guides |
| Anilox | 22 aniloxes : 1 x 120 linee cm/ 12, 8 cm³/m², 1 x 140 linee cm/ 13, 5 cm³/m², 1 x 160 linee cm/ 12, 3 cm³/m², 1 x 200 linee cm/ 9,5 cm³/m², 1 x 300 linee cm/ 7, 3 cm³/m², 1 x 360 linee cm/ 4, 8 cm³/m², 1 x 360 linee cm/ 5 cm³/m², 2 x 360 linee cm/ 4, 9 cm³/m², 3 x 400 linee cm/ 4, 5 cm³/m², 1 x 400 linee cm/ 4, 6 cm³/m², 1 x 160 linee cm/ 11 cm³/m², 1 x 200 linee cm/ 10 cm³/m², 1 x 280 linee cm/ 10 cm³/m², 1 x 360 linee cm/ 8 cm³/m², 1 x 460 linee cm/ 5 cm³/m², 1 x 580 linee cm/ 4 cm³/m², 1 x 140 linee cm/ 16,5 cm³/m², 1 x 140 linee cm/ 13,4 cm³/m², 1 x 200 linee cm/ 9,5 cm³/m² |
| Print Sleeves | 378 sleeves, 16 x 250mm, 16 x 260mm, 8 x 270mm, 8 x 280mm, 8 x 290mm, 8 x 300mm, 8 x 310mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 345mm, 16 x 350mm, 8 x 360mm, 8 x 375mm, 8 x 380mm, 16 x 390mm, 16 x 400mm, 8 x 410mm, 16 x 420mm, 16 x 430mm, 8 x 440mm, 8 x 450mm, 8 x 460mm, 8 x 470mm, 8 x 480mm, 8 x 490mm, 8 x 500mm, 8 x 520mm, 8 x 560mm, 8 x 580mm, 10 x 600mm, 8 x 610mm, 8 x 620mm, 8 x 640mm, 8 x 650mm, 8 x 680mm, 8 x 700mm, 8 x 730mm, 8 x 750mm |
WINDMÖLLER & HÖLSCHER Soloflex
-
Machine Code: FL1180
-
Year: 1993
-
Web width (mm): 630
BONARDI M7
-
Machine Code: FL1136
-
Year: 2020
-
Web width (mm): 1400

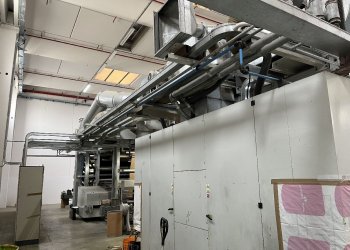

UTECO ONYX 876 + 1
-
