Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1201
- Manufacturer

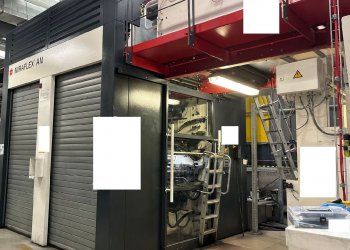

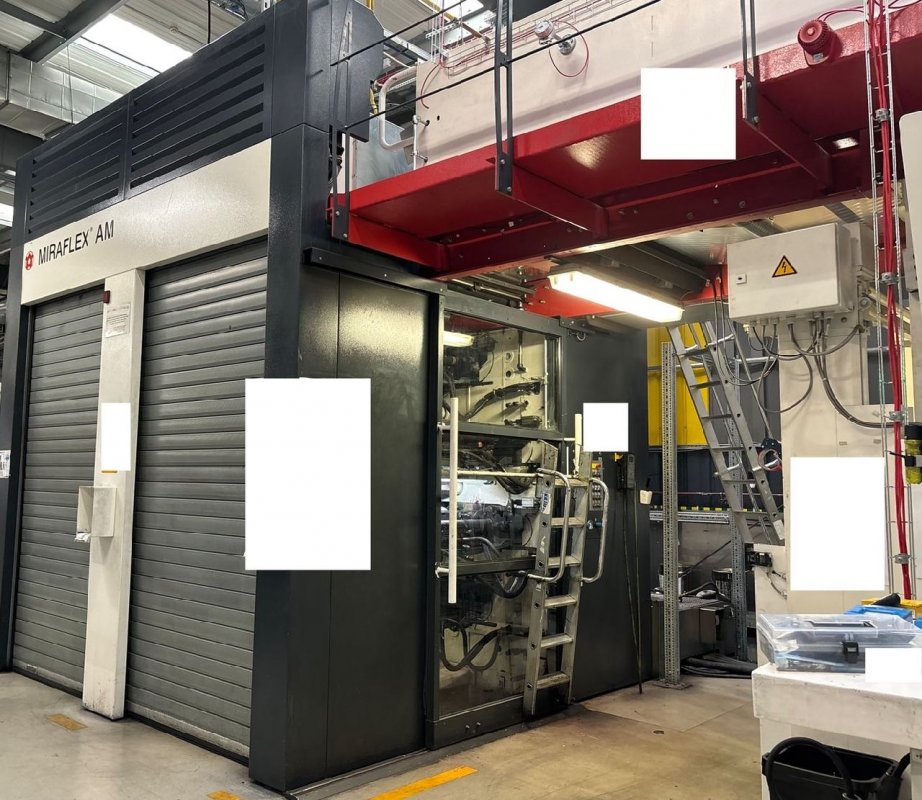

- WINDMÖLLER & HÖLSCHER
- Modello
- Miraflex
- Year
- 2013
- Number of colors
- 8
- Overhaul/renovation
- We camera and inspection system
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans, 2 gas burners

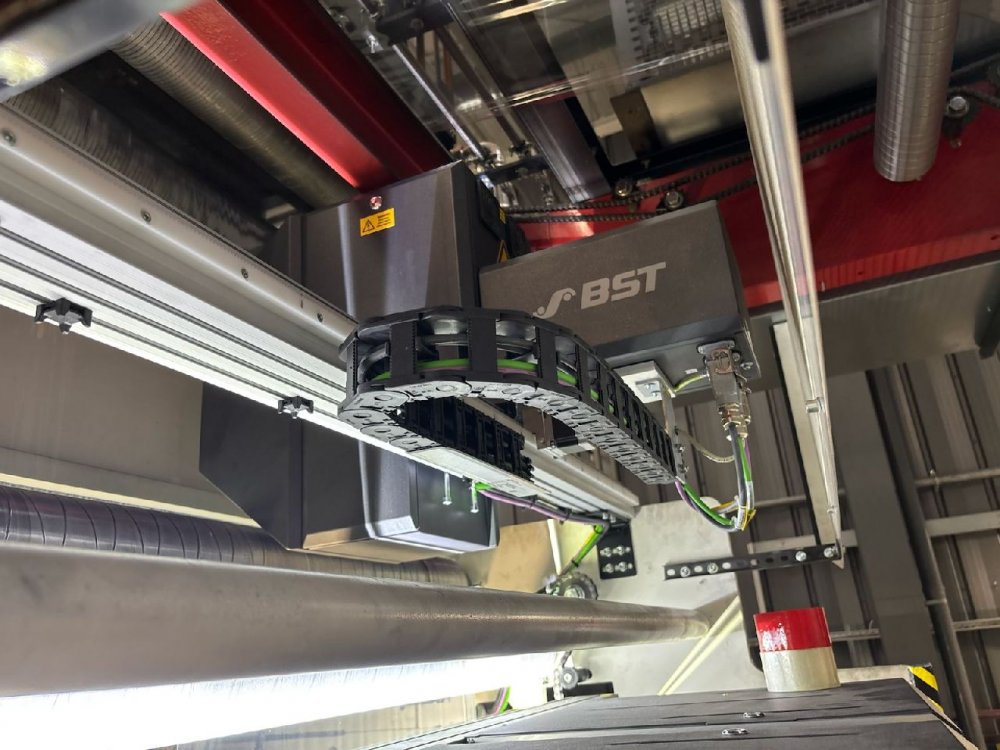

- Videocamera
- year 2024 with automatic quality inspection system
- Corona treatment
- YEs
- Vyscosity control
- automatic
- Washing system
- TURBOCLEAN automatic washing system

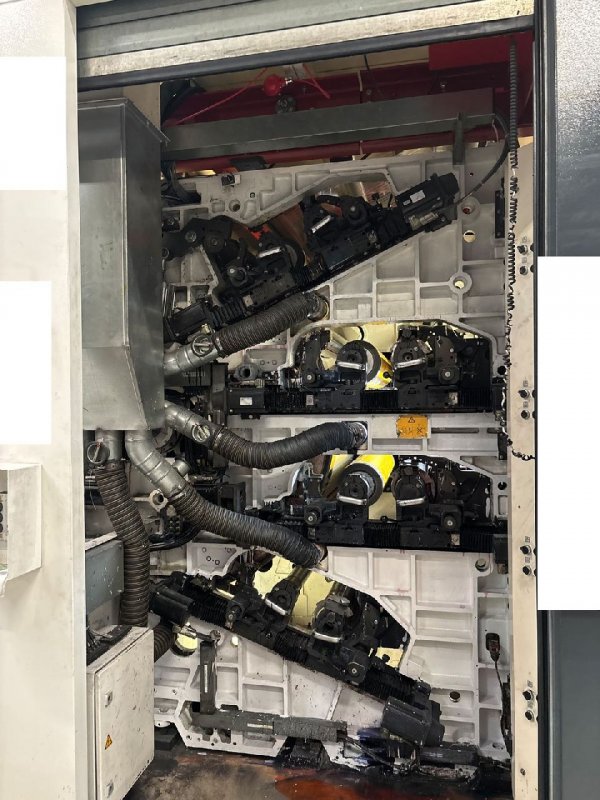

- Inking system
- closed chamber doctor blades
- Anilox
- 32 ceramic anilox sleeves as follows 10 x 400 L/cm- vol.3,5 ; 4 x 470 L/cm- vol.3,5 ; 4x 340 L/cm-vol.5,5 ; 2x 300 L/cm-vol.7 ; 2x 280 L/cm-vol.8 ; 2x 200 L/cm-vol.10; 2x 160 L//cm- vol.10; 2x 120 L/cm-vol.12 ; 2x 100 L/cm-vol.15 ; 1x 140 L/cm- vol 16,5 1x 60 L/cm- vol 20
- Print Sleeves
- 260 sleeves - 8 for each following repeat 300 mm, 310 mm, 320 mm, 325 mm, 330 mm, 340 mm, 350 mm, 355 mm, 360 mm, 370 mm, 380 mm, 385 mm , 390 mm, 400 mm, 410 mm, 420 mm,430 mm, 440 mm, 450 mm, 460 mm, 470 mm, 480 mm (x16 ) , 500 mm , 510 mm, 520 mm, 540 mm, 560 mm, 580 mm, 590 mm, 620 mm, 660 mm
- Note
- max. working speed 400m/min Automatic Impression setting „EASY SET HD“ Automatic Register setting „EASY REG S“ Colour maching system „EASY COL“
| Machine Code | FL1201 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Miraflex |
| Year | 2013 |
| Number of colors | 8 |
| Overhaul/renovation | We camera and inspection system |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans, 2 gas burners |
| Videocamera | year 2024 with automatic quality inspection system |
| Corona treatment | YEs |
| Vyscosity control | automatic |
| Washing system | TURBOCLEAN automatic washing system |
| Inking system | closed chamber doctor blades |
| Anilox | 32 ceramic anilox sleeves as follows 10 x 400 L/cm- vol.3,5 ; 4 x 470 L/cm- vol.3,5 ; 4x 340 L/cm-vol.5,5 ; 2x 300 L/cm-vol.7 ; 2x 280 L/cm-vol.8 ; 2x 200 L/cm-vol.10; 2x 160 L//cm- vol.10; 2x 120 L/cm-vol.12 ; 2x 100 L/cm-vol.15 ; 1x 140 L/cm- vol 16,5 1x 60 L/cm- vol 20 |
| Print Sleeves | 260 sleeves - 8 for each following repeat 300 mm, 310 mm, 320 mm, 325 mm, 330 mm, 340 mm, 350 mm, 355 mm, 360 mm, 370 mm, 380 mm, 385 mm , 390 mm, 400 mm, 410 mm, 420 mm,430 mm, 440 mm, 450 mm, 460 mm, 470 mm, 480 mm (x16 ) , 500 mm , 510 mm, 520 mm, 540 mm, 560 mm, 580 mm, 590 mm, 620 mm, 660 mm |
| Note | max. working speed 400m/min Automatic Impression setting „EASY SET HD“ Automatic Register setting „EASY REG S“ Colour maching system „EASY COL“ |
