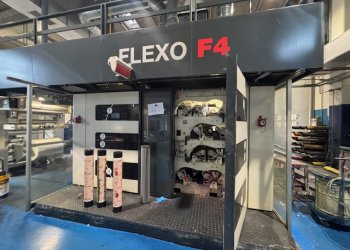

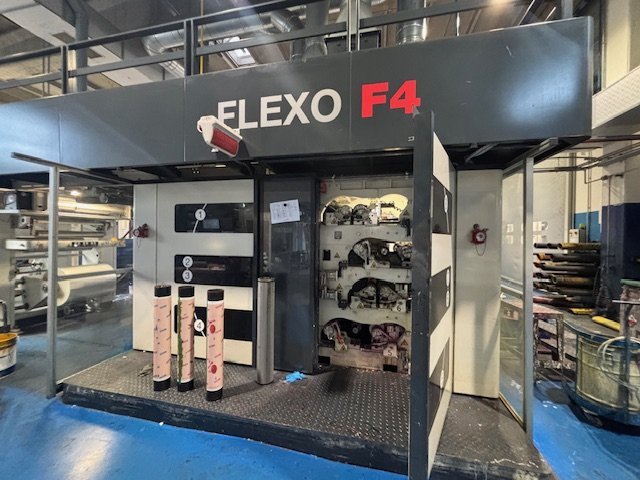

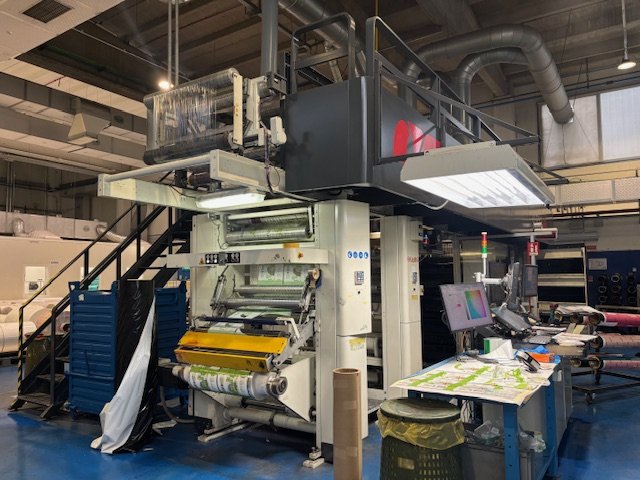

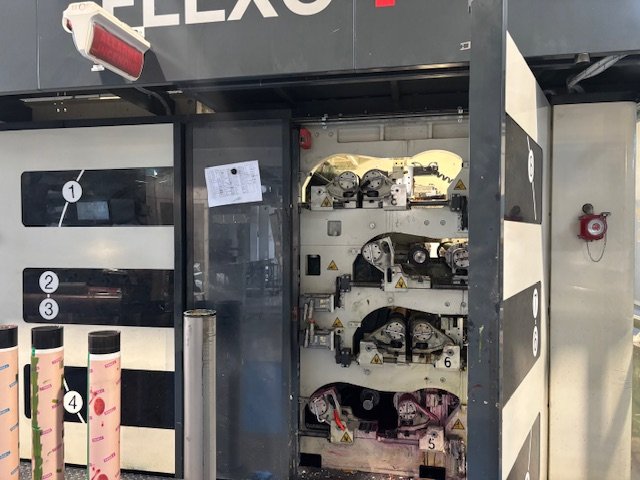

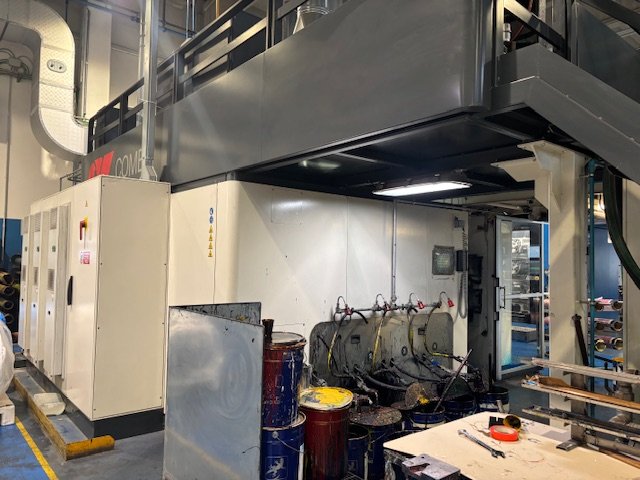

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1190
- Manufacturer
- COMEXI
- Modello
- F4
- Year
- 2015
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000

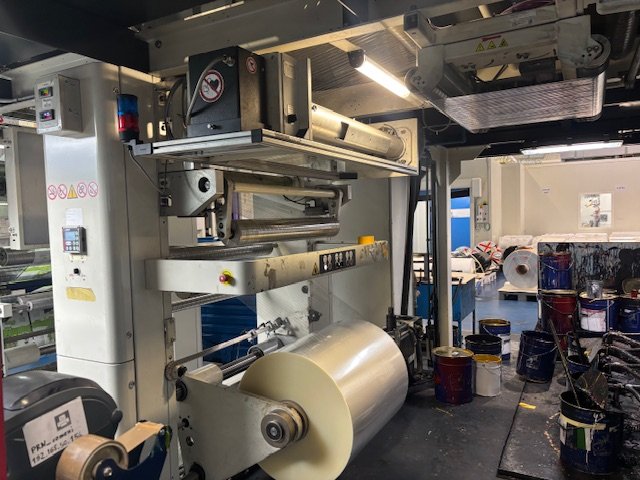

- Unwinder type
- Single shaftless AC motor driven
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Single AC motor driven
- Max reel diameter rewinder (mm)
- 800

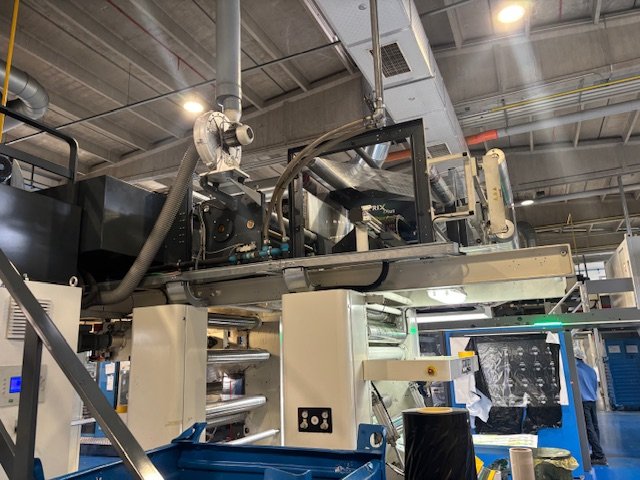

- Drying
- 2 zones drying system. 2 gas burners 4 fans
- Videocamera
- Grafikontrol
- Corona treatment
- Ahlbrandt
- Web guides
- yes
- Vyscosity control
- Automatic viscosity control
- Washing system
- Automatic washing system

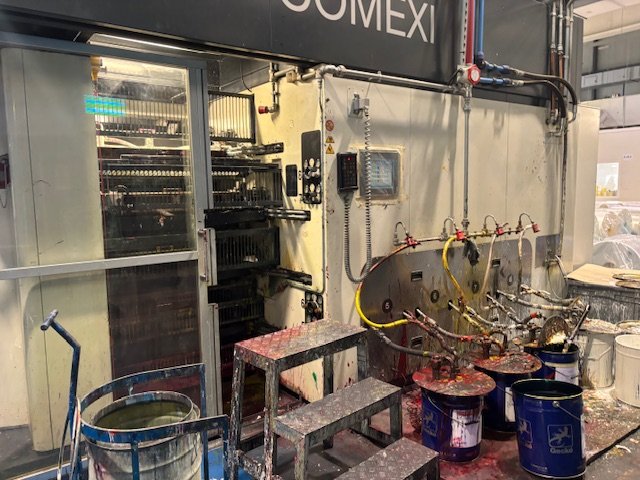

- Inking system
- Closed chamber doctor blades
| Machine Code | FL1190 |
| Manufacturer | COMEXI |
| Modello | F4 |
| Year | 2015 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Unwinder type | Single shaftless AC motor driven |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Single AC motor driven |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones drying system. 2 gas burners 4 fans |
| Videocamera | Grafikontrol |
| Corona treatment | Ahlbrandt |
| Web guides | yes |
| Vyscosity control | Automatic viscosity control |
| Washing system | Automatic washing system |
| Inking system | Closed chamber doctor blades |
