Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1189
- Manufacturer
- BOBST FISCHER & KRECKE
- Modello
- 15S
- Year
- 2010
- Number of colors
- 8
- Print possibilityes
- 8 colors. Re print and in register print insetter possible
- Overhaul/renovation
- PLC Siemens in 2022. Videocamera year 2021
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 370
- Max print repeat (mm)
- 880
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones drying system. 2 gas burners 4 fans

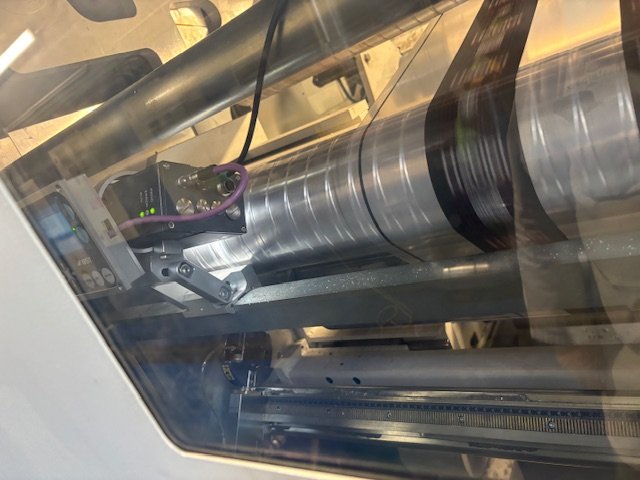

- Videocamera
- Grafikontrol 2021 with print defect control
- Corona treatment
- Mero
- Web guides
- BST with edge control and camera for print edge control
- Vyscosity control
- Automatic viscosity control, Fasnacht
- Washing system
- Automatic washing system
- Inking system
- Closed chamber doctor blades
- Anilox
- 22
- Print Sleeves
- 48 print sleeves. 3 sets of 8 adaptors: 8x130mm, 8x168mm, 8x229mm
- Note
- - GPS system for fast print pressure and register setting after job change - IncludingGPS plate mounter with plate scanning
| Machine Code | FL1189 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | 15S |
| Year | 2010 |
| Number of colors | 8 |
| Print possibilityes | 8 colors. Re print and in register print insetter possible |
| Overhaul/renovation | PLC Siemens in 2022. Videocamera year 2021 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 370 |
| Max print repeat (mm) | 880 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones drying system. 2 gas burners 4 fans |
| Videocamera | Grafikontrol 2021 with print defect control |
| Corona treatment | Mero |
| Web guides | BST with edge control and camera for print edge control |
| Vyscosity control | Automatic viscosity control, Fasnacht |
| Washing system | Automatic washing system |
| Inking system | Closed chamber doctor blades |
| Anilox | 22 |
| Print Sleeves | 48 print sleeves. 3 sets of 8 adaptors: 8x130mm, 8x168mm, 8x229mm |
| Note | - GPS system for fast print pressure and register setting after job change - IncludingGPS plate mounter with plate scanning |
