** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1170
- Manufacturer
- BOBST FISCHER & KRECKE
- Modello
- FK 15 S
- Year
- 2011
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1285
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 880

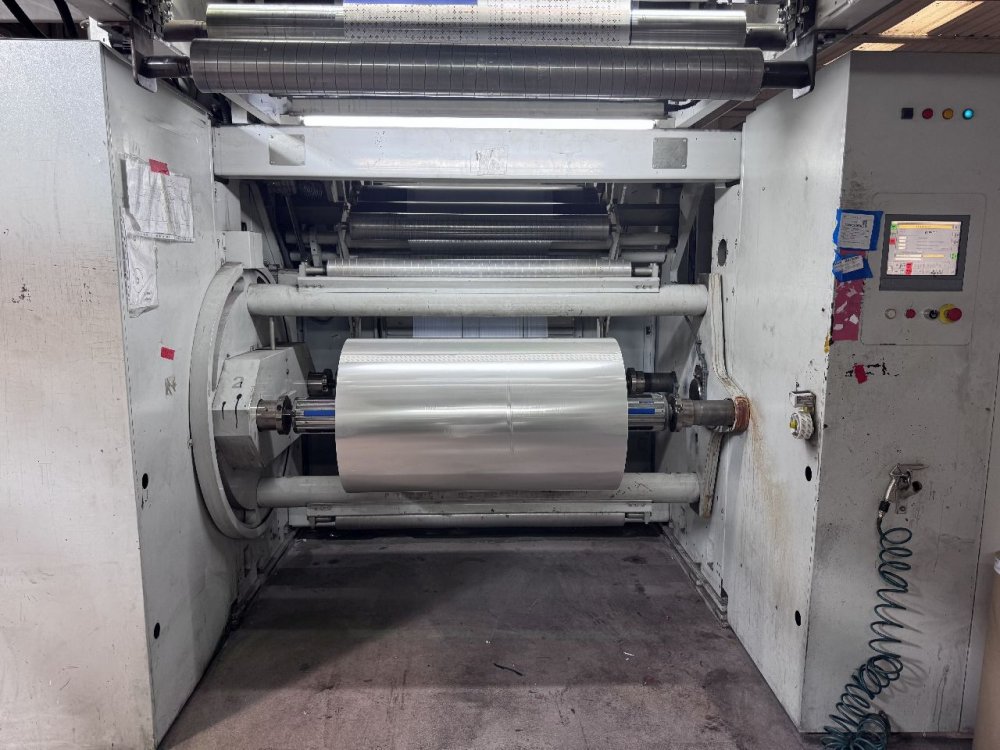

- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners

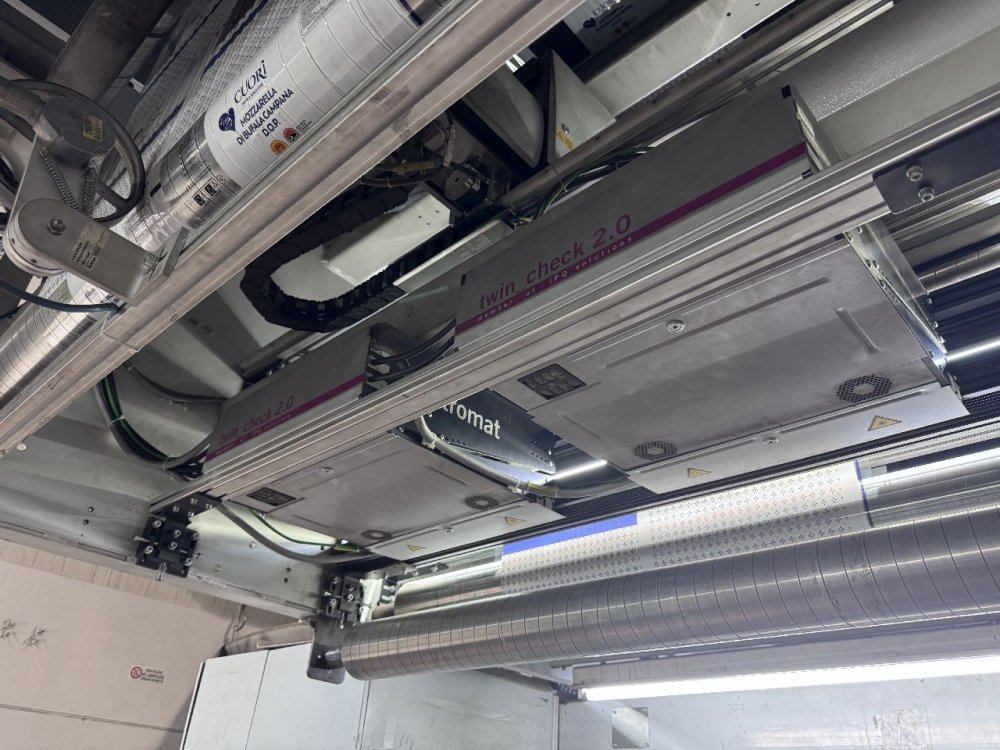

- Videocamera
- BST - 100% inspection and defect control system
- Corona treatment
- Yes, Me.ro
- Web guides
- Yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 4 anilox 340 L/cm -Vol.5 ; 1x 120 L/cm-vol.8.5 ; 2x 240 L/cm-vol. 8 , 1x120 L/cm-vol.12
- Print Sleeves
- 1set
- Note
- Plate mounter with Smart GPS system Automatic register control Automatic printing pressure setting
| Machine Code | FL1170 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | FK 15 S |
| Year | 2011 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1285 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 880 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners |
| Videocamera | BST - 100% inspection and defect control system |
| Corona treatment | Yes, Me.ro |
| Web guides | Yes in and out |
| Vyscosity control | Yes |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 4 anilox 340 L/cm -Vol.5 ; 1x 120 L/cm-vol.8.5 ; 2x 240 L/cm-vol. 8 , 1x120 L/cm-vol.12 |
| Print Sleeves | 1set |
| Note | Plate mounter with Smart GPS system Automatic register control Automatic printing pressure setting |
