** SOLD **

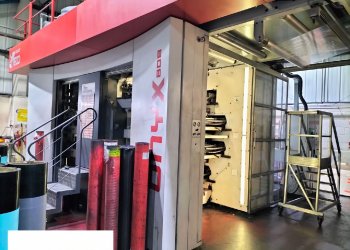

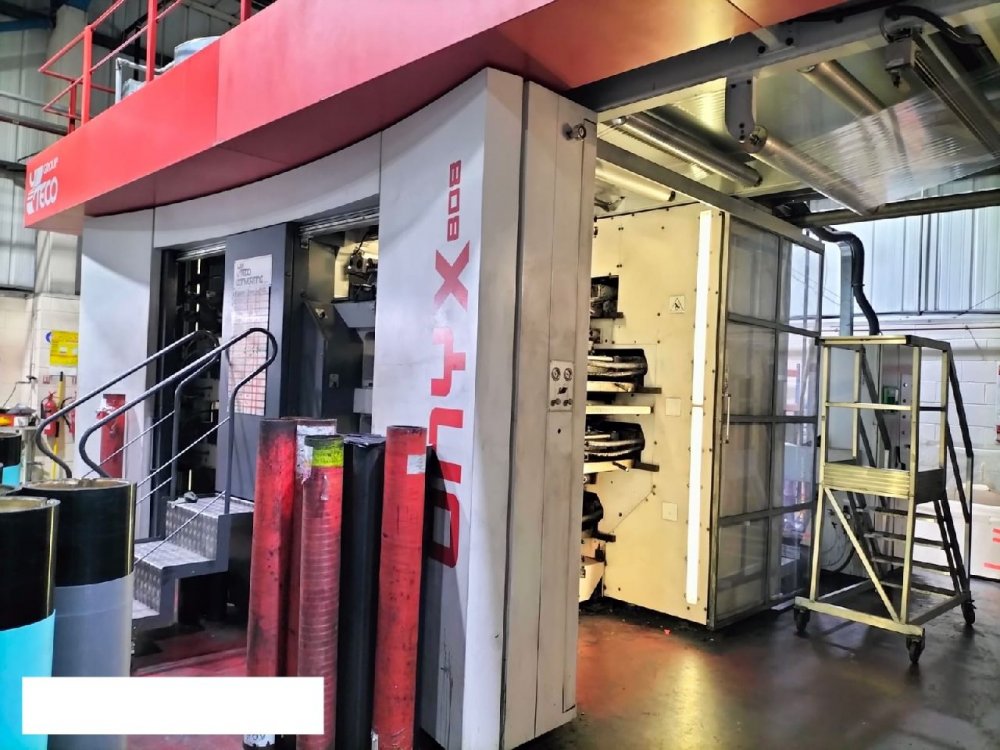

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
about a similar one
- Machine Code
- FL1138
- Manufacturer
- UTECO
- Modello
- ONYX 808
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800

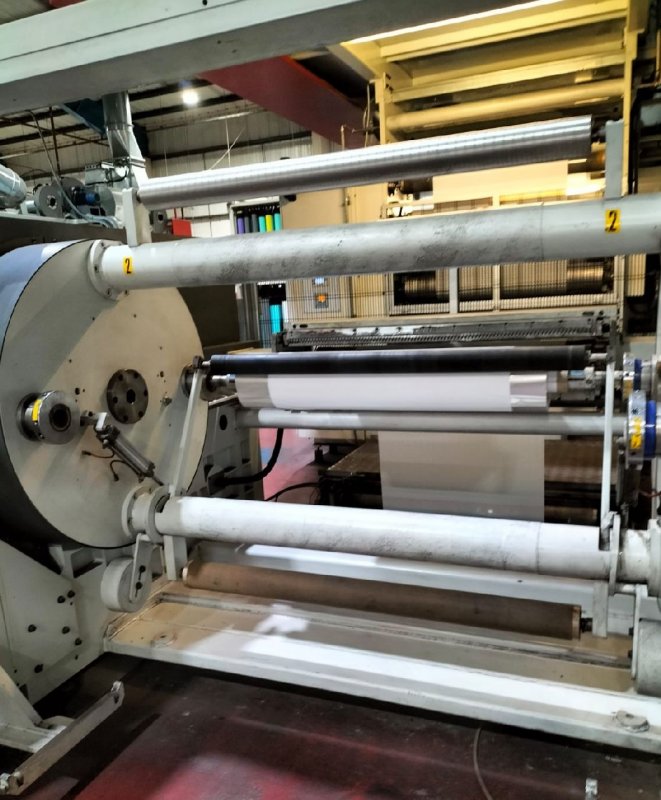

- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 ZONES 4 FANS- FINAL DRYING TUNNEL 4 MT - 2 GAS BURNERS- AUTOMATIC AIR RECIRCULATING SYSTEM WITH LEL control
- Videocamera
- Yes Grafykontrol with auto register control " Click& Drag"
- Web guides
- yes in and out Fife OPG
- Vyscosity control
- Yes
- Washing system
- Yes Automatic uteco Sprint wash system
- Inking system
- Closed chamber doctor blades
- Anilox
- 10 ceramic anilox sleeves
- Print Sleeves
- 3 sets
- Note
- Touch & Go Print setting system
| Machine Code | FL1138 |
| Manufacturer | UTECO |
| Modello | ONYX 808 |
| Year | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 ZONES 4 FANS- FINAL DRYING TUNNEL 4 MT - 2 GAS BURNERS- AUTOMATIC AIR RECIRCULATING SYSTEM WITH LEL control |
| Videocamera | Yes Grafykontrol with auto register control " Click& Drag" |
| Web guides | yes in and out Fife OPG |
| Vyscosity control | Yes |
| Washing system | Yes Automatic uteco Sprint wash system |
| Inking system | Closed chamber doctor blades |
| Anilox | 10 ceramic anilox sleeves |
| Print Sleeves | 3 sets |
| Note | Touch & Go Print setting system |
