** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1083
- Manufacturer

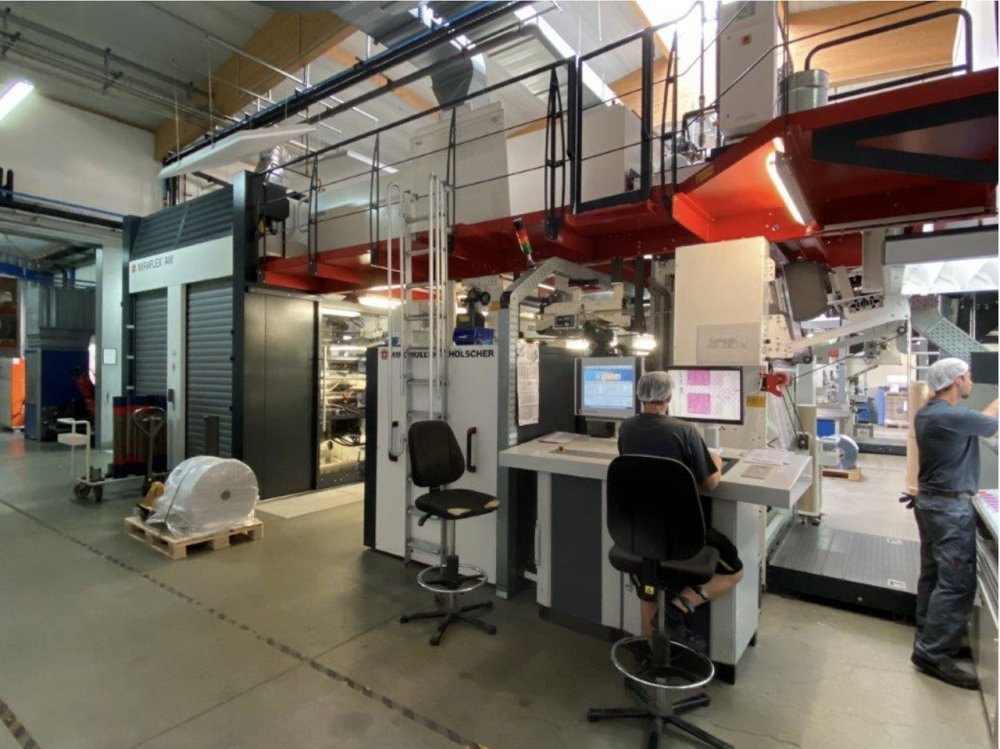

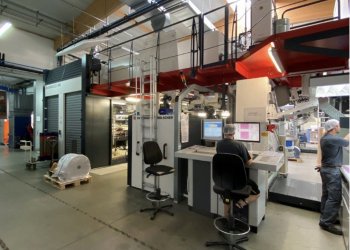

- WINDMÖLLER & HÖLSCHER
- Modello

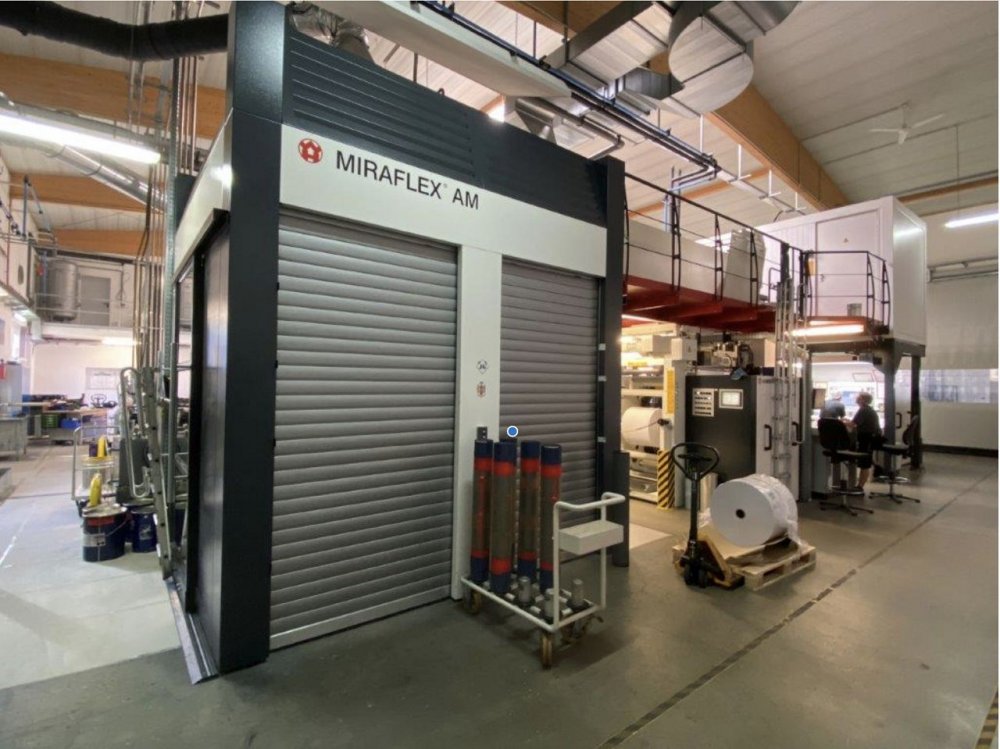

- MIRAFLEX
- Year
- 2010
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic with a roll lifter
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with a roll lifter
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans 2 gas burners AUTOMATIC recirculaton control with LEL CONTROL ZELLWEGER SYSTEM
- Videocamera
- Yes
- Corona treatment
- Corona treater - 38 - 40 mN/m (dyn)
- Web guides
- Yes in and out BST
- Vyscosity control
- Yes automatic Procontrol
- Washing system
- AUTOMATIC WASH UP SYSTEM turboclean400 and Yamada pumps
- Anilox
- 30 ceramic anilox sleeves
- Note
- insetter register control LEL SENSORS Machine Speed Max. 370m/min EASY SET automatic Printing setting EASY REG automatic adj. of long. and side registers
| Machine Code | FL1083 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | MIRAFLEX |
| Year | 2010 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic with a roll lifter |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with a roll lifter |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans 2 gas burners AUTOMATIC recirculaton control with LEL CONTROL ZELLWEGER SYSTEM |
| Videocamera | Yes |
| Corona treatment | Corona treater - 38 - 40 mN/m (dyn) |
| Web guides | Yes in and out BST |
| Vyscosity control | Yes automatic Procontrol |
| Washing system | AUTOMATIC WASH UP SYSTEM turboclean400 and Yamada pumps |
| Anilox | 30 ceramic anilox sleeves |
| Note | insetter register control LEL SENSORS Machine Speed Max. 370m/min EASY SET automatic Printing setting EASY REG automatic adj. of long. and side registers |
