** SOLD **

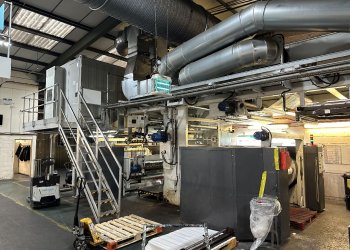

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL1080
- Manufacturer
- UTECO
- Modello
- ONYX 808 GL 130
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Automatic turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 Drying zones, 4 fans, 5 mt final tunnel , 2 Gas burners , automatic air recirculation with LEL
- Videocamera
- Yes Grafikontrol with defect control. 3 chip camera + 100% inspection
- Web guides
- Yes
- Vyscosity control
- Yes GAMA
- Washing system
- Auto clean
- Inking system
- Solvent-water based
- Anilox
- 28 ceramic anilox sleeves as follows :6 x 470 L/cm -vol.4; 3 x 470 L/cm-vol.3,75 ; 9 x 275 L/cm, vol 8 ; 1 x 250 L/cm ; 3x 240 L/cm ; 1x 220 L/cm- Vol.9,5; 1x 200 L/cm;-Vol.9 ; 1x 180 L/cm-Vol.9,5 ; 1x 160 L/cm- Vol.14 ; 1x 160 L/cm-vol.9,5; 1x 120 L/cm-vol..16
- Print Sleeves
- 111 as follows : 16 x 340 mm, 8x360 mm; 8c490 , 16x 520 ; 8x 560 ; 8x 600 ; 8x 620 ; 16x 640 , 8x 660 , 8x 680 ;7x 760 .
| Machine Code | FL1080 |
| Manufacturer | UTECO |
| Modello | ONYX 808 GL 130 |
| Year | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Automatic turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 Drying zones, 4 fans, 5 mt final tunnel , 2 Gas burners , automatic air recirculation with LEL |
| Videocamera | Yes Grafikontrol with defect control. 3 chip camera + 100% inspection |
| Web guides | Yes |
| Vyscosity control | Yes GAMA |
| Washing system | Auto clean |
| Inking system | Solvent-water based |
| Anilox | 28 ceramic anilox sleeves as follows :6 x 470 L/cm -vol.4; 3 x 470 L/cm-vol.3,75 ; 9 x 275 L/cm, vol 8 ; 1 x 250 L/cm ; 3x 240 L/cm ; 1x 220 L/cm- Vol.9,5; 1x 200 L/cm;-Vol.9 ; 1x 180 L/cm-Vol.9,5 ; 1x 160 L/cm- Vol.14 ; 1x 160 L/cm-vol.9,5; 1x 120 L/cm-vol..16 |
| Print Sleeves | 111 as follows : 16 x 340 mm, 8x360 mm; 8c490 , 16x 520 ; 8x 560 ; 8x 600 ; 8x 620 ; 16x 640 , 8x 660 , 8x 680 ;7x 760 . |
