** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1078
- Manufacturer
- UTECO
- Modello
- ONYX 876
- Year
- 2010
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800

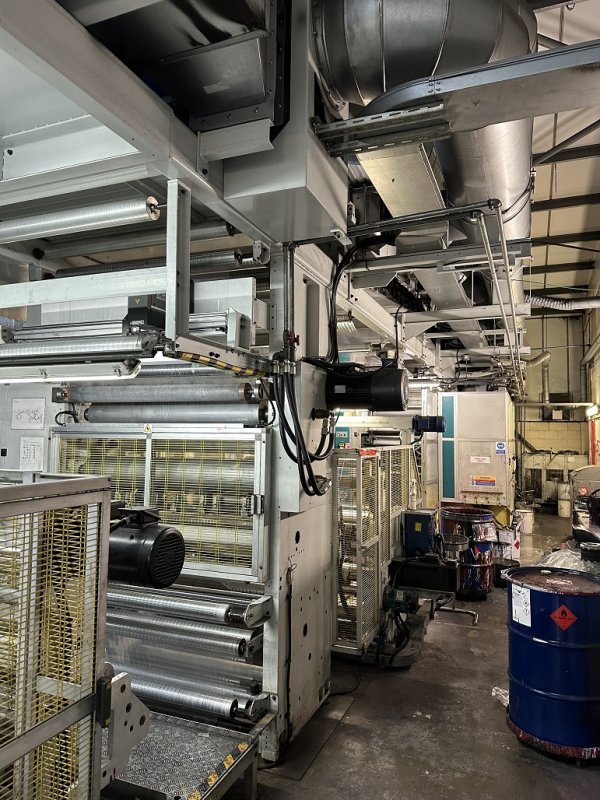

- Drying
- 2 zones (print unit and tunnel), 4 fans, 2 gas burners. Drying tunnel with 2 hoods 6 mt

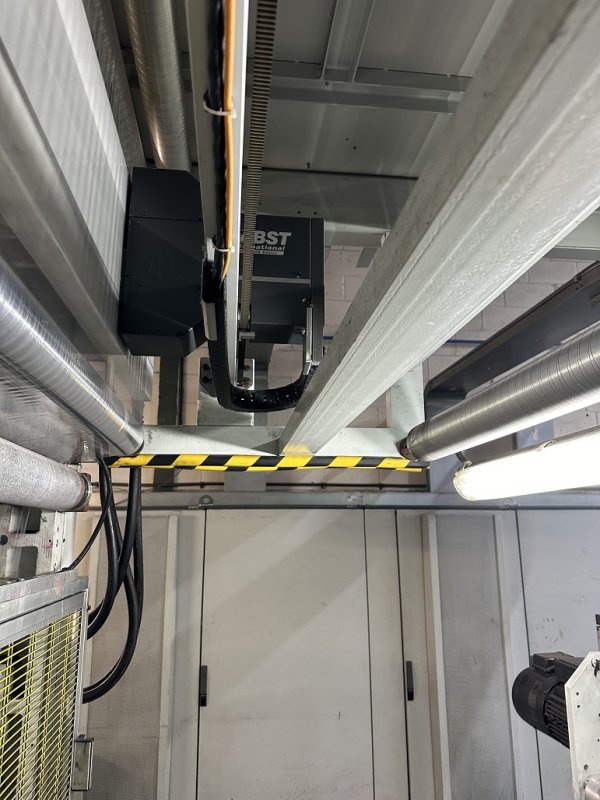

- Videocamera
- BST
- Web guides
- BST EKR 500
- Inking system
- Close chamber doctor blades
- Anilox
- 16
- Print Sleeves
- approx 190
- Note
- Mechanical speed 365 m/min frigosystem chiller Operational LEL system Inline slitting
| Machine Code | FL1078 |
| Manufacturer | UTECO |
| Modello | ONYX 876 |
| Year | 2010 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones (print unit and tunnel), 4 fans, 2 gas burners. Drying tunnel with 2 hoods 6 mt |
| Videocamera | BST |
| Web guides | BST EKR 500 |
| Inking system | Close chamber doctor blades |
| Anilox | 16 |
| Print Sleeves | approx 190 |
| Note | Mechanical speed 365 m/min frigosystem chiller Operational LEL system Inline slitting |
