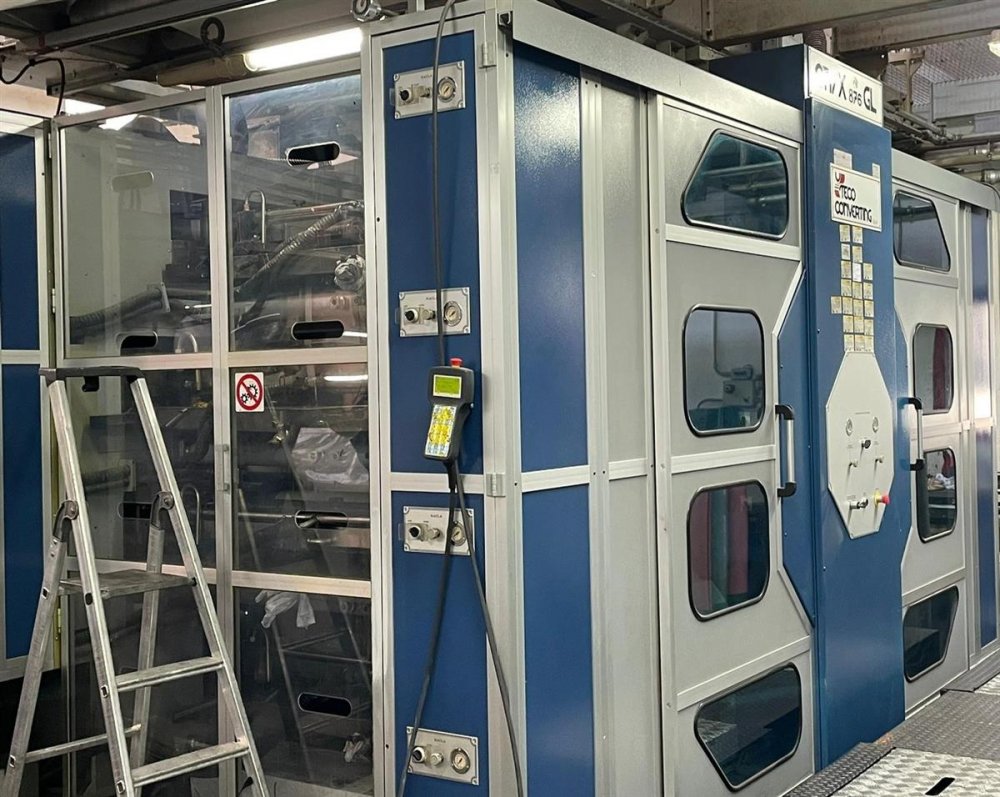

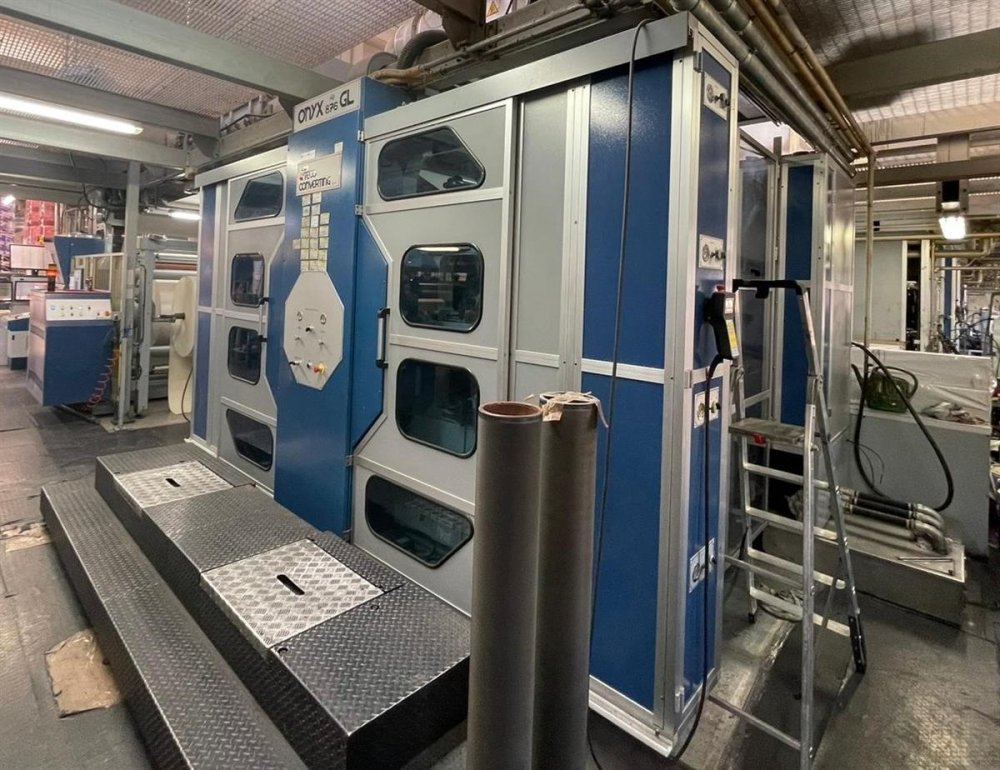

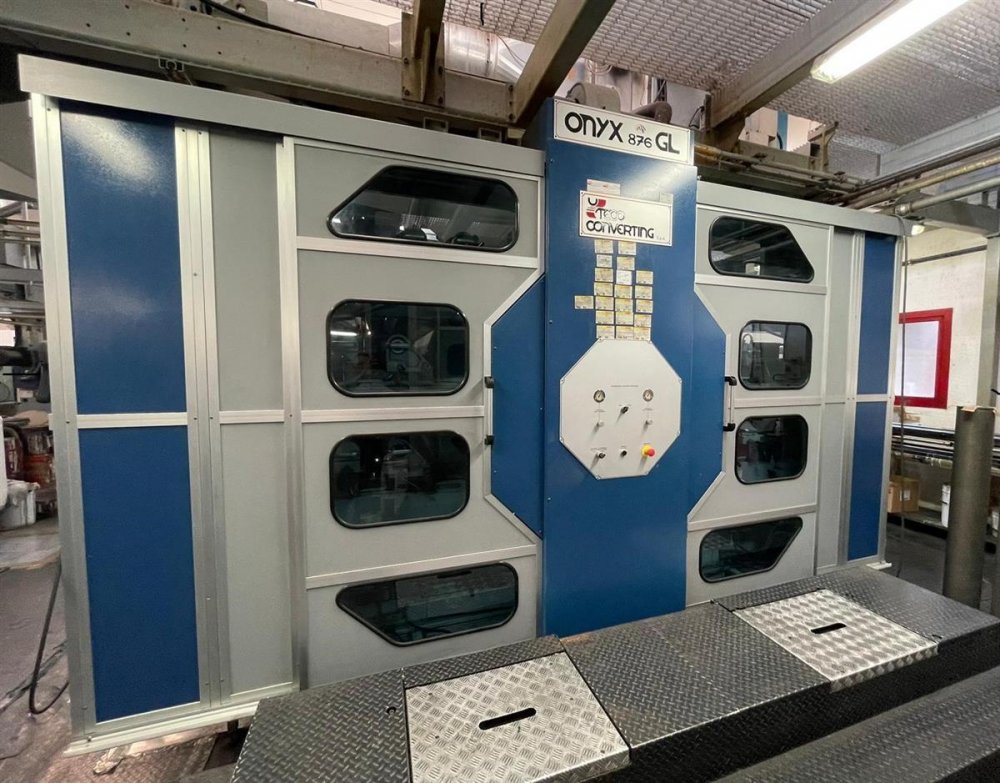

UTECO ONYX 876 flexo press 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
Machine Code
FL1041
Manufacturer
UTECO
Modello
ONYX 876
Year
2010
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1350
Print width (mm)
1300
Min print repeat (mm)
380
Max print repeat (mm)
800
Unwinder type
Turret automatic non stop
Max reel diameter unwinder (mm)
1000

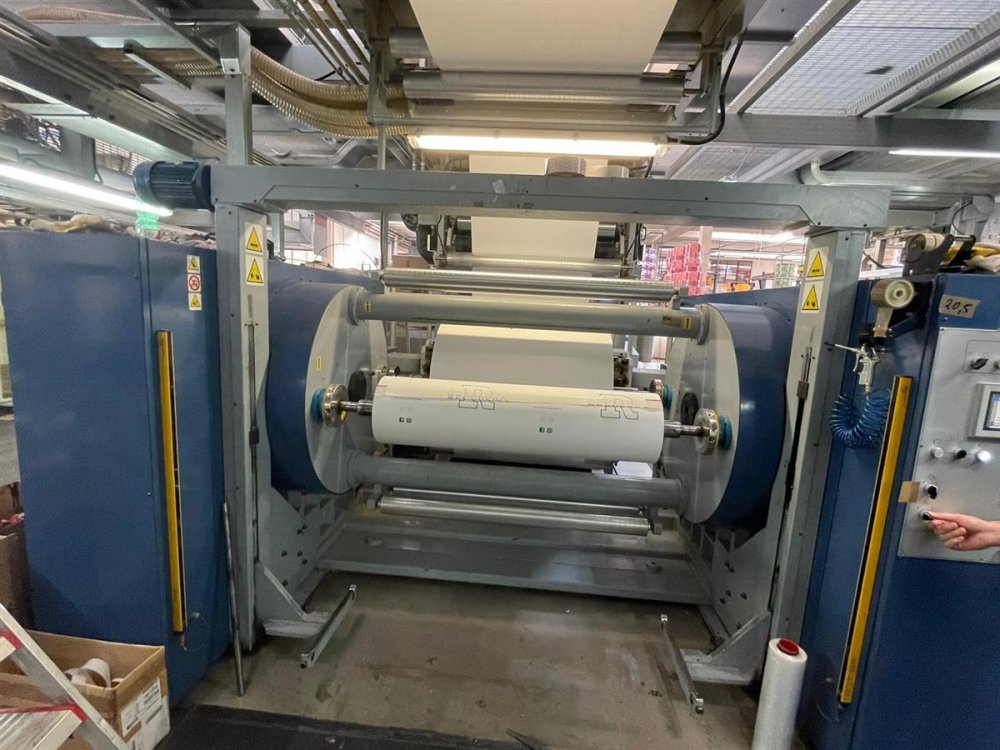

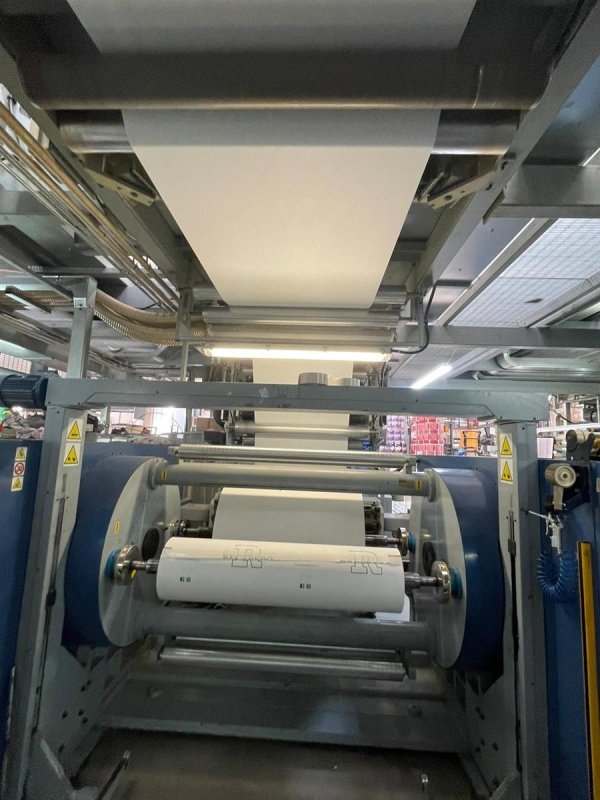

Rewinder type
Turret automatic non stop
Max reel diameter rewinder (mm)
1000
Drying
2 zones 4 fans 4 final tunnel 4 mt long 2 gas burners
Videocamera
BST
Web guides
yes in and out
Washing system
Yes included
Inking system
Cloased chamber doctor blades
Anilox
12
Machine Code FL1041
Manufacturer UTECO
Modello ONYX 876
Year 2010
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 380
Max print repeat (mm) 800
Unwinder type Turret automatic non stop
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic non stop
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans 4 final tunnel 4 mt long 2 gas burners
Videocamera BST
Web guides yes in and out
Washing system Yes included
Inking system Cloased chamber doctor blades
Anilox 12
