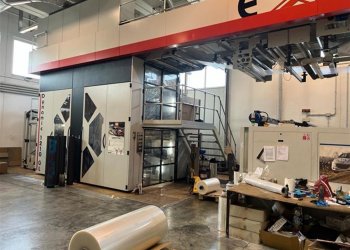

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1033
- Manufacturer
- EXPERT
- Modello
- DYNAMIC 10
- Year
- 2016
- Number of colors
- 10
- Print possibilityes
- 10+0 , 5+5 , 10+10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1550
- Print width (mm)
- 1500
- Min print repeat (mm)
- 540
- Max print repeat (mm)
- 1250
- Unwinder type
- Turret Automatic auto splic e bidirectional
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic auto splic e bidirectional
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones final tunnel 6 mt 2 gas burners
- Videocamera
- yes BST with auto register
- Web guides
- yes in and out

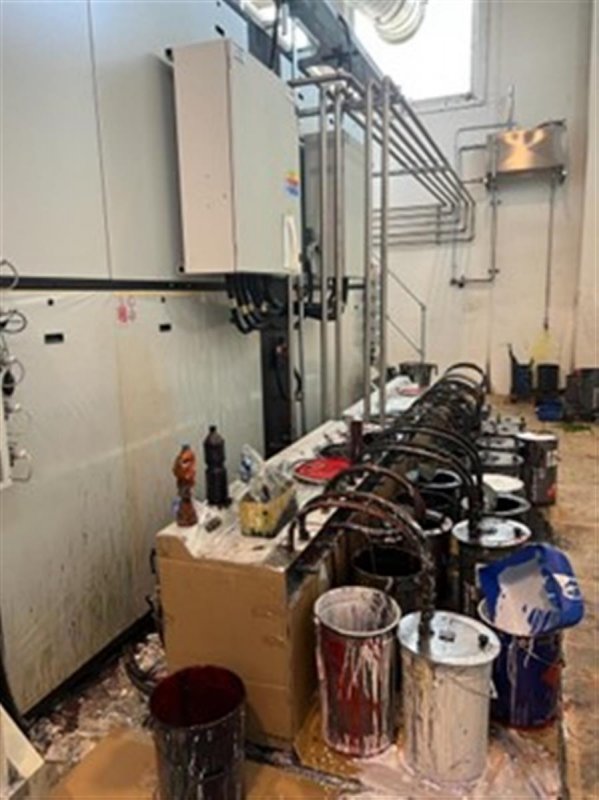

- Vyscosity control
- yes
- Washing system
- yes
- Anilox
- 24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2
- Note

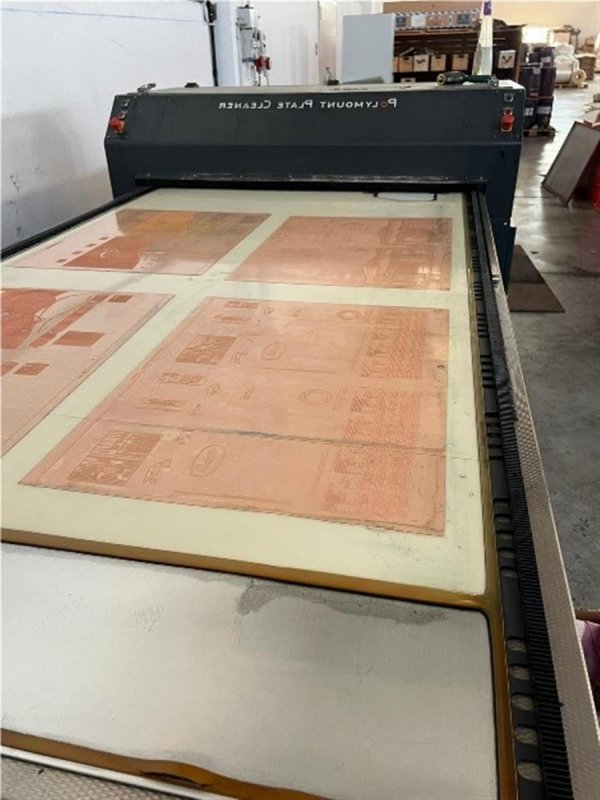

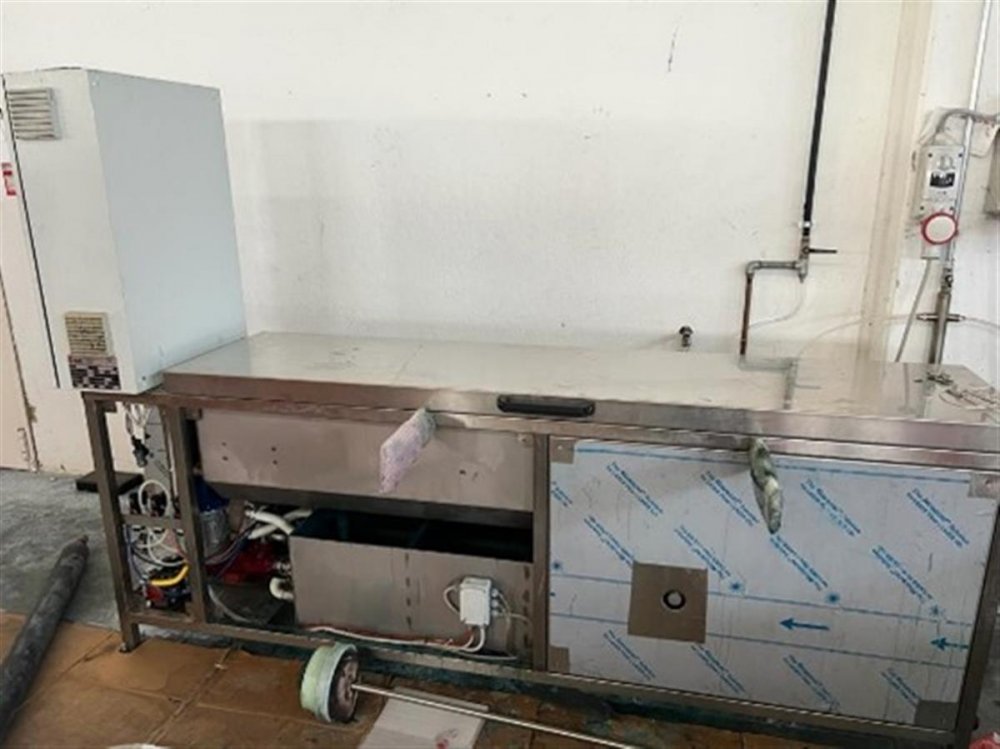

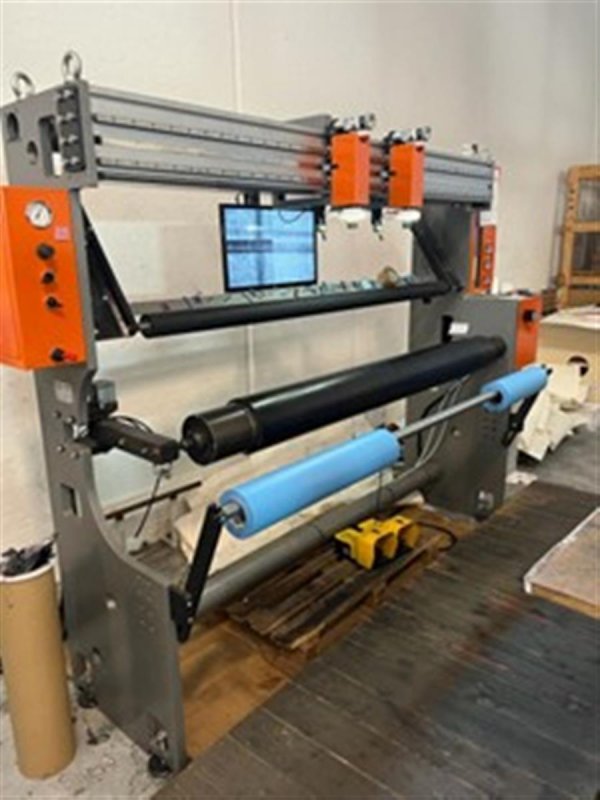

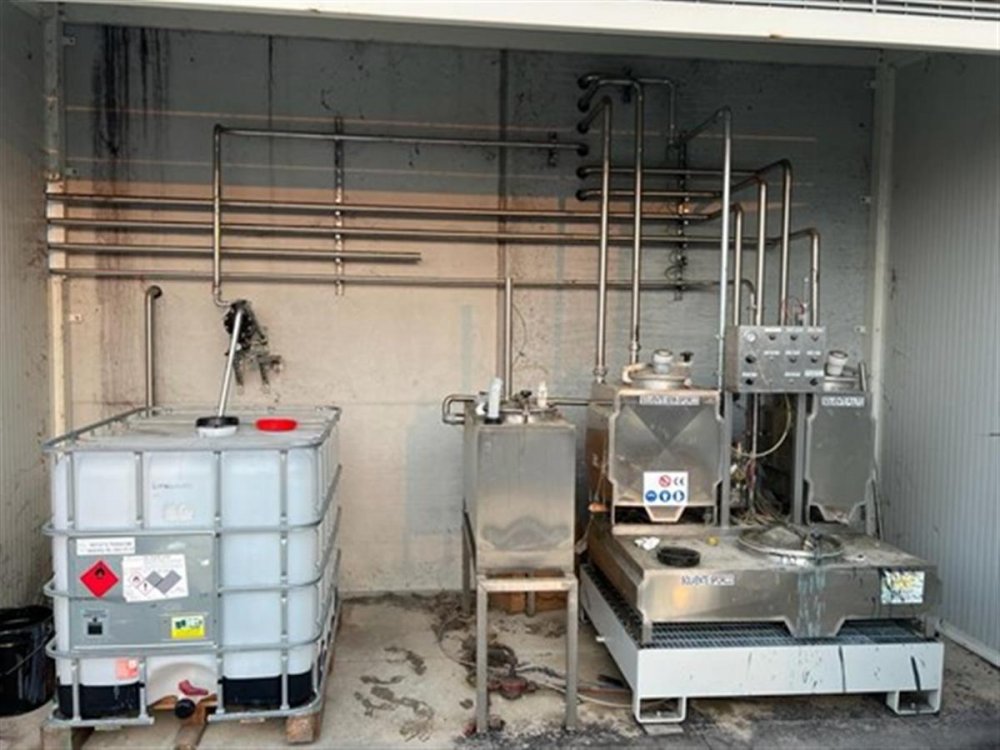

- Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller
Machine Code | FL1033 |
Manufacturer | EXPERT |
Modello | DYNAMIC 10 |
Year | 2016 |
Number of colors | 10 |
Print possibilityes | 10+0 , 5+5 , 10+10 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1550 |
Print width (mm) | 1500 |
Min print repeat (mm) | 540 |
Max print repeat (mm) | 1250 |
Unwinder type | Turret Automatic auto splic e bidirectional |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Turret Automatic auto splic e bidirectional |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones final tunnel 6 mt 2 gas burners |
Videocamera | yes BST with auto register |
Web guides | yes in and out |
Vyscosity control | yes |
Washing system | yes |
Anilox | 24 ceramic anilox sleeves? N° 4 x 500 l/cm - 3,5 cm3/m2 ; 8 x 360 l/cm - 5 cm3/m2 ; 2 x 280 l/cm – 6,5 cm3/m2; 2 x 220 l/cm - 7 cm3/m2; ° 2 x 200 l/cm - 9 cm3/m2 ; 1 x 180 l/cm - 10 cm3/m2 ; 1 x 160 l/cm - 11 cm3/m2;3 x 140 l/cm - 12,5 cm3/m2 ; 2 x 80L/cm 13 cm3/m2 |
Note | Turning bar full width 5+5 Turning bar half width 10+10 Register control for reprint and driven infeed roll Plate mounter Plate washing machine Anilox wash machine Solvent distiller |
