** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL1018
- Manufacturer

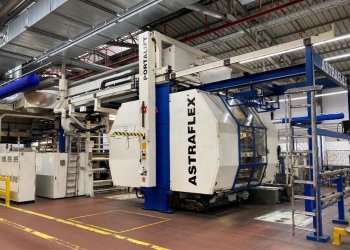

- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Year
- 2005
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 820
- Unwinder type
- Turret automatic and shaftless, chucks ofr cores 70 + 76mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic and shaftless, chucks ofr cores 70 + 76mm
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 thermal oil heat exchangers
- Videocamera
- AVT
- Vyscosity control
- automatic, Bloss
- Washing system
- Turbo-wash automatic washing system¨
- Inking system
- Closed chamber doctor blades
- Note
- - Portalift: Robot system for anilox and mandrel change - Mechanical speed 460 m/min - In line slitting system
| Machine Code | FL1018 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Year | 2005 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 820 |
| Unwinder type | Turret automatic and shaftless, chucks ofr cores 70 + 76mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic and shaftless, chucks ofr cores 70 + 76mm |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 thermal oil heat exchangers |
| Videocamera | AVT |
| Vyscosity control | automatic, Bloss |
| Washing system | Turbo-wash automatic washing system¨ |
| Inking system | Closed chamber doctor blades |
| Note | - Portalift: Robot system for anilox and mandrel change - Mechanical speed 460 m/min - In line slitting system |
