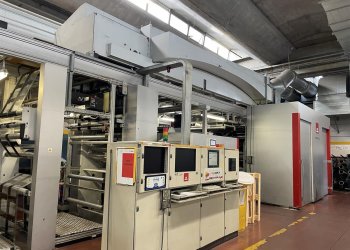

COMEXI FB flexo press 8 colors

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
Machine Code
FL1014
Manufacturer
COMEXI
Model
FB
Year
2003
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1200
Print width (mm)
1240
Min print repeat (mm)
400
Max print repeat (mm)
800
Unwinder type
Turret automatic non stop
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret automatic non stop
Max reel diameter rewinder (mm)
1000
Drying
2 zones 4 fans - Final tunnel 4.5 mt , thermo oil heat exchangers ,
Videocamera
YES by AVT Jupiter with defekt control
Web guides
Yes in and out
Vyscosity control
Yes automatic INELME
Washing system
Yes automatic Enviroxi
Inking system
Closed chamber doctor blades tot. 12
Additional information
In line slitting at rewinder
Machine Code FL1014
Manufacturer COMEXI
Model FB
Year 2003
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1200
Print width (mm) 1240
Min print repeat (mm) 400
Max print repeat (mm) 800
Unwinder type Turret automatic non stop
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic non stop
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans - Final tunnel 4.5 mt , thermo oil heat exchangers ,
Videocamera YES by AVT Jupiter with defekt control
Web guides Yes in and out
Vyscosity control Yes automatic INELME
Washing system Yes automatic Enviroxi
Inking system Closed chamber doctor blades tot. 12
Additional information In line slitting at rewinder
