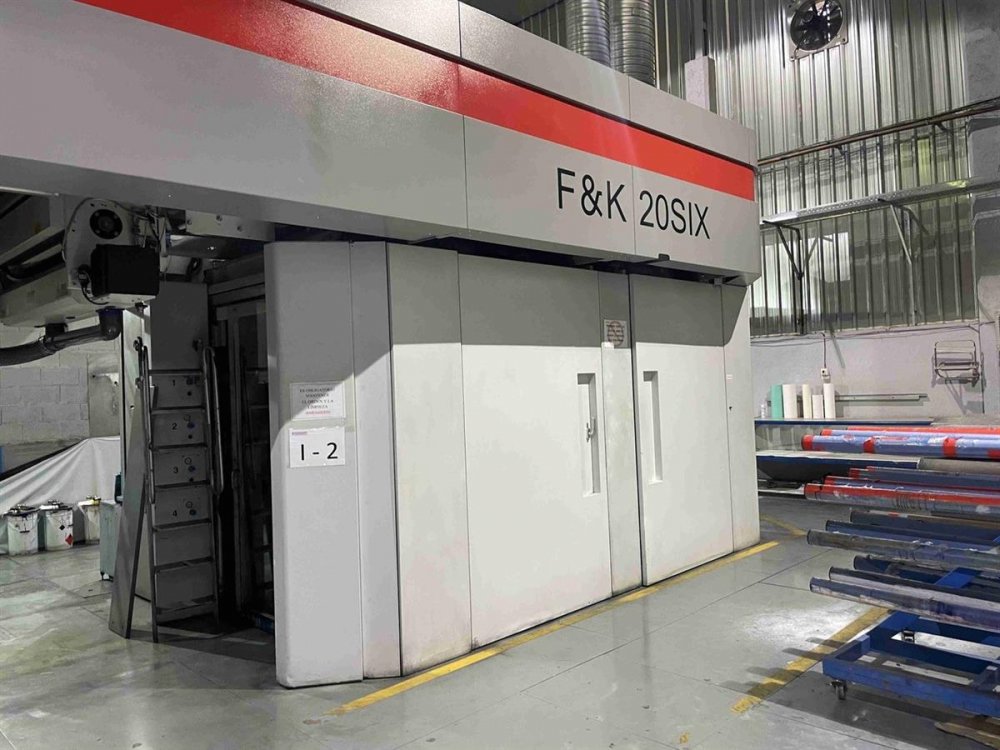

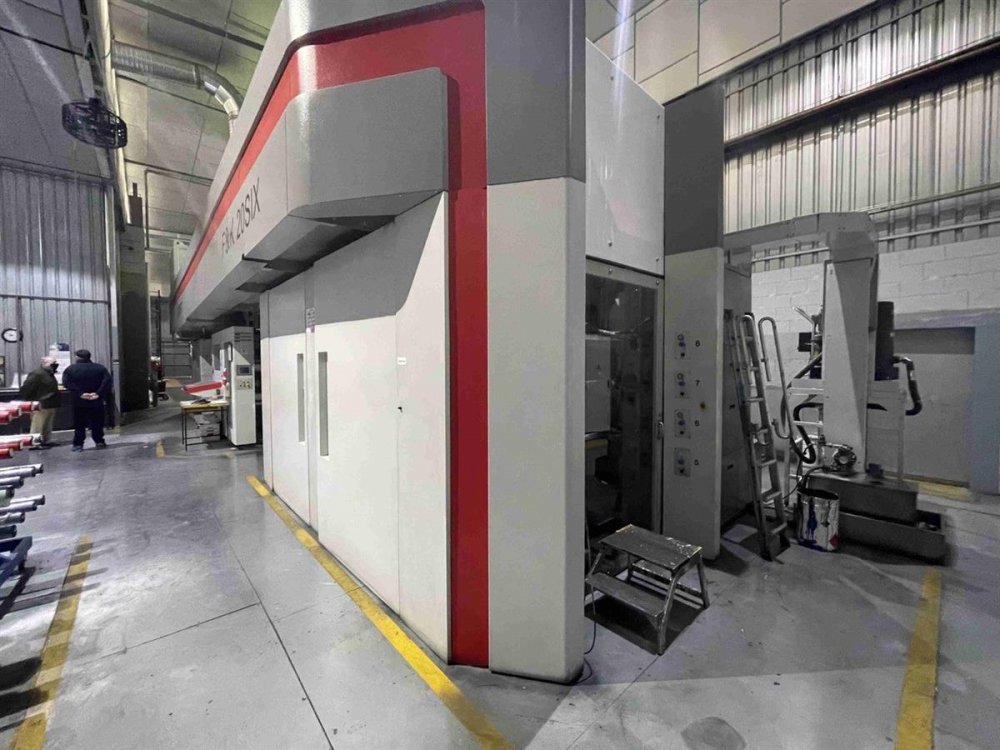

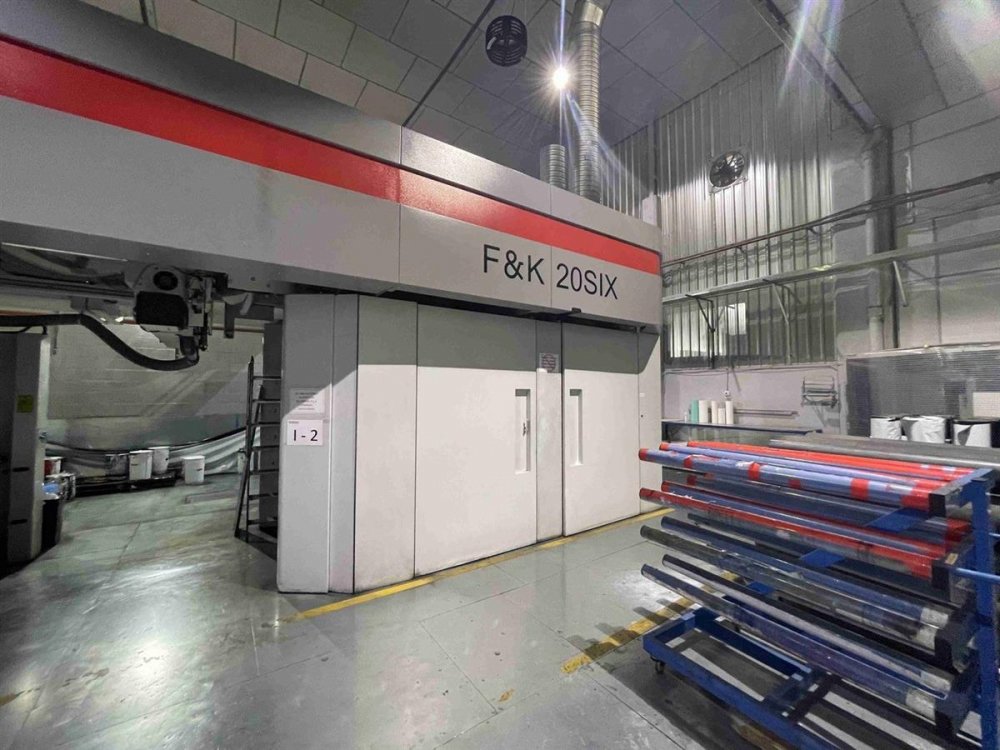

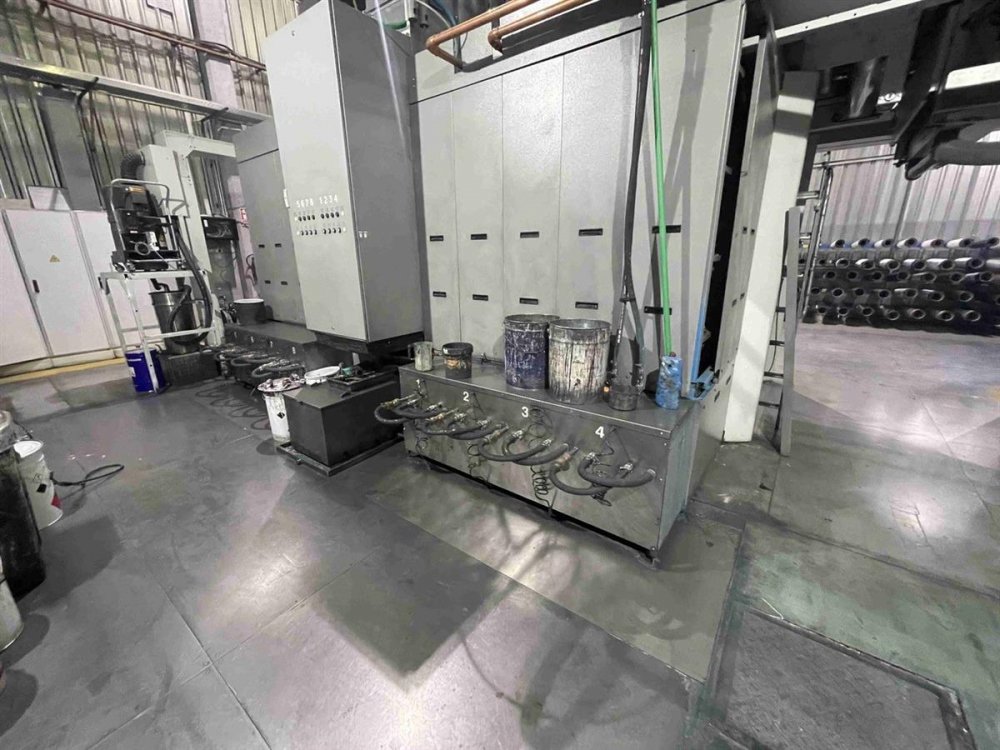

BOBST FISCHER & KRECKE 20 SIX S flexo press 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL975
Manufacturer BOBST FISCHER & KRECKE
Model 20 SIX S
Year 2014
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1300
Print width (mm) 1250
Min print repeat (mm) 320
Max print repeat (mm) 800

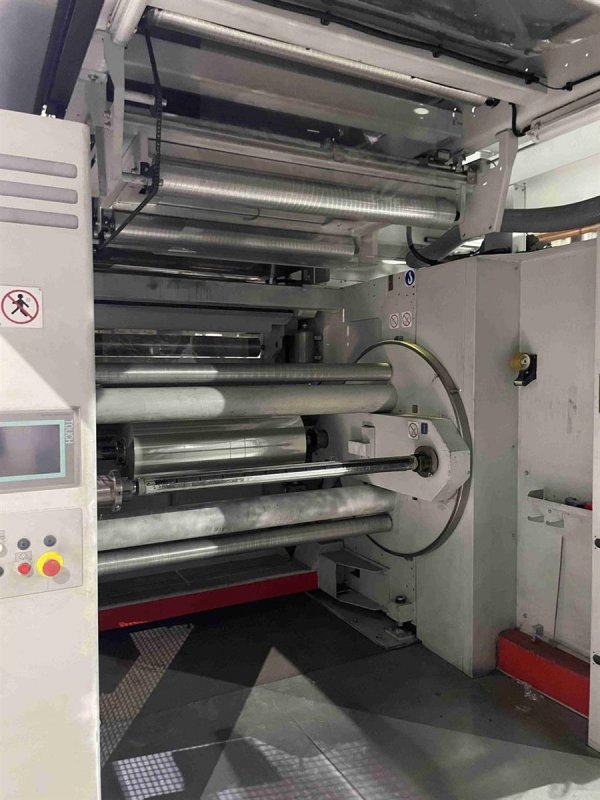

Unwinder type Double automatic
Max reel diameter unwinder (mm) 1200

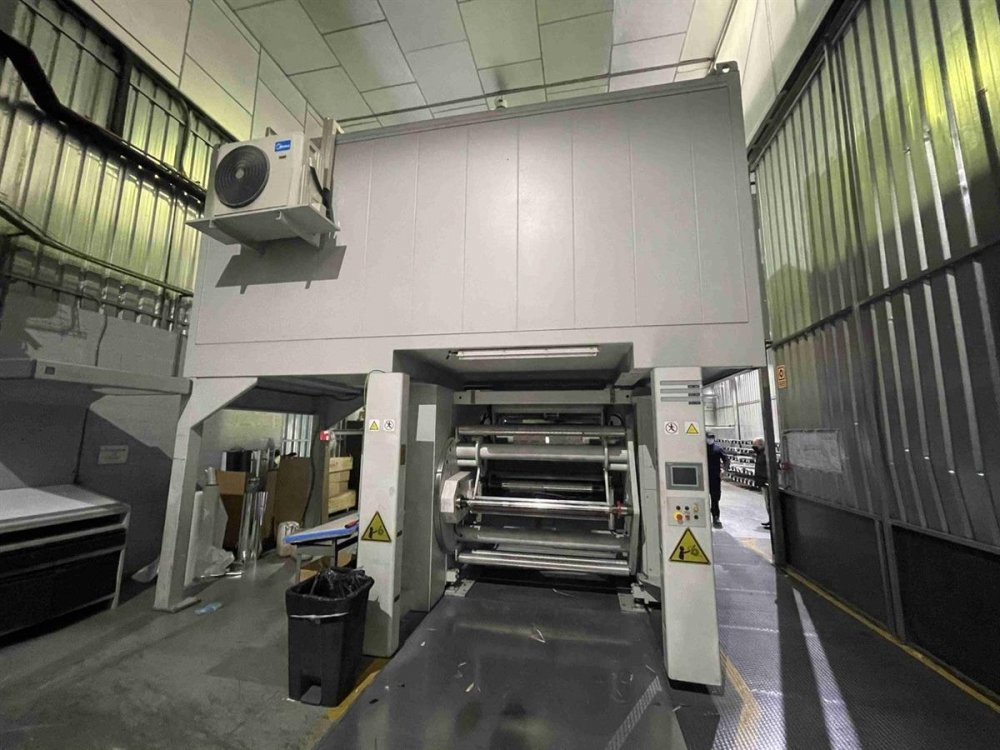

Rewinder type Double automatic
Max reel diameter rewinder (mm) 1020
Drying Electric

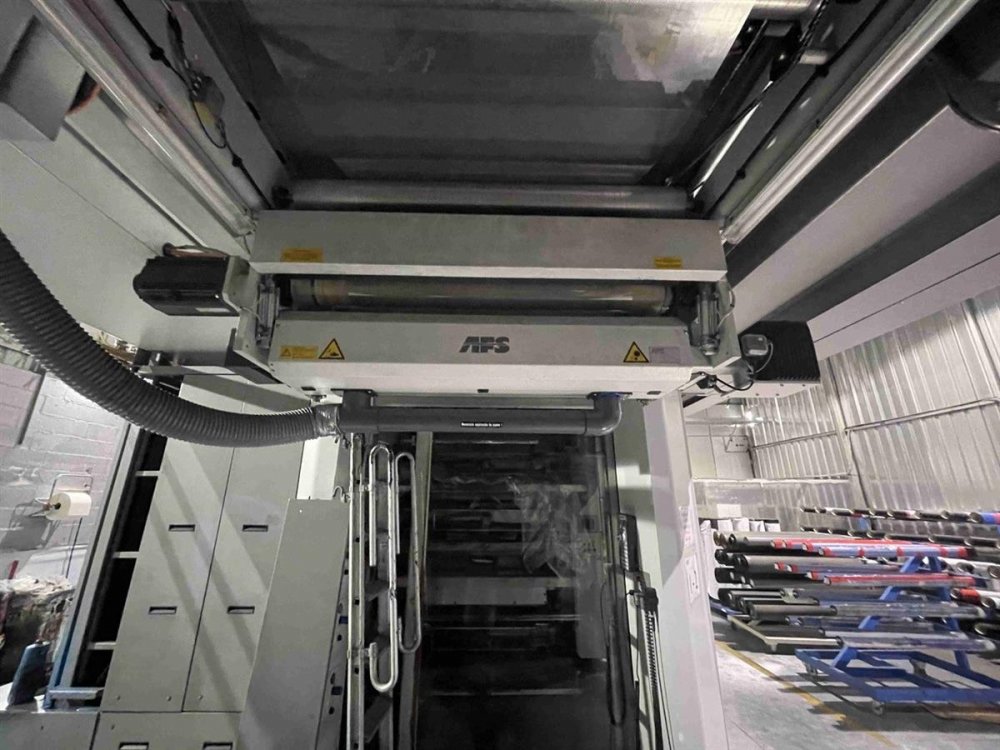

Videocamera Yes
Web guides Yes
Vyscosity control Yes
Washing system Yes, automatic
Inking system Closed chamber doctor blades
Anilox 20, ceramic anilox sleeves as follows 6x 400 L/cm-vol3,7 ; 1x 400 L/cm-vol.3,5; 2x 340 L/cm-vol.6,1 ; 1x 340 L/cm.-vol.4,9; 2x 280 L/cm-vol.7,2; 2x 200 L/cm-vol.9,0 ; 1x 200 L/cm-vol.8,5 ; 1x 180 L/cm-vol.10,7; 1x 160 L/cm-vol.11,6 ; 1x 140 L/cm-vol.16,8 ; 1x 100 L/cm-vol.15,0; 1x 80 L/cm-vol. 20,6 ;
Print Sleeves 228 as follows 8 for each following repeat : 320mm, 330 , 340, 350 , 360 , 370 , 380 , 390 , 400 , 410 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 540 , 550 , 560 , 580 , 600 , 620 , 650

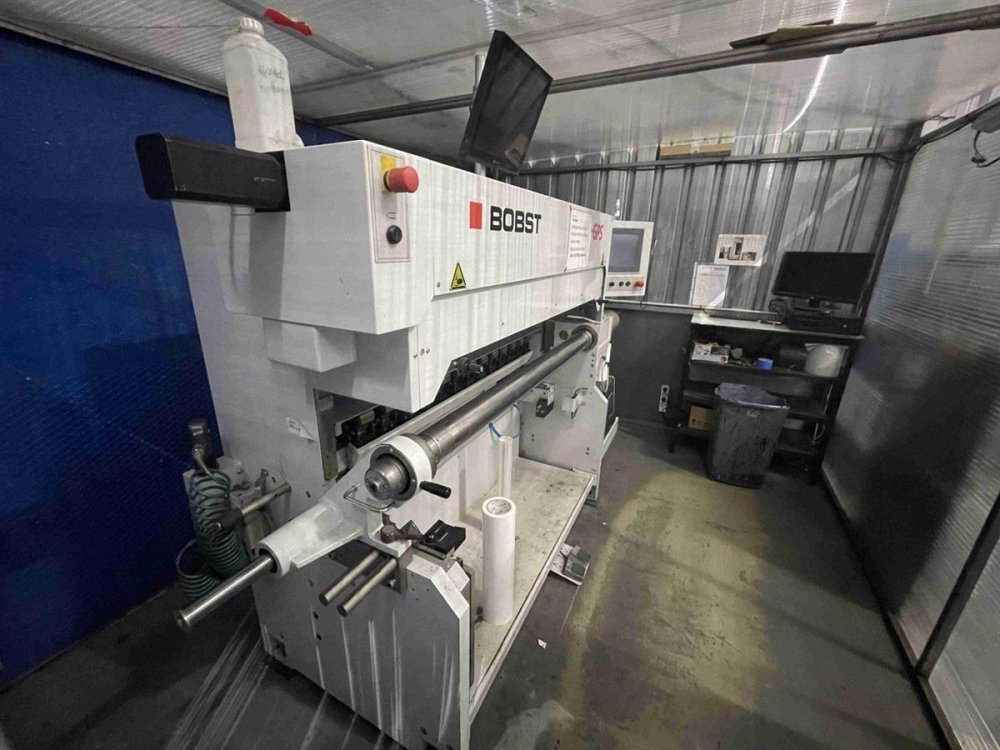

Additional information Speed 500 mt/min Smart GPS register system including Plate Mounter
