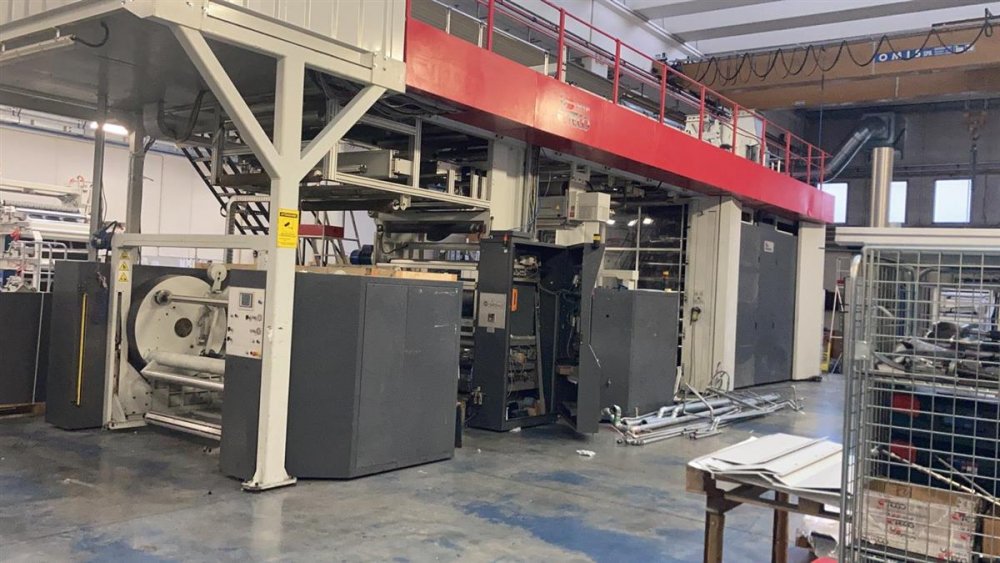

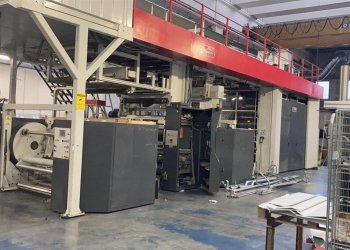

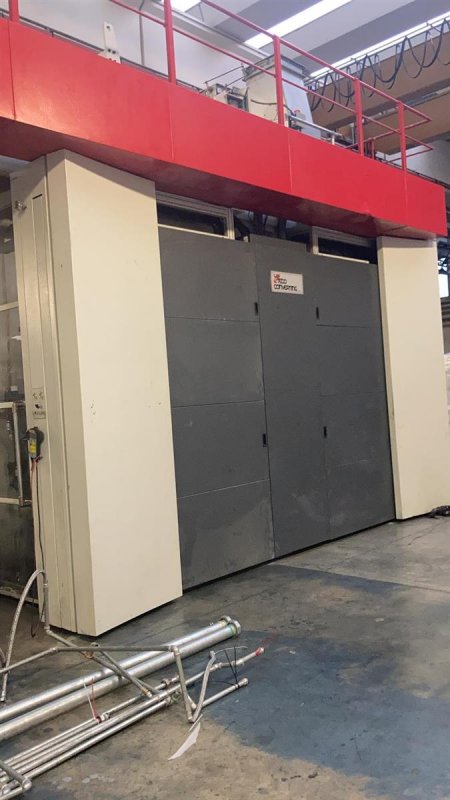

UTECO ONYX 108 Flexo printer 10 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL926
Manufacturer
UTECO
Modello
ONYX 108
Year
2013
Number of colors
10
Print possibilityes
10 +0
Gearless
Yes
Fast sleeve change
No
4 motor per deck CNC position system
Yes

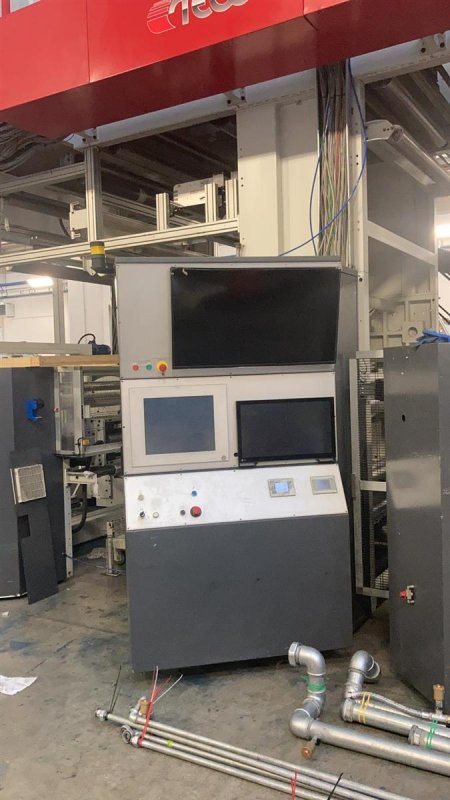

Computer supervision
Yes
Web width (mm)
1450
Print width (mm)
1400
Min print repeat (mm)
380
Max print repeat (mm)
800

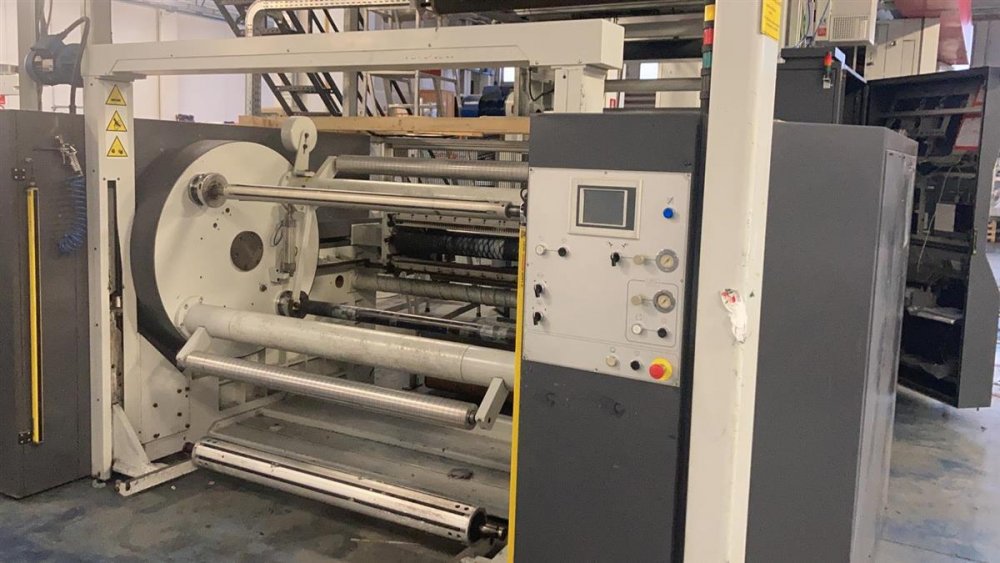

Unwinder type
Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter rewinder (mm)
1000

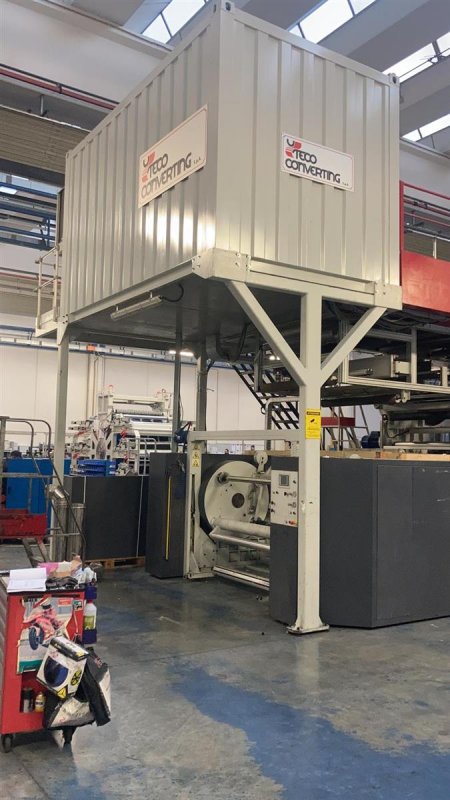

Drying
2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" -
Videocamera
yes BST
Corona treatment
Option Ferrarini Benelli
Web guides
yes in and out

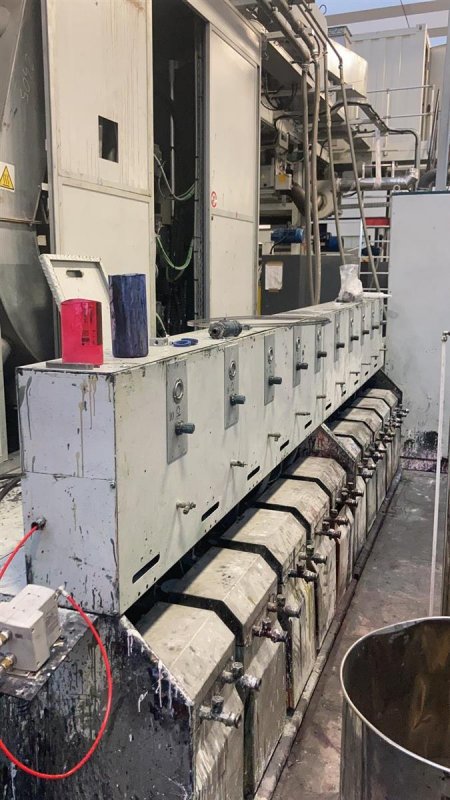

Vyscosity control
Yes included GAMA tipo G26-RIV-VIB c
Washing system
Yes included
Inking system
Closed chamber doctor blades

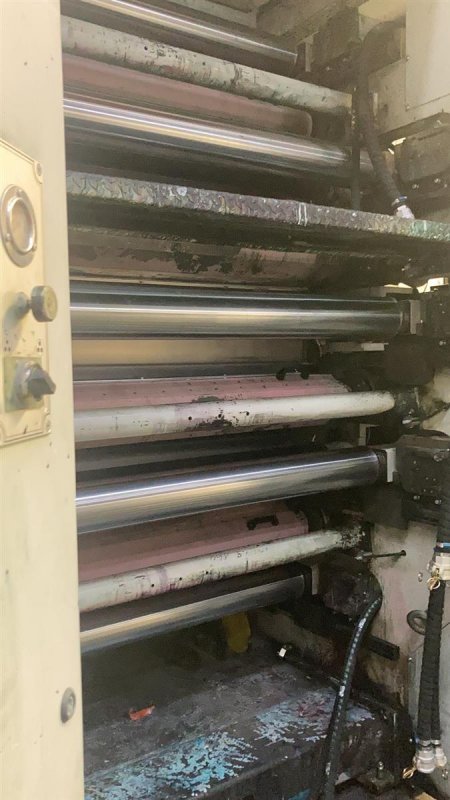

Anilox
11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm
Print Sleeves
total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620
Machine Code FL926
Manufacturer UTECO
Modello ONYX 108
Year 2013
Number of colors 10
Print possibilityes 10 +0
Gearless Yes
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 380
Max print repeat (mm) 800
Unwinder type Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter unwinder (mm) 1000
Rewinder type Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter rewinder (mm) 1000
Drying 2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" -
Videocamera yes BST
Corona treatment Option Ferrarini Benelli
Web guides yes in and out
Vyscosity control Yes included GAMA tipo G26-RIV-VIB c
Washing system Yes included
Inking system Closed chamber doctor blades
Anilox 11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm
Print Sleeves total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620
** SOLD **
