UTECO ONYX 810 flexographic printing machine 8 colors

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
about a similar one
Machine Code
FL831
Manufacturer
UTECO
Model
ONYX 810
Year
2011
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

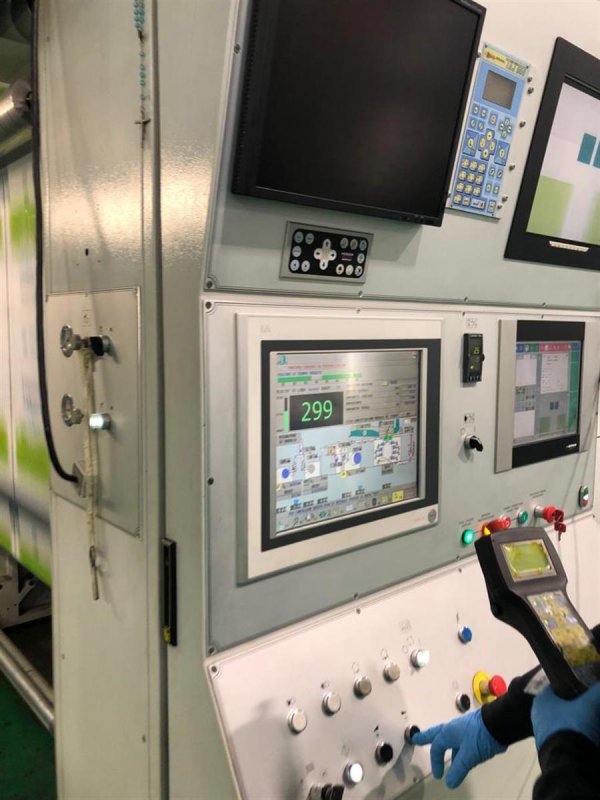

Computer supervision
Yes
Web width (mm)
1650
Print width (mm)
1600
Min print repeat (mm)
450
Max print repeat (mm)
1100
Unwinder type
Turret automatic
Rewinder type
Turret automatic
Drying
2 zones - 4 fans - 5 mt tunnel - 2 gas burners - automatic recirculation system with LEL control
Videocamera
Yes
Corona treatment
yes
Web guides
Yes in and out
Vyscosity control
Yes
Washing system
Yes automatic
Inking system
Closed chamber doctor blades
Anilox
12 ceramic anilox sleeves
Print Sleeves
80
Machine Code FL831
Manufacturer UTECO
Model ONYX 810
Year 2011
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1650
Print width (mm) 1600
Min print repeat (mm) 450
Max print repeat (mm) 1100
Unwinder type Turret automatic
Rewinder type Turret automatic
Drying 2 zones - 4 fans - 5 mt tunnel - 2 gas burners - automatic recirculation system with LEL control
Videocamera Yes
Corona treatment yes
Web guides Yes in and out
Vyscosity control Yes
Washing system Yes automatic
Inking system Closed chamber doctor blades
Anilox 12 ceramic anilox sleeves
Print Sleeves 80
