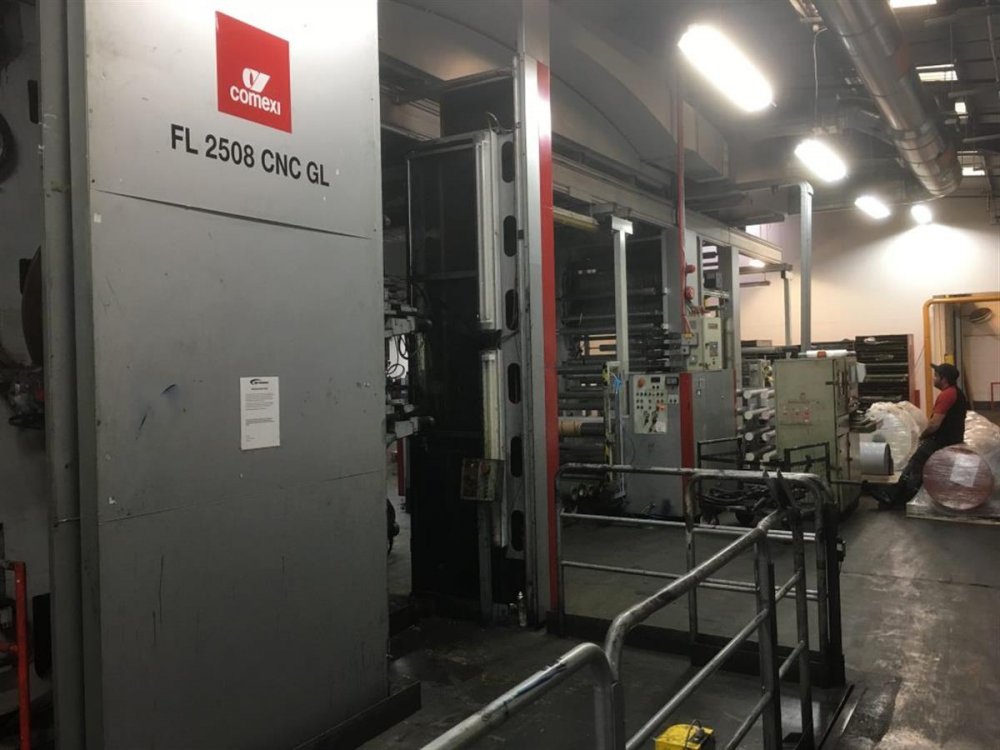

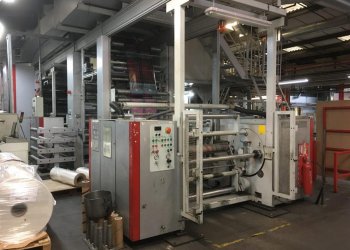

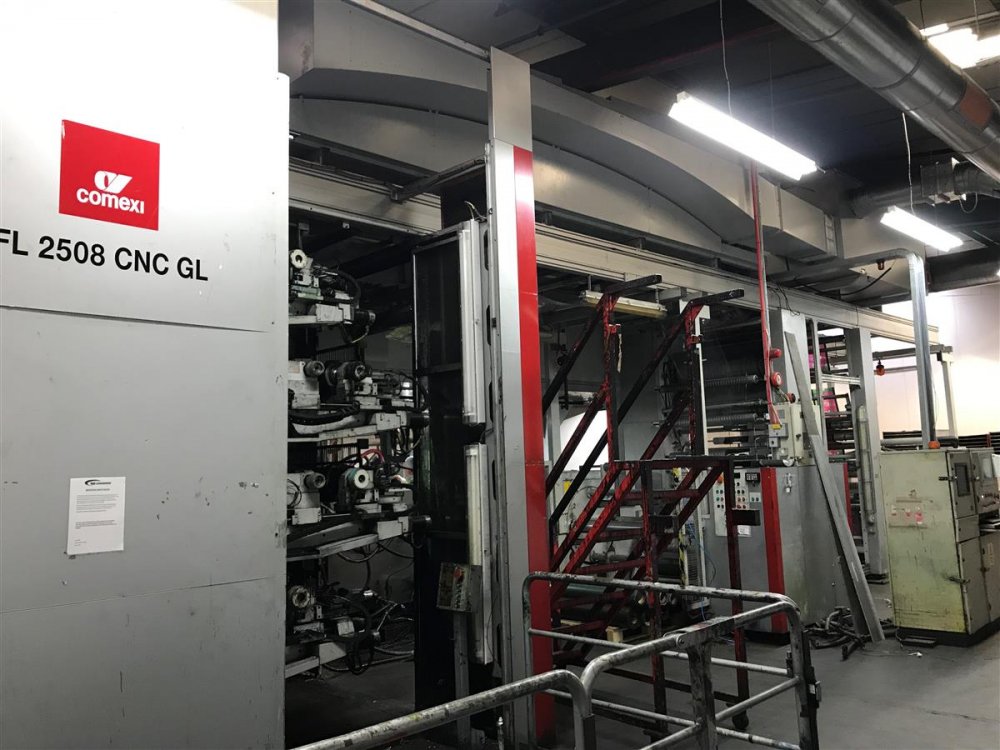

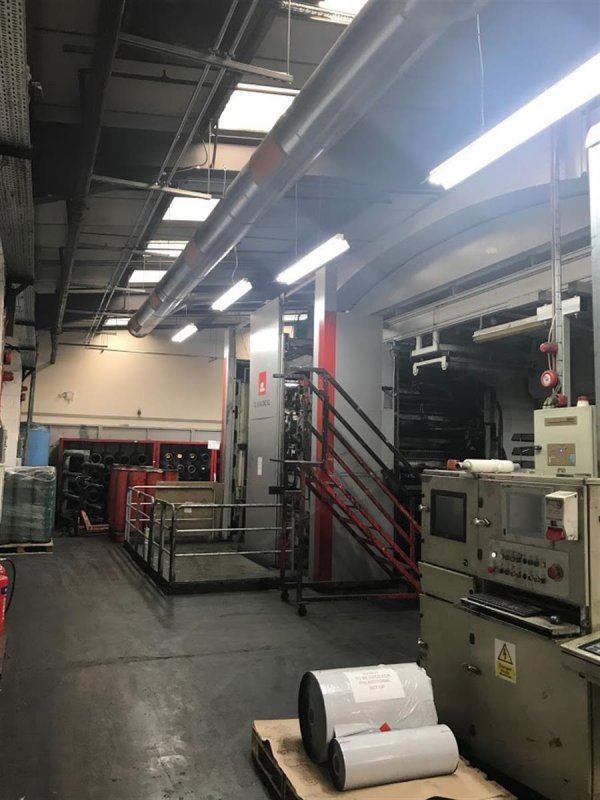

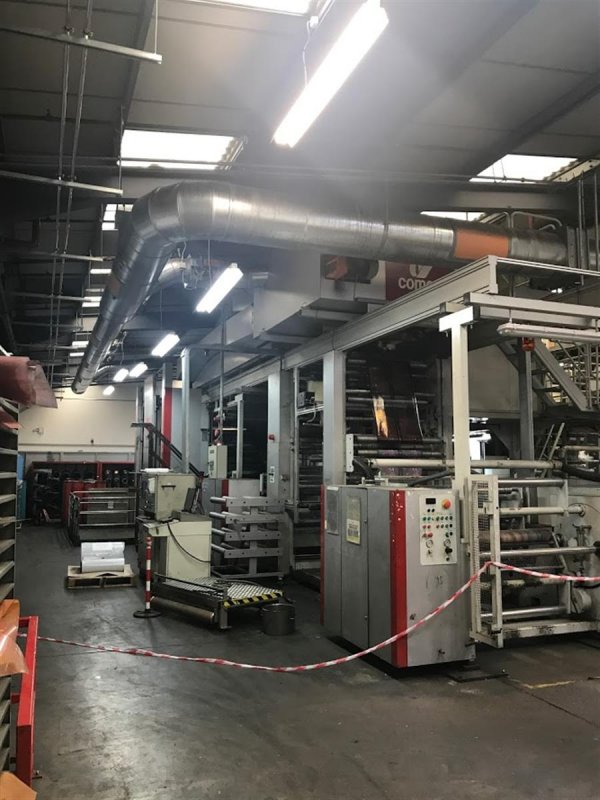

COMEXI FL2508 flexo press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL731
Manufacturer
COMEXI
Model
FL2508
Year
2003
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes

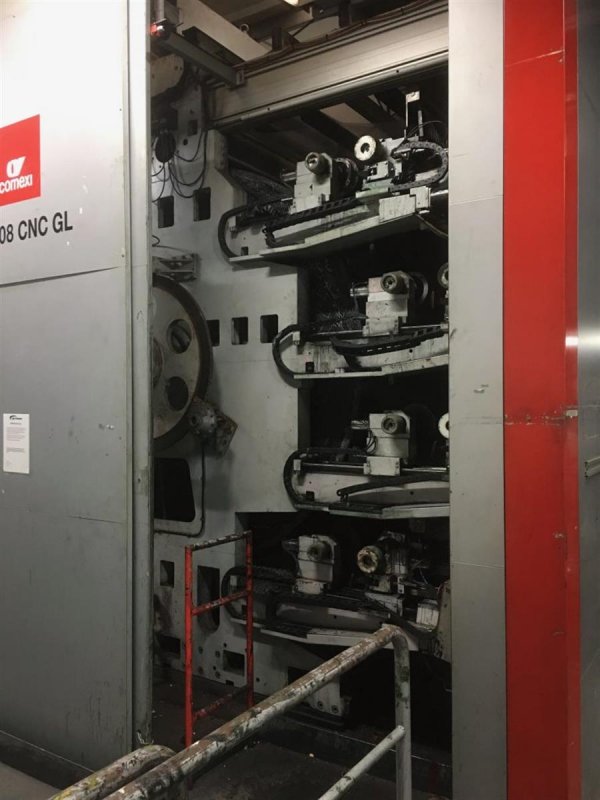

4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
1200
Unwinder type
Turret with flying splace
Max reel diameter unwinder (mm)
1000

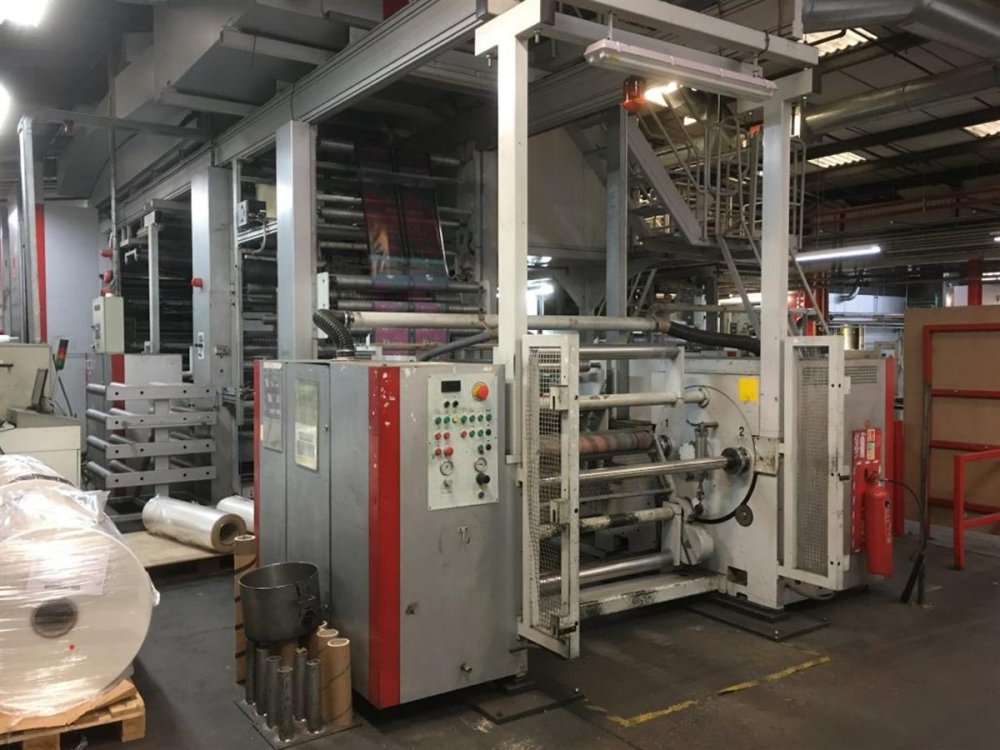

Rewinder type
Turret with flying splace
Max reel diameter rewinder (mm)
1000
Drying
Gas
Videocamera
AVT Genesis video inspection system
Corona treatment
No
Web guides
BST
Vyscosity control
Inelme auto viscosity system
Washing system
yes
Inking system
Sealed chamber doctor blades
Anilox
15 as follows 2x5.5v; 3x10v; 3x10.8v;5x4v;1x3.7v;113v
Print Sleeves
209 as follows: 2+8x440mm; 16x530;550;750;920;1050;1090; 15x690mm; 8x420;580;680;725;770;800;830;850;890;970;1020;1060;1180;
Additional information

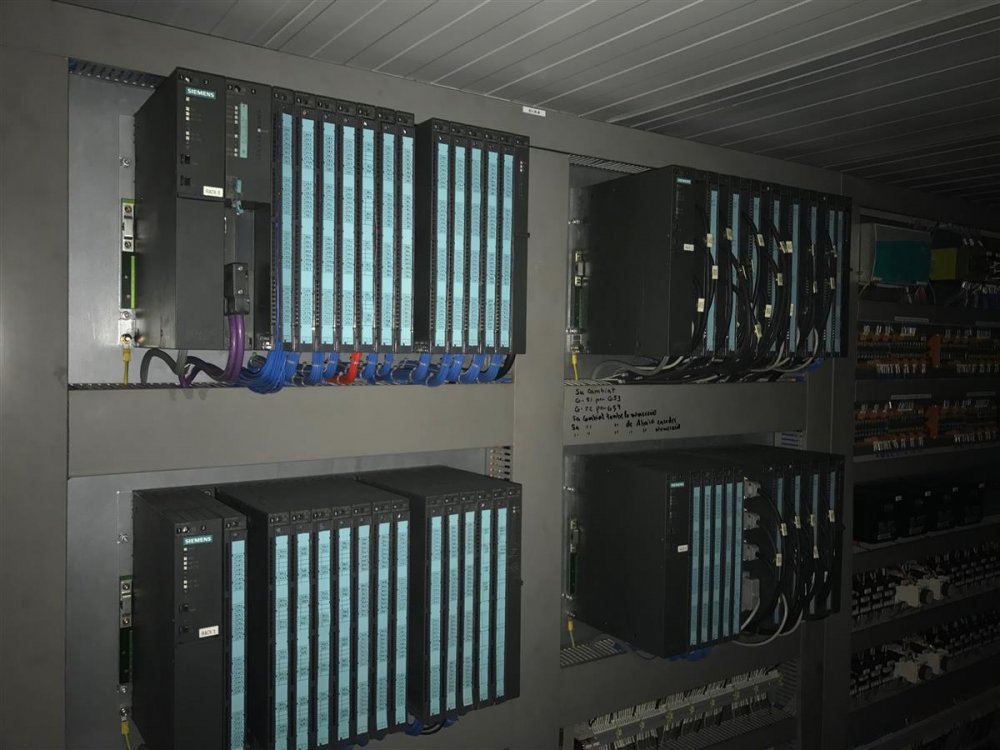

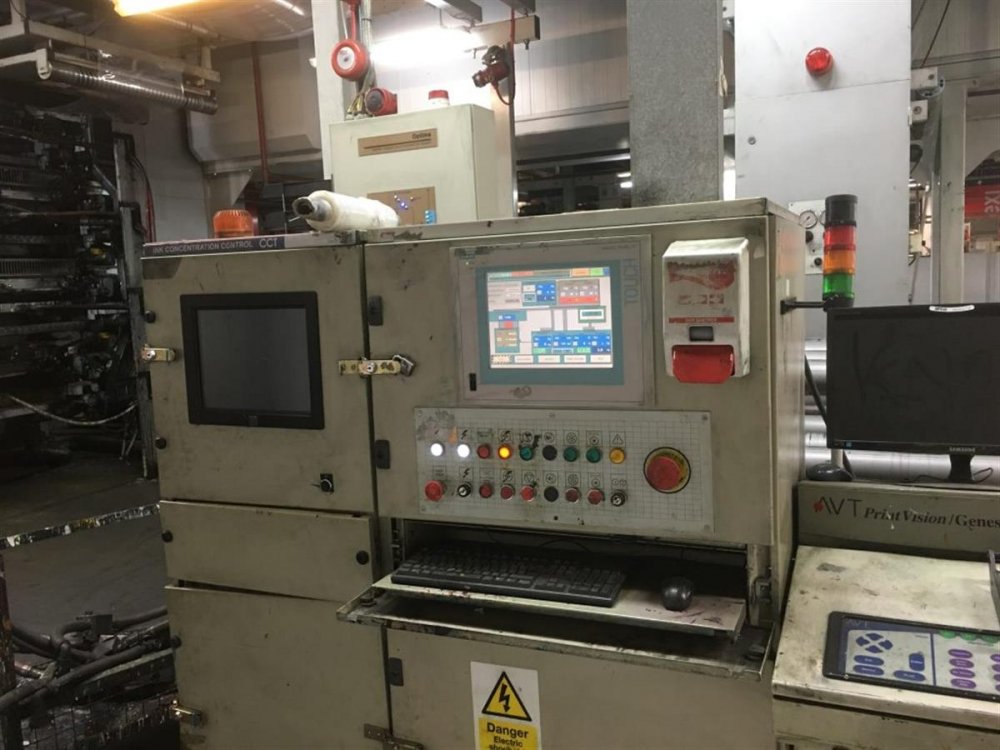

Siemens touch screen Operator control pads Inline slitting 350m/min speed Materials LDPE, OPP,CPP,PET,MEt,Paper
Machine Code FL731
Manufacturer COMEXI
Model FL2508
Year 2003
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 1200
Unwinder type Turret with flying splace
Max reel diameter unwinder (mm) 1000
Rewinder type Turret with flying splace
Max reel diameter rewinder (mm) 1000
Drying Gas
Videocamera AVT Genesis video inspection system
Corona treatment No
Web guides BST
Vyscosity control Inelme auto viscosity system
Washing system yes
Inking system Sealed chamber doctor blades
Anilox 15 as follows 2x5.5v; 3x10v; 3x10.8v;5x4v;1x3.7v;113v
Print Sleeves 209 as follows: 2+8x440mm; 16x530;550;750;920;1050;1090; 15x690mm; 8x420;580;680;725;770;800;830;850;890;970;1020;1060;1180;
Additional information Siemens touch screen Operator control pads Inline slitting 350m/min speed Materials LDPE, OPP,CPP,PET,MEt,Paper
