** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL774
- Manufacturer

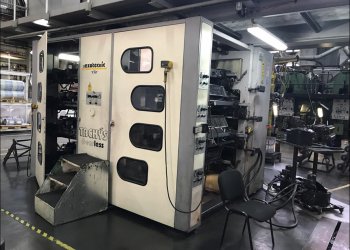

- FLEXOTECNICA
- Modello
- TACHYS
- Year
- 2001
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Unwinder type
- TURRET AUTOMATIC
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET AUTOMATIC
- Max reel diameter rewinder (mm)
- 800
- Drying
- 4 fans with air recycling and 16 nozzles bridge
- Videocamera
- YES, ELETROMAT
- Washing system
- YES
- Inking system
- Closed chambers doctor blades
- Anilox
- 22 (1*80; 1*100; 1*120; 1*140; 1*160; 1*180; 1*200; 1*220; 1*255; 1*260; 1*340 L/cm)
- Print cylinders
- 1*340; 1*360; 1*380; 1*390; 1*400; 1*410; 1*420; 1*440; 1*450; 1*460; 1*470; 1*480; 1*500; 1*510; 1*520; 1*530; 1*540; 1*560; 1*580; 1*600; 1*610; 1*620; 1*640; 1*660; 1*670; 1*680; 1*690; 1*700
| Machine Code | FL774 |
| Manufacturer | FLEXOTECNICA |
| Modello | TACHYS |
| Year | 2001 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Unwinder type | TURRET AUTOMATIC |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET AUTOMATIC |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 4 fans with air recycling and 16 nozzles bridge |
| Videocamera | YES, ELETROMAT |
| Washing system | YES |
| Inking system | Closed chambers doctor blades |
| Anilox | 22 (1*80; 1*100; 1*120; 1*140; 1*160; 1*180; 1*200; 1*220; 1*255; 1*260; 1*340 L/cm) |
| Print cylinders | 1*340; 1*360; 1*380; 1*390; 1*400; 1*410; 1*420; 1*440; 1*450; 1*460; 1*470; 1*480; 1*500; 1*510; 1*520; 1*530; 1*540; 1*560; 1*580; 1*600; 1*610; 1*620; 1*640; 1*660; 1*670; 1*680; 1*690; 1*700 |
