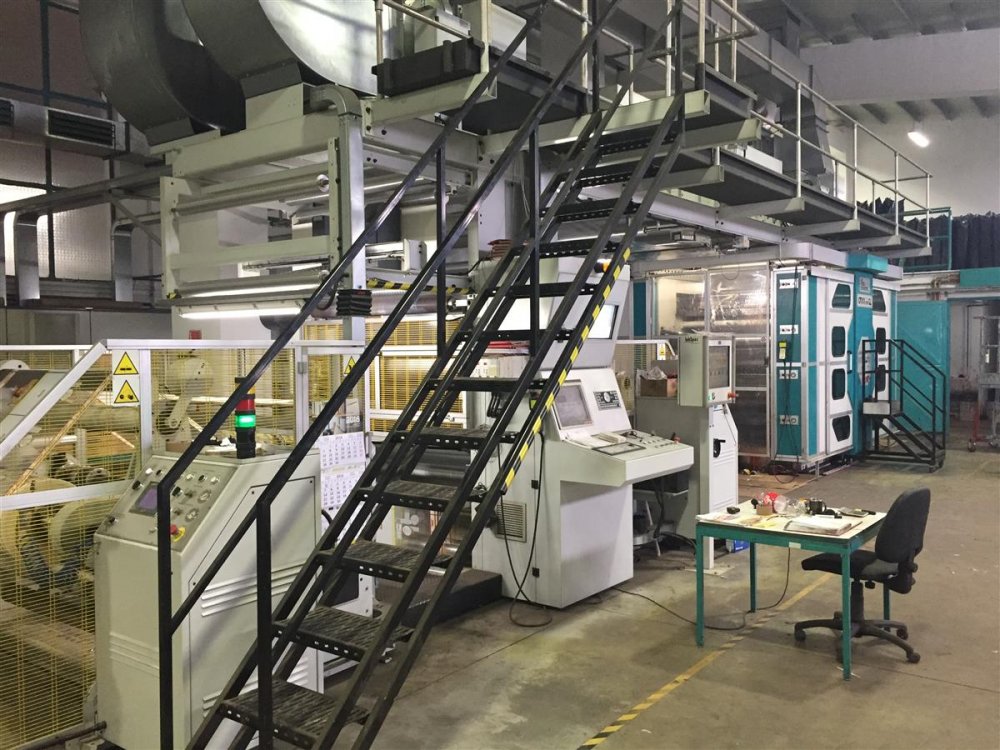

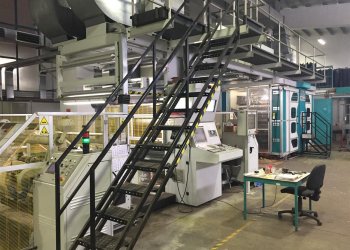

UTECO ONYX 876 GL MOD 130 flexo printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL702
Manufacturer UTECO
Model ONYX 876 GL MOD 130
Year 2007
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

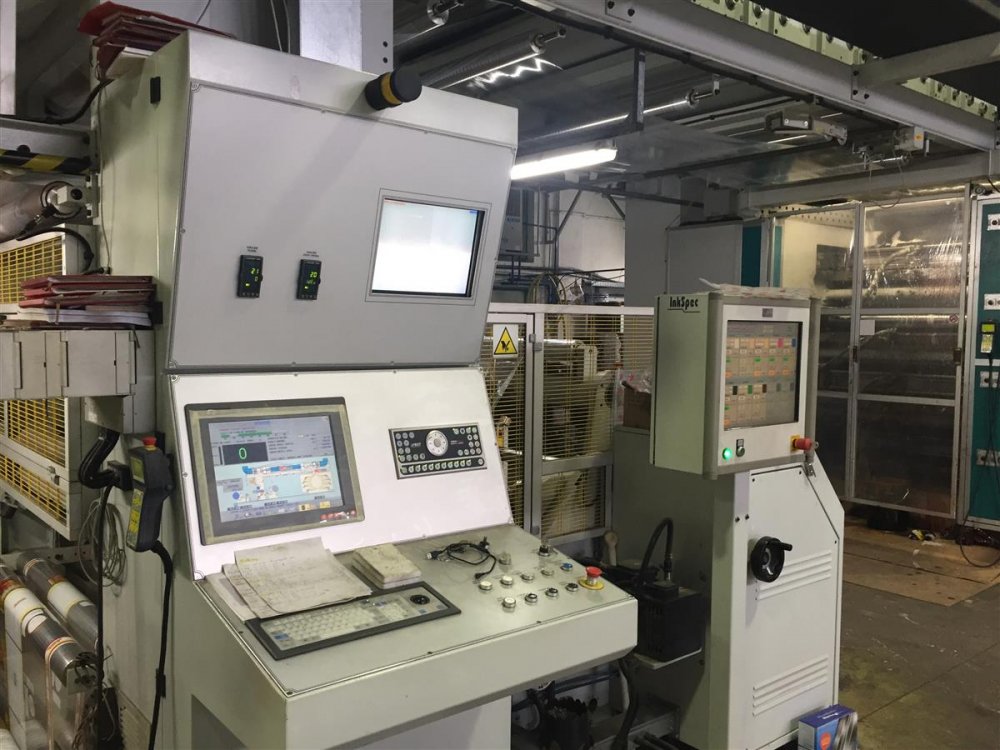

Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 350
Max print repeat (mm) 800
Unwinder type AUTOMATIC TURRET "TA-U 800"
Max reel diameter unwinder (mm) 800
Rewinder type AUTOMATIC TURRET "TA-R 800"
Max reel diameter rewinder (mm) 800
Drying With electrical batteries.Drying Tunnel 4 m long; Motorized air recirculation system with LEL system
Videocamera Yes, BST Proscan 3000-3chip
Web guides Yes, type SHIFTING
Vyscosity control n. 8 viscosimeters brand Inkspec
Inking system n. 8 ink pumps
Anilox 16 ceramic anilox sleeves
Print Sleeves 120 print sleeves
Additional information n.8 steel made printing sleeve air mandrel, diam 105.158mm n.8 closed chamber doctor blades Mechanical speed: up to 365m/min Total plate thickness : 1.69mm (including stickyback) Antistatic bar at web infeed Expandible shafts 3"

** SOLD **
