** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one

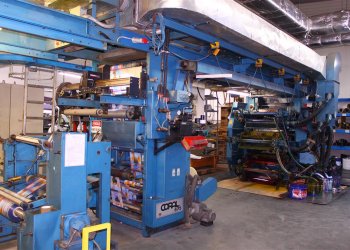

- Machine Code
- FL759
- Manufacturer
- UTECO
- Modello
- CORAL 675
- Year
- 1995
- Number of colors
- 6
- Print possibilityes
- 6+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Not specifed
- Computer supervision
- Yes
- Web width (mm)
- 820
- Print width (mm)
- 800
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 750
- Unwinder type
- Two position unwidner , drop splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Two position independent rewinder
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans, 3 mt tunnel electric heaters
- Videocamera
- yes BST Super Handy Scan
- Web guides
- yes
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic as follows : 3 x280 l/ cm vol.5,6 ; 2 x280 l/cm vol 8,0 HVP; 2 x240 l/cm vol 6,0; 2 x120 l/cm vol8,0; 1 x120 l/cm vol12,5; 1 x 160 l/cm vol.12,5; 1 x 100 l/cm
- Print Sleeves
- 115 print sleeves ; 1 set of mandrels, 3 sets of adaptors sleeves as follows : 6 x 299 mm; 6 x 319 ; 6 x334 ; 6 x 364 ; 6 x 384 ; 6 x 404 ; 6 x 429 ; 6 x 449 ; 6 x 469 ; 6 x 489 ; 6 x 509 ; 6 x 529 ; 6 x 553,6 ; 6 x 573,5 ; 6 x 603,5 ; 6 x 638,4 ; 6 x 683,3
- Note
- Motorized print deck prepositioning Motorized longitudinal registers Sleeve change on trolley out of machine Gear pitch DP 16
| Machine Code | FL759 |
| Manufacturer | UTECO |
| Modello | CORAL 675 |
| Year | 1995 |
| Number of colors | 6 |
| Print possibilityes | 6+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Not specifed |
| Computer supervision | Yes |
| Web width (mm) | 820 |
| Print width (mm) | 800 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 750 |
| Unwinder type | Two position unwidner , drop splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Two position independent rewinder |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans, 3 mt tunnel electric heaters |
| Videocamera | yes BST Super Handy Scan |
| Web guides | yes |
| Inking system | Closed chamber doctor blades |
| Anilox | 12 ceramic as follows : 3 x280 l/ cm vol.5,6 ; 2 x280 l/cm vol 8,0 HVP; 2 x240 l/cm vol 6,0; 2 x120 l/cm vol8,0; 1 x120 l/cm vol12,5; 1 x 160 l/cm vol.12,5; 1 x 100 l/cm |
| Print Sleeves | 115 print sleeves ; 1 set of mandrels, 3 sets of adaptors sleeves as follows : 6 x 299 mm; 6 x 319 ; 6 x334 ; 6 x 364 ; 6 x 384 ; 6 x 404 ; 6 x 429 ; 6 x 449 ; 6 x 469 ; 6 x 489 ; 6 x 509 ; 6 x 529 ; 6 x 553,6 ; 6 x 573,5 ; 6 x 603,5 ; 6 x 638,4 ; 6 x 683,3 |
| Note | Motorized print deck prepositioning Motorized longitudinal registers Sleeve change on trolley out of machine Gear pitch DP 16 |
