** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL636
- Manufacturer
- UTECO
- Modello
- ONYX 810 (GEARLESS)
- Year
- 2010
- Number of colors
- 8
- Print possibilityes
- 8+0, REPRINT possibility
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1500
- Print width (mm)
- 1400
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 1100
- Unwinder type
- Automatic turret
- Max reel diameter unwinder (mm)
- 1000

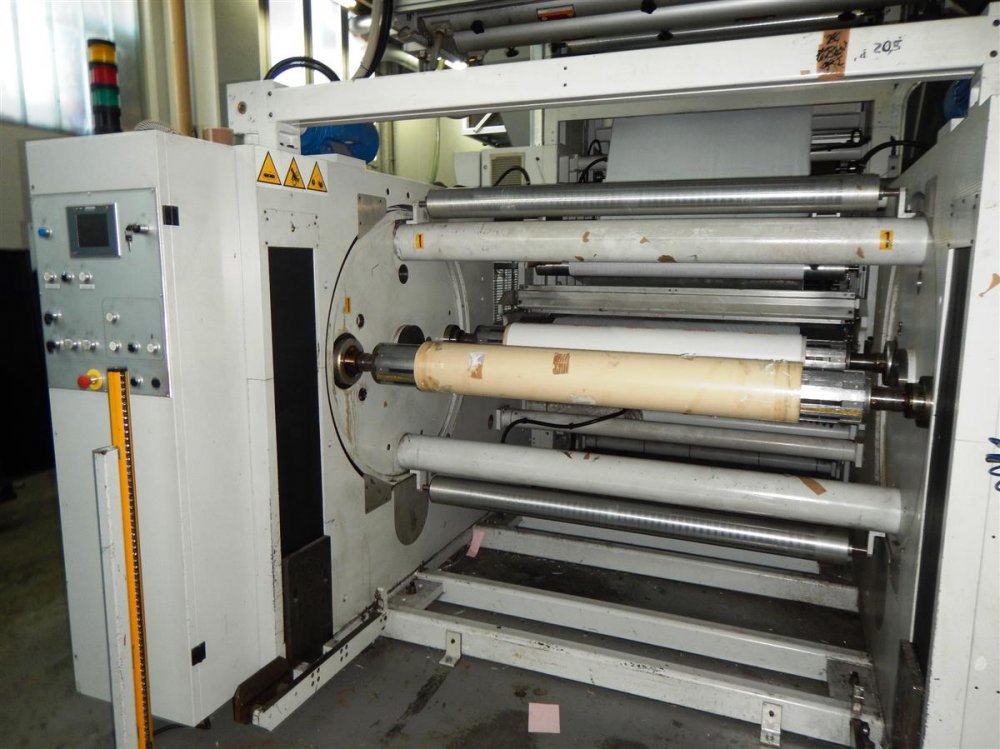

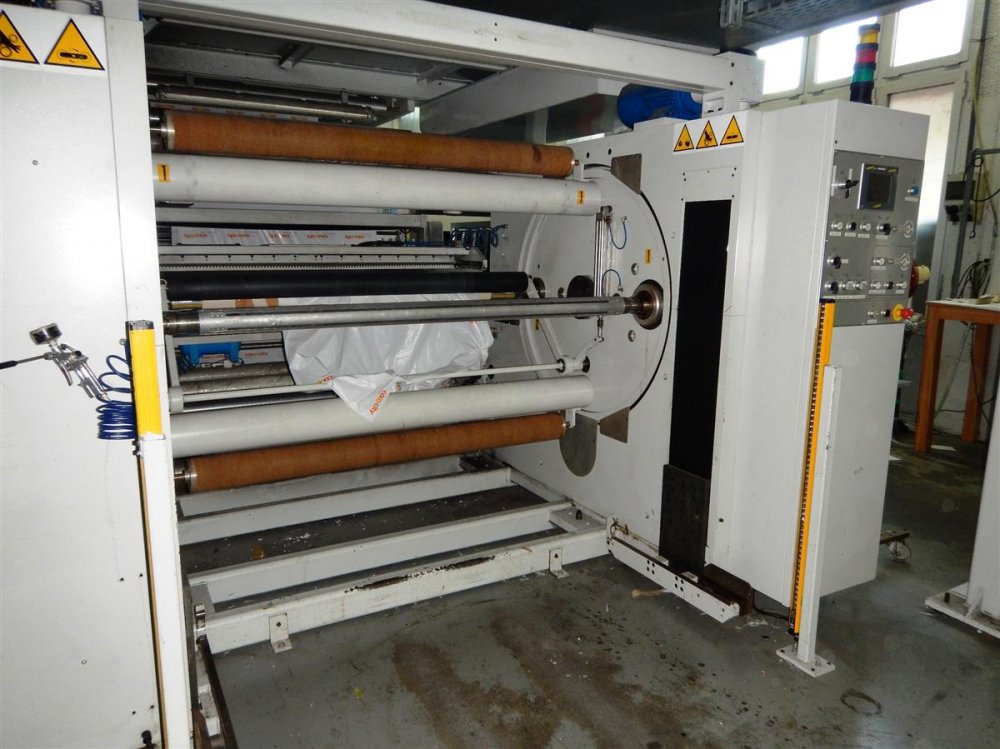

- Rewinder type
- Automatic turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Electric heaters. Air recyling system with heat recovery system. Automatic system to detect the solvent concentration. Lenght 5m. Air flow 15.600 normal m3/h. Air speed 45 m/s . Installed powe 190 kw.
- Videocamera
- BST PREMIUS Digital
- Corona treatment
- Mero
- Web guides
- BST
- Vyscosity control
- Gama
- Washing system
- Automatic wash up system for anilox rollers and doctor blades
- Inking system
- Water and solvent base. 8 ink pumps, tanks,8 doctor chamber blades
- Anilox
- 16 anilox rollers sleeve type as follows: 1x 80-160 L 12,5-8 V ; 1x 120 L 11V ; 2x140L 10V; 1x180L 8V; 1x200L 10V;1x240L 9V;1x280L 8V; 1x280L 7V; 2x320L 6V ; 1x360L 3,8V; 4x360L 4,5V
- Print Sleeves
- 152 sleeves for cliche
- Note
- The printing group is on the left side, looking the machine from the operator side. Materials it is possible to print all the main type of plastic films and papers normally used in the flexible packaging Max reels weight 2000kg Register control BST Premius Digital 3 Antistatic bars. Curved (banana)roller 9 carrier for plate sleeves Blade slitter at rewinder with trim exhaust
| Machine Code | FL636 |
| Manufacturer | UTECO |
| Modello | ONYX 810 (GEARLESS) |
| Year | 2010 |
| Number of colors | 8 |
| Print possibilityes | 8+0, REPRINT possibility |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1500 |
| Print width (mm) | 1400 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 1100 |
| Unwinder type | Automatic turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Electric heaters. Air recyling system with heat recovery system. Automatic system to detect the solvent concentration. Lenght 5m. Air flow 15.600 normal m3/h. Air speed 45 m/s . Installed powe 190 kw. |
| Videocamera | BST PREMIUS Digital |
| Corona treatment | Mero |
| Web guides | BST |
| Vyscosity control | Gama |
| Washing system | Automatic wash up system for anilox rollers and doctor blades |
| Inking system | Water and solvent base. 8 ink pumps, tanks,8 doctor chamber blades |
| Anilox | 16 anilox rollers sleeve type as follows: 1x 80-160 L 12,5-8 V ; 1x 120 L 11V ; 2x140L 10V; 1x180L 8V; 1x200L 10V;1x240L 9V;1x280L 8V; 1x280L 7V; 2x320L 6V ; 1x360L 3,8V; 4x360L 4,5V |
| Print Sleeves | 152 sleeves for cliche |
| Note | The printing group is on the left side, looking the machine from the operator side. Materials it is possible to print all the main type of plastic films and papers normally used in the flexible packaging Max reels weight 2000kg Register control BST Premius Digital 3 Antistatic bars. Curved (banana)roller 9 carrier for plate sleeves Blade slitter at rewinder with trim exhaust |
