- Maschinencode
- BO96
- Hersteller
- DORNIER
- Baujahr
- 1993
- Number of layers
- 1
- Overhaul/renovation
- in 2019 PLC and drives upgraded. Winder Kampf Imperial year 2019, Gobble slitter rewinder year 2020
- Material
- BOPET
- Output
- Max speed 535 m/min
- Width (mm)
- 6800

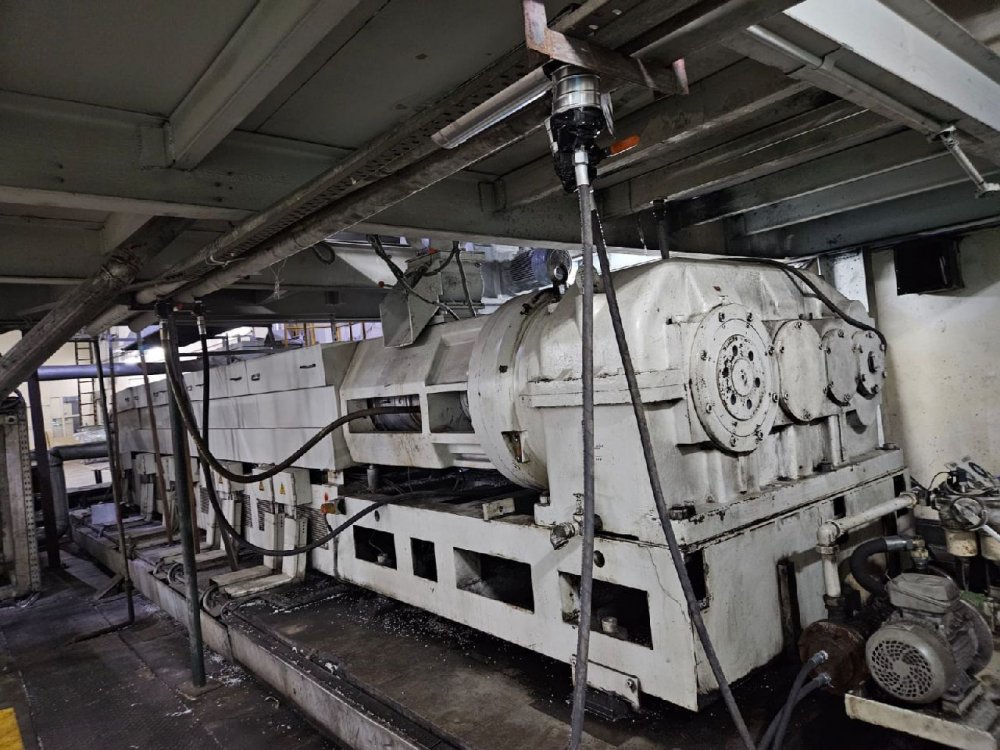

- Extruder 1 Description
- Single screw 22E4-30D screw diameter 225 mm, 203KW, Max output of extruder 3900 Kg/h
- Head description
- EDI, model Autoflex IV H75, automatic thickness profile control via flex lip and thermal expansion bolts.
- Die width
- 2050mm
- Thickness controll system
- Automatic. Gauge Honeywell

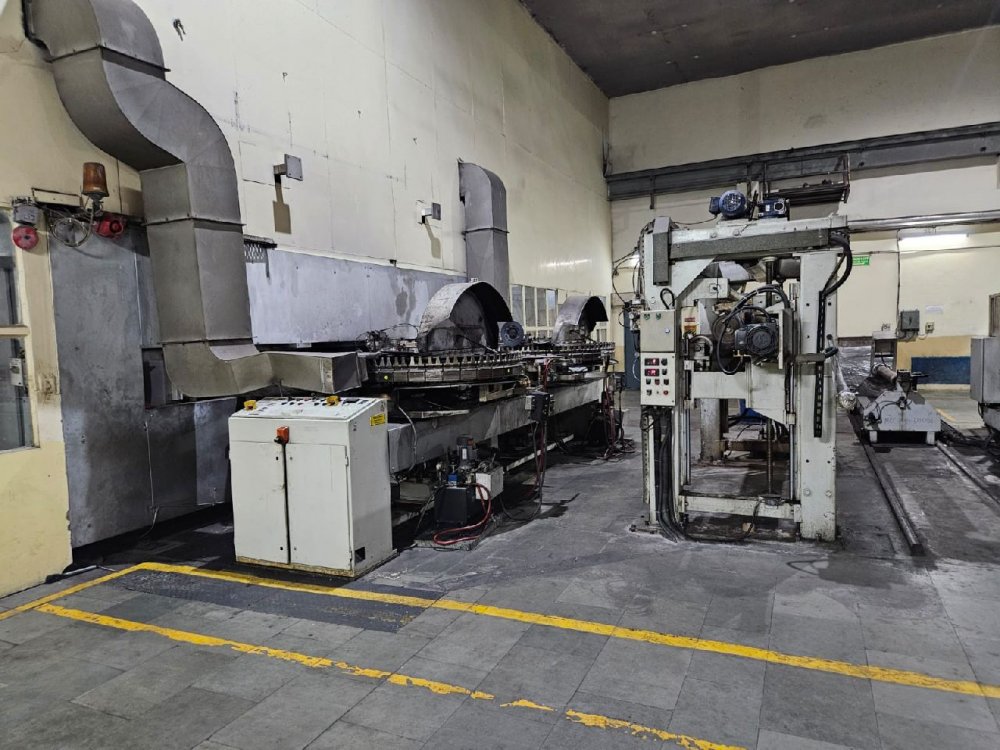

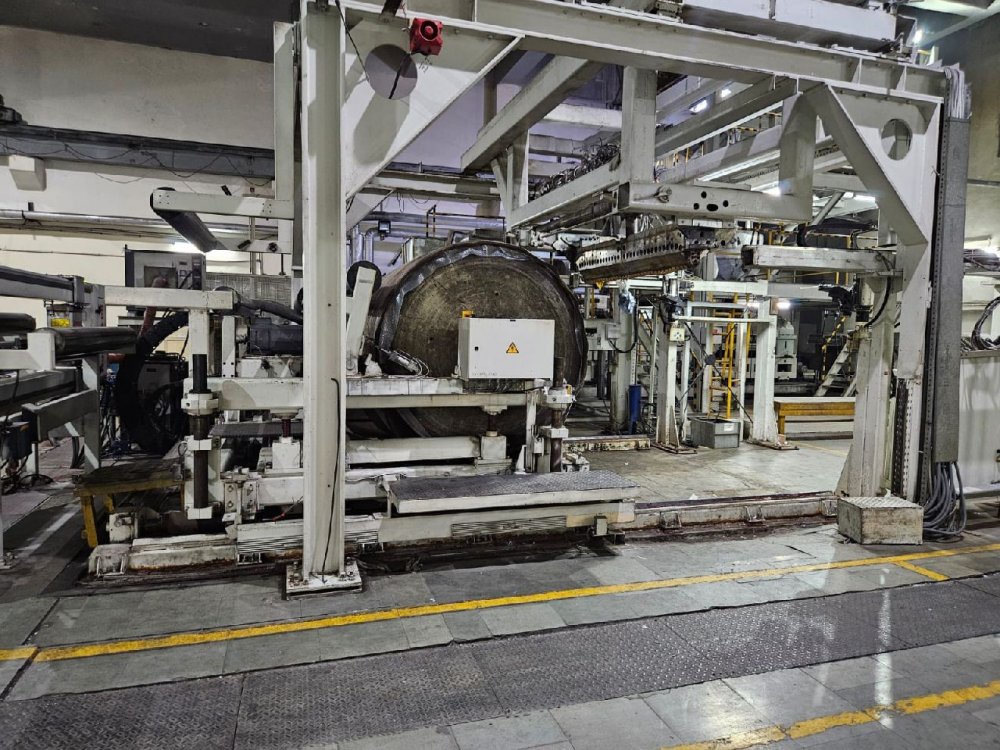

- Chill roll unit
- without water bath

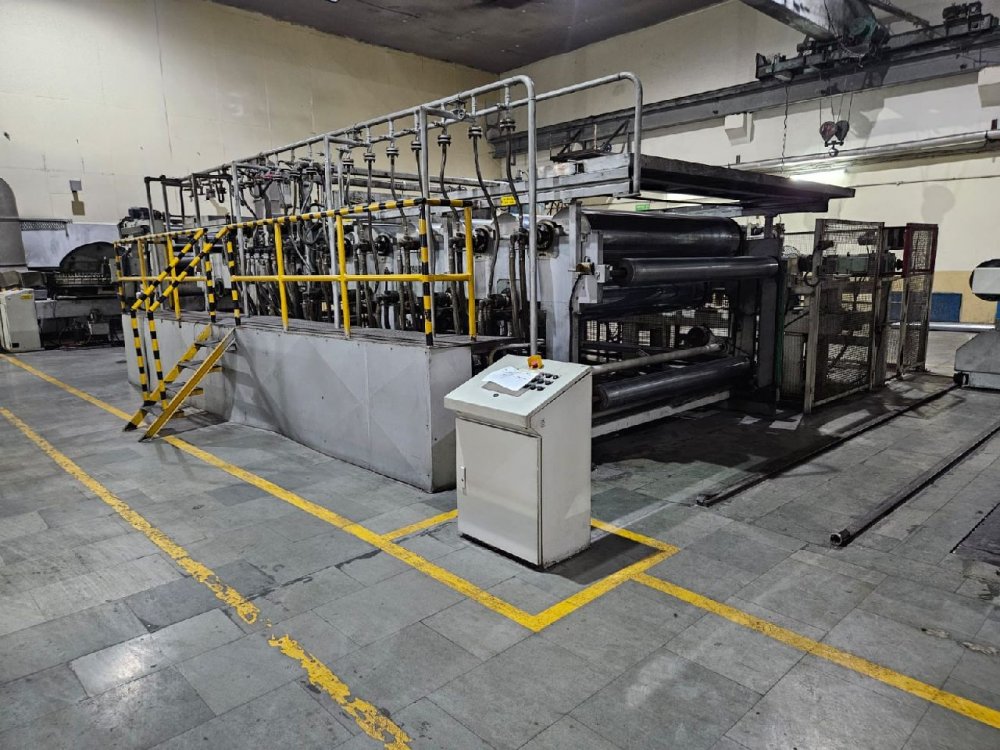

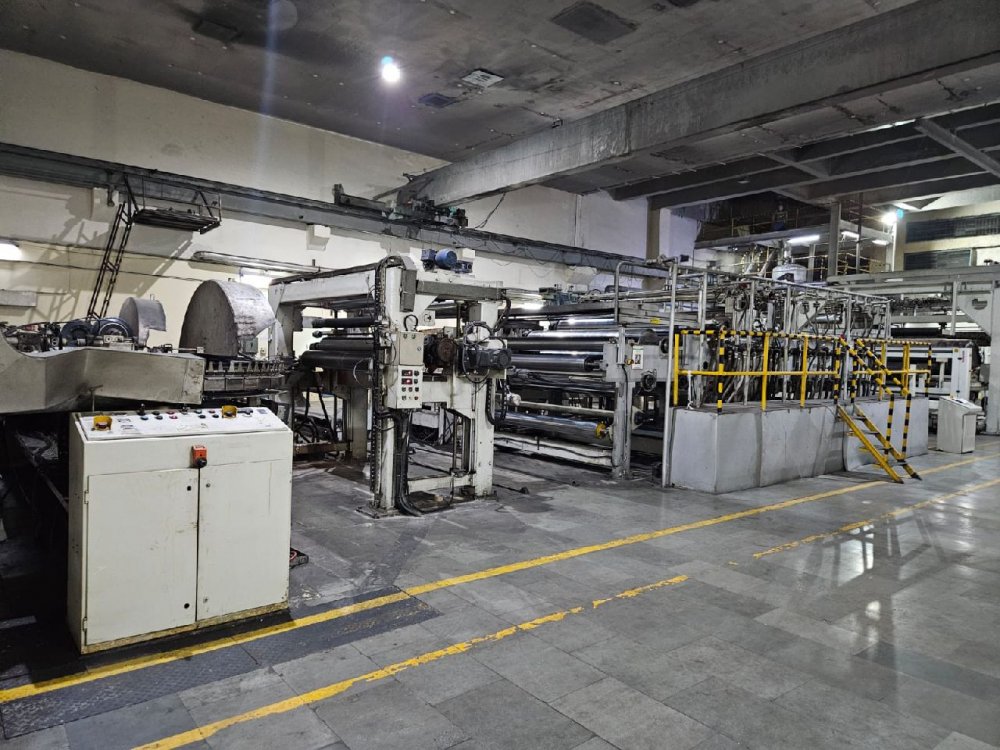

- MDO description
- 10xPre heating rollers; 6xstretching rollers, 4xannealing rollers, Oil heated MDO

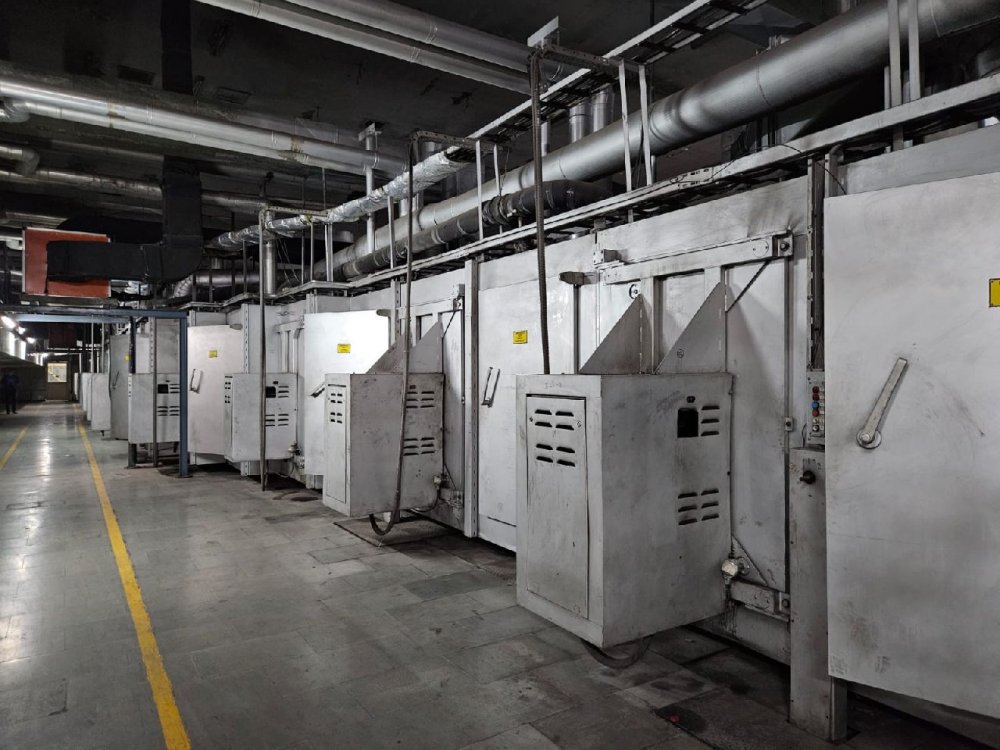

- TDO description
- Chain typeHS-9 with roller bearings, Oil heated, 16 sections
- Corona treatment
- IEEC (RFG-12-1585K)-12KW
- Rewinder width
- 7200mm

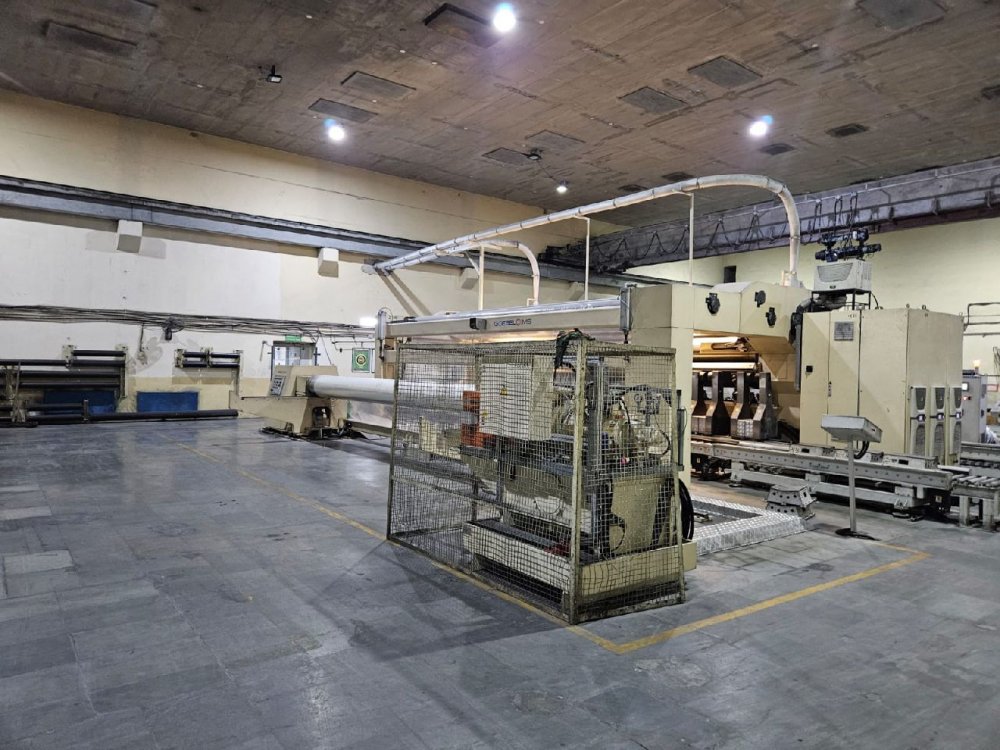

- Rewinder description
- Kampf- Im perial S 72/14 , year 2019

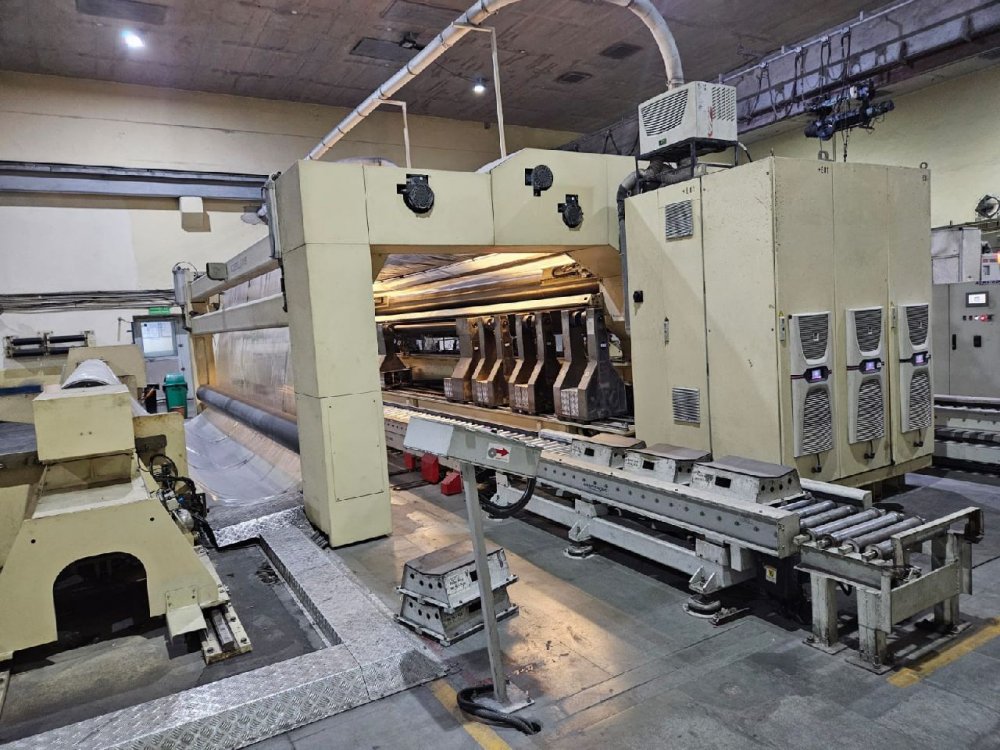

- Slitter
- Goebel Primary slitter (2020 Model), 10 couple of arms, 11 knives
- Note
- In line coating single side Grinder, Edge Trim conveying & regranulation system
| Maschinencode | BO96 |
| Hersteller | DORNIER |
| Baujahr | 1993 |
| Number of layers | 1 |
| Overhaul/renovation | in 2019 PLC and drives upgraded. Winder Kampf Imperial year 2019, Gobble slitter rewinder year 2020 |
| Material | BOPET |
| Output | Max speed 535 m/min |
| Width (mm) | 6800 |
| Extruder 1 Description | Single screw 22E4-30D screw diameter 225 mm, 203KW, Max output of extruder 3900 Kg/h |
| Head description | EDI, model Autoflex IV H75, automatic thickness profile control via flex lip and thermal expansion bolts. |
| Die width | 2050mm |
| Thickness controll system | Automatic. Gauge Honeywell |
| Chill roll unit | without water bath |
| MDO description | 10xPre heating rollers; 6xstretching rollers, 4xannealing rollers, Oil heated MDO |
| TDO description | Chain typeHS-9 with roller bearings, Oil heated, 16 sections |
| Corona treatment | IEEC (RFG-12-1585K)-12KW |
| Rewinder width | 7200mm |
| Rewinder description | Kampf- Im perial S 72/14 , year 2019 |
| Slitter | Goebel Primary slitter (2020 Model), 10 couple of arms, 11 knives |
| Note | In line coating single side Grinder, Edge Trim conveying & regranulation system |
