- Maschinencode
- CA273
- Hersteller
- WINDMÖLLER & HÖLSCHER
- Modello
- FILMEX
- Baujahr
- 2014
- Number of layers
- 3
- Film structure
- ABC
- Material
- CPP and CPE
- Film width (mm)
- 2400
- Speed (m/min)
- 350 m/ min mechanical
- Output (Kg/h)
- 1000kg/h depending on materials

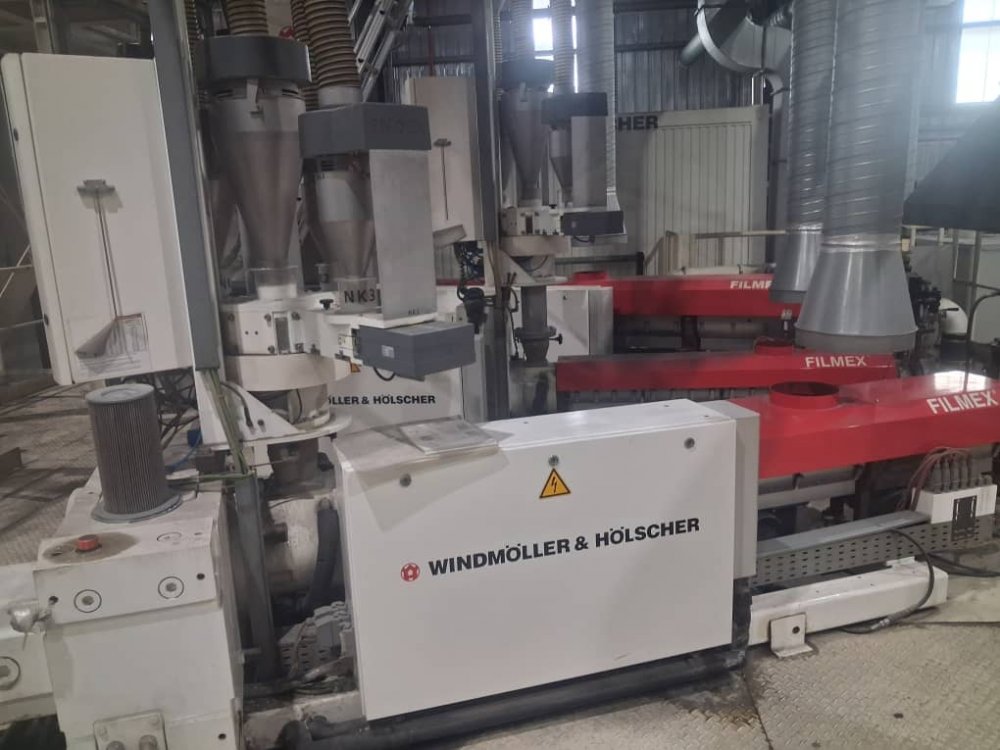

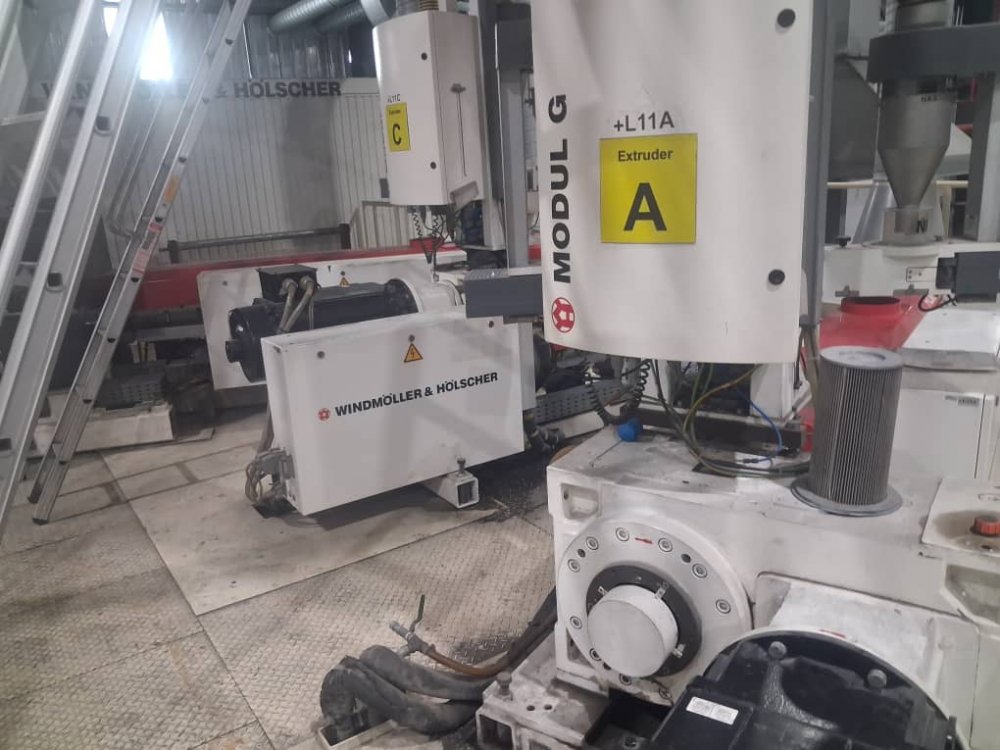

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 90mm L/D30,
- Description 1
- - output 350 kg/h - 3 comp gravimetric dosing Module G3 with vacuum feeders - max screw rpm 250 - AC motor 125 kW, inverter controlled - Heating 30kW, air cooled + water cooling for feeding section - Bimetallic barrel and anti wear lining of feed barrel in tungsten carbide - Hydraulic screen changer - Pro control TS supervision
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 150mm L/D30
- Description 2
- - output 800 kg/h - 3 comp gravimetric dosing Module G3 with vacuum feeders - max screw rpm 165 - AC motor 370 kW - inverter controlled - Heating 75kW, air cooled + water cooling for feeding section - Bimetallic barrel and anti wear lining of feed barrel in tungsten carbide - Hydraulic screen changer - Pro control TS supervision
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 90mm L/D30
- Description 3
- - output 155 kg/h - 3 comp gravimetric dosing Module G3 with vacuum feeders - max screw rpm 350 - AC motor 60 kW - inverter controlled - Heating 14,4kW, + water cooling for feeding section - Bimetallic barrel and anti wear lining of feed barrel in tungsten carbide - Hydraulic screen changer - Pro control TS supervision

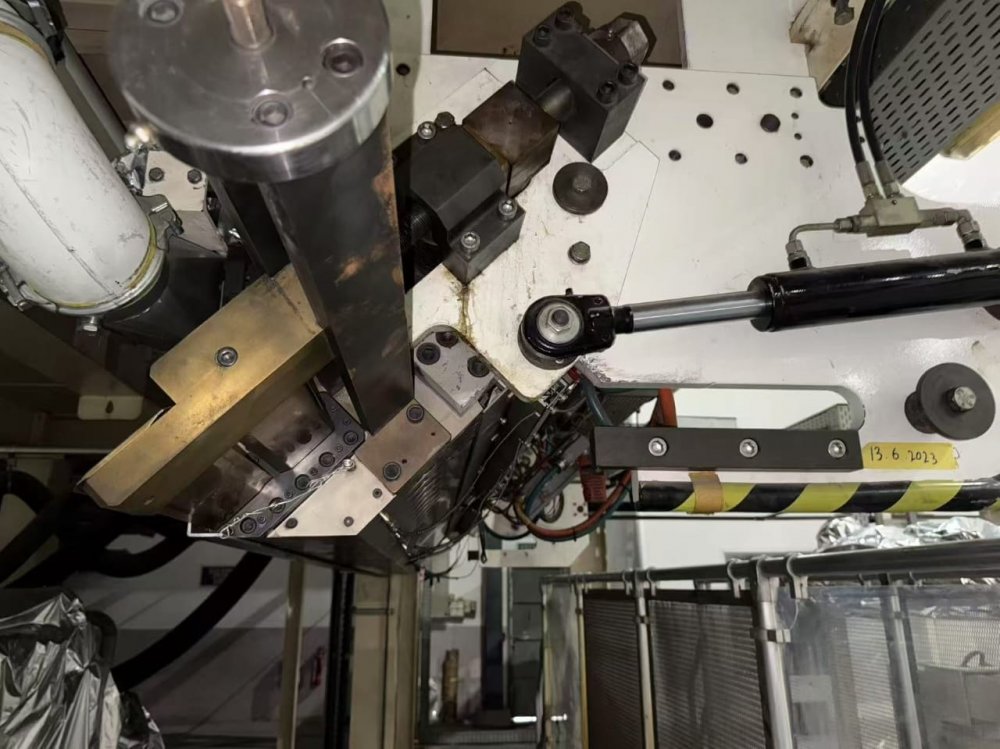

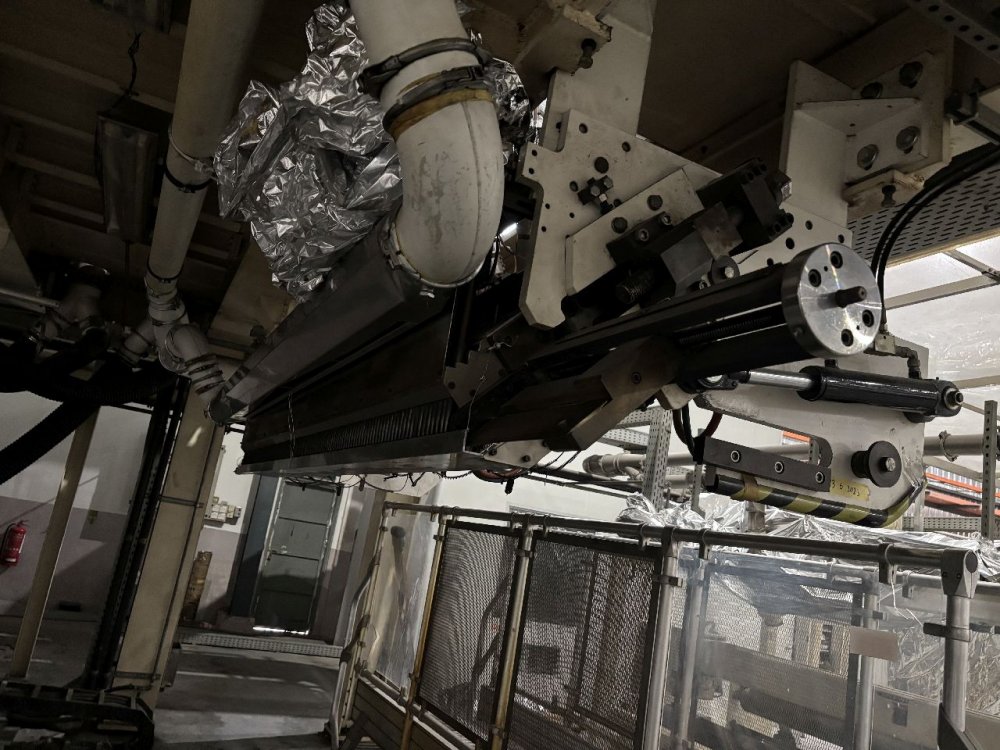

- Head description
- - Make Cloren - flex lip automatic thickness profile control, heating cartridges 140 Watts every inch - internal deckling system 500mm per each side ( 1m total) - Feedback VG with selector plug - T-channel distribution - hydraulic die opening system for cleaning and maintenance
- Die width (mm)
- 2750

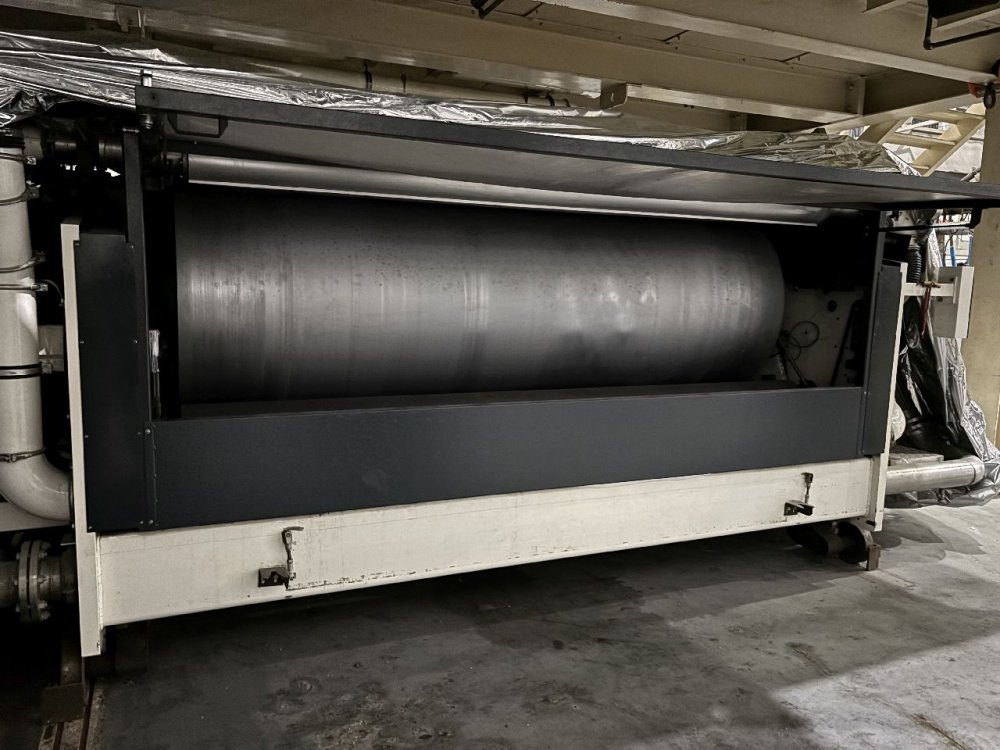

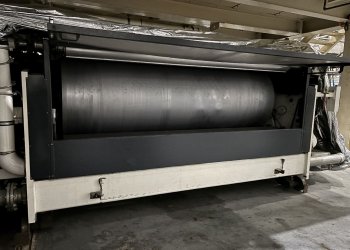

- Chill roll unit
- - Primary chill roll 1000mm diam - Second chill roll 400mm diam - Independent and direct drive of each chill roller via "torque" motors - Air knife with motorised position - Electrostatic edge pinning via high voltage electrodes - Pneumatic edge pinning - 3 idle rollers film withdraw - Exhaust fumes removal - 3 circuit water temperature control unit (primary chill roll, second chill roll and extruder) -
- Thickness controll system
- - Automatic thickness profile control system - Thickness gauge Make: NDC - Type of measurement: IR - Model: FG710-1
- Corona treatment
- - Make AFS - Silicon process roller diam 300mm - Treatment width 2550mm - Generator's output 30kW
- Web guide
- Oscilating frame
- Rewinder max reel diameter (mm)
- 1200mm (1170mm max for shafts). Max reel weight 2800kg

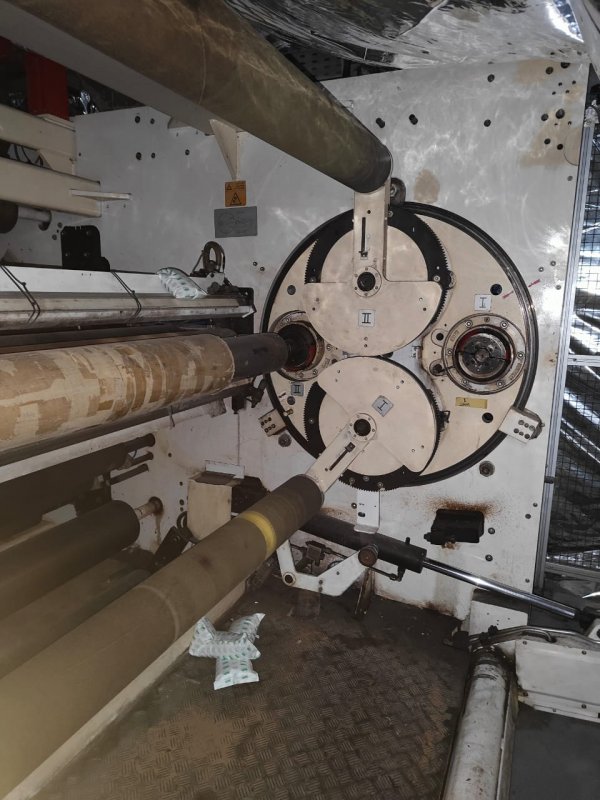

- Rewinder description
- - Mod Filmatic TC - speed 350 m/min - max film width 2600mm - rollers' width 2700mm - Core's diam 152mm - Web tension 30-500 N at draw, 30-350N prior to winding - Adjustable contact pressure -
- Note
- - Thicknesses 18-150 my - Edge trim and vacuum aspiration system width max 75mm
| Maschinencode | CA273 |
| Hersteller | WINDMÖLLER & HÖLSCHER |
| Modello | FILMEX |
| Baujahr | 2014 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | CPP and CPE |
| Film width (mm) | 2400 |
| Speed (m/min) | 350 m/ min mechanical |
| Output (Kg/h) | 1000kg/h depending on materials |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 90mm L/D30, |
| Description 1 | - output 350 kg/h - 3 comp gravimetric dosing Module G3 with vacuum feeders - max screw rpm 250 - AC motor 125 kW, inverter controlled - Heating 30kW, air cooled + water cooling for feeding section - Bimetallic barrel and anti wear lining of feed barrel in tungsten carbide - Hydraulic screen changer - Pro control TS supervision |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 150mm L/D30 |
| Description 2 | - output 800 kg/h - 3 comp gravimetric dosing Module G3 with vacuum feeders - max screw rpm 165 - AC motor 370 kW - inverter controlled - Heating 75kW, air cooled + water cooling for feeding section - Bimetallic barrel and anti wear lining of feed barrel in tungsten carbide - Hydraulic screen changer - Pro control TS supervision |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 90mm L/D30 |
| Description 3 | - output 155 kg/h - 3 comp gravimetric dosing Module G3 with vacuum feeders - max screw rpm 350 - AC motor 60 kW - inverter controlled - Heating 14,4kW, + water cooling for feeding section - Bimetallic barrel and anti wear lining of feed barrel in tungsten carbide - Hydraulic screen changer - Pro control TS supervision |
| Head description | - Make Cloren - flex lip automatic thickness profile control, heating cartridges 140 Watts every inch - internal deckling system 500mm per each side ( 1m total) - Feedback VG with selector plug - T-channel distribution - hydraulic die opening system for cleaning and maintenance |
| Die width (mm) | 2750 |
| Chill roll unit | - Primary chill roll 1000mm diam - Second chill roll 400mm diam - Independent and direct drive of each chill roller via "torque" motors - Air knife with motorised position - Electrostatic edge pinning via high voltage electrodes - Pneumatic edge pinning - 3 idle rollers film withdraw - Exhaust fumes removal - 3 circuit water temperature control unit (primary chill roll, second chill roll and extruder) - |
| Thickness controll system | - Automatic thickness profile control system - Thickness gauge Make: NDC - Type of measurement: IR - Model: FG710-1 |
| Corona treatment | - Make AFS - Silicon process roller diam 300mm - Treatment width 2550mm - Generator's output 30kW |
| Web guide | Oscilating frame |
| Rewinder max reel diameter (mm) | 1200mm (1170mm max for shafts). Max reel weight 2800kg |
| Rewinder description | - Mod Filmatic TC - speed 350 m/min - max film width 2600mm - rollers' width 2700mm - Core's diam 152mm - Web tension 30-500 N at draw, 30-350N prior to winding - Adjustable contact pressure - |
| Note | - Thicknesses 18-150 my - Edge trim and vacuum aspiration system width max 75mm |
