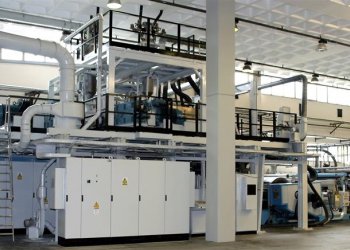

3 schichten PRIMPLAST CS 200 F/C Chillroll-extrusionanlage

Maschinencode
CA043
Hersteller
PRIMPLAST
Modello
CS 200 F/C
Baujahr
2004
Number of layers
3
Material
STRETCH FILM LLDPE
Film width (mm)
2000
Speed (m/min)
550
Output (Kg/h)
1400
Extruder 1 Layer ref:
A
Screw diam 1
90mm
Description 1
110 kw. AC motor
Extruder 2 Layer ref:
B
Screw diam 2
160mm
Description 2
315Kw . AC motor
Extruder 3 Layer ref:
C
Screw diam 3
120mm
Description 3
200 kw. AC motor
Die width (mm)
Cloren width 2550mm
Chill roll unit
Chill roll 2750mm (dia 1350mm). Tank and pumps group included chiller pipes Corema
Thickness controll system
Oscillating thickness control, beta rays gauge (1 scanner) Year 2004
Rewinder max reel diameter (mm)
600mm
Rewinder description
AutomaticAVD 2000B with antistatic bars, pneumatic rubber coated pressure roll, no 3 pneumatic shafts for cardboard cores 76mm
Note
5 slitting knives. 4 lanes. Mechanical speed chill roll 550 m/min , winder 600m/min Static eliminator. Edge trim recycle system Trim cutting device Process control system Control panel bentilation Automatic cardboard cores feeder Inline scarps recovery system Granulator Aertecnica Croci Motor Kw 30 Year 2003
Maschinencode CA043
Hersteller PRIMPLAST
Modello CS 200 F/C
Baujahr 2004
Number of layers 3
Material STRETCH FILM LLDPE
Film width (mm) 2000
Speed (m/min) 550
Output (Kg/h) 1400
Extruder 1 Layer ref: A
Screw diam 1 90mm
Description 1 110 kw. AC motor
Extruder 2 Layer ref: B
Screw diam 2 160mm
Description 2 315Kw . AC motor
Extruder 3 Layer ref: C
Screw diam 3 120mm
Description 3 200 kw. AC motor
Die width (mm) Cloren width 2550mm
Chill roll unit Chill roll 2750mm (dia 1350mm). Tank and pumps group included chiller pipes Corema
Thickness controll system Oscillating thickness control, beta rays gauge (1 scanner) Year 2004
Rewinder max reel diameter (mm) 600mm
Rewinder description AutomaticAVD 2000B with antistatic bars, pneumatic rubber coated pressure roll, no 3 pneumatic shafts for cardboard cores 76mm
Note 5 slitting knives. 4 lanes. Mechanical speed chill roll 550 m/min , winder 600m/min Static eliminator. Edge trim recycle system Trim cutting device Process control system Control panel bentilation Automatic cardboard cores feeder Inline scarps recovery system Granulator Aertecnica Croci Motor Kw 30 Year 2003
** SOLD **
