COMEXI FP 1808 CNC Flexodruck Maschine 8 farben

Maschinencode FL741
Hersteller COMEXI
Modell FP 1808 CNC
Baujahr 1998
Anzahl von Farben 8
Renovierung Several upgrades : Siemens S7 PLCs. Register system upgraded to encoders. Sleeves for 1.7 plates. Repeates 400-640mm. Rossini everstat sleeves and Axcyl.8 Rossini adaptors with metalic rings. Anilox from Sandon. Eltromat web inspection system with matricial error detecor. Ultrasonic visco controller for all decks. Ferrarini corona web. Heaford manual monter with revamp. Flexoart ink chambers and fixation system to reduce vibration. Stainless rack for both sleeve and anilox. Imbroved system for fast ink changeover. Inline ink cooling system for each deck
Gearless No
Rascher Manschettenwechsel Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Gewebebreite (mm) 1050
Druckbreite (mm) 1000
Min print repeat (mm) 330
Max print repeat (mm) 650
Unwinder type Double unwinding shaft, electromagnetic brake, marriage rolls, dancing rollers
Max. Spulendurchmesser Abroller (mm) 800
Aufrollertyp Turret Non Stop
Max reel diameter rewinder (mm) 800
Trocknung Gas
Videokamera Video system -BST-Eltromat IPQ with Register system & inspection system Eltromat
Kronenbehandlung Ferrarini & Benelli
Gewebeführungen BST
Vyscosity control Inkspeck
Druckfarbenabgabe Electrical pump inking system.Pneumatic pumps .Doctor blades system from flexoArt
Anilox 5x340L/cm Vol3,6; 2x340L/cm Vol3,5; 2x340 L/cm Vol3,4; 2x360L/cm Vol3,8; 1x340L/cm Vol4,8; 1x340L/cm Vol5 ; 2x320 L/cm Vol6,5; 1x260L/cm Vol5; 2x280L/cm Vol7,7; 1x200L/cm Vol 7,7; 1x200L/cm Vol10,2;2x200L/cm Vol5,3 ; 120L/cm Vol9,4; 120L/cm Vol10;100L/cm Vol12
Druckmanschetten as available 8x400,410,420,430,440,450,460,480,490,510,520,530,540,550,560,570,580,590,600,610,620,640mm Twinlock 16x440mm; 9x490,500,520,580,640mm; 8x590,620mm
Zusätzliche Informationen Materials: BOPP, PET, LDPE, NYLON, Cellophane Speed 250m/min Cantilever system to work with sleeves Sleeves and twinlocks Automatic positioning & adjustement of all print stations Lateral side register tolerance +/- 5mm Fire safety - CO2 Automatic extinguishing system-bottles excluded Cylinder width 1000mm With motorized longitudinal register Banana rolls, 1 pcs Clich holder hoist lifting Electrical hoists, 3 pcs Plate mounting machine included Rack for sleeves storage included PLC revamp to Siemens S7 done Ink cooling Gears 8x330,340,350,360,370,380,390,400,410,420,430,435 ; 10x440,450; 8x 460; 10x470,480,490,500,510,520 ;8x 530,540,550,560,570,580,590,600,610,620mm

Andere in der gleichen Kategorie:

203085 - FLEXOTECNICA KBA EVOXD

FLEXOTECNICA KBA EVOXD

Kategorie: Printing machines

Unterkategorie: Flexo CI

Druckbreite (mm): 1270

Baujahr: 2016

183992 - FLEXOTECNICA 10NG

FLEXOTECNICA 10NG

Kategorie: Printing machines

Unterkategorie: Flexo CI

Druckbreite (mm): 1200

Baujahr: 2009

151999 - PCMC VISION G

PCMC VISION G

Kategorie: Printing machines

Unterkategorie: Flexo CI

Druckbreite (mm): 900

Baujahr: 2005

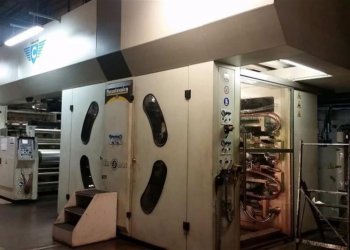

194065 - FLEXOTECNICA CHRONOS
