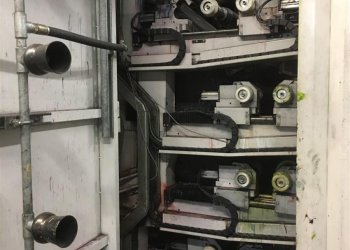

COMEXI FP GL 1808 Flexodruck Maschine 8 farben

Maschinencode
FL735
Hersteller
COMEXI
Modello
FP GL 1808
Baujahr
2002
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
680
Unwinder type
TURRET WITH SPLICE
Max reel diameter unwinder (mm)
800
Rewinder type
TURRET WITH SPLICE
Max reel diameter rewinder (mm)
800
Drying
2 zone drying 4 fans 2 gas burners drying lenght 7.2 mtrs
Videocamera
AVT Genius
Corona treatment
Albrandt
Web guides
BST
Vyscosity control
Inelme automatic
Washing system
Semi automatic
Inking system
Closed chabers doctor blades
Anilox
14 as follows: 2x10.8V;1x10V;1x14V;1x11V;1x6.5V;1x6V;2x9V;1x4.2V;4x3.4V
Print Sleeves
218 as follows: 16x375,380, 480,500; 8x385,455,470,520,530,535,560,570,580,590,610,630mm; 10x460,510mm; 14x540mm
Note
mechanical speed 350 m/min Inline slitting, blades and roller , no extract fan Materials LDPE, OPP, CPP
Maschinencode FL735
Hersteller COMEXI
Modello FP GL 1808
Baujahr 2002
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 680
Unwinder type TURRET WITH SPLICE
Max reel diameter unwinder (mm) 800
Rewinder type TURRET WITH SPLICE
Max reel diameter rewinder (mm) 800
Drying 2 zone drying 4 fans 2 gas burners drying lenght 7.2 mtrs
Videocamera AVT Genius
Corona treatment Albrandt
Web guides BST
Vyscosity control Inelme automatic
Washing system Semi automatic
Inking system Closed chabers doctor blades
Anilox 14 as follows: 2x10.8V;1x10V;1x14V;1x11V;1x6.5V;1x6V;2x9V;1x4.2V;4x3.4V
Print Sleeves 218 as follows: 16x375,380, 480,500; 8x385,455,470,520,530,535,560,570,580,590,610,630mm; 10x460,510mm; 14x540mm
Note mechanical speed 350 m/min Inline slitting, blades and roller , no extract fan Materials LDPE, OPP, CPP
** SOLD **
