- Maschinencode
- FL1012
- Hersteller
- UTECO
- Modello
- DIAMOND HP 108
- Baujahr
- 2009
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 850
- Unwinder type
- Turret Automatic non stop
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic non stop
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , double tunnel 2x 3 mt , 2 gas burners . Automatic air recirculation system with LEL control
- Videocamera
- Yes BST
- Corona treatment
- Yes driven
- Web guides
- Yes in and out
- Vyscosity control
- Yes
- Washing system
- YES
- Inking system
- Closed chamber doctor blades
- Anilox
- 15 ceramic anilox sleeves
| Maschinencode | FL1012 |
| Hersteller | UTECO |
| Modello | DIAMOND HP 108 |
| Baujahr | 2009 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret Automatic non stop |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , double tunnel 2x 3 mt , 2 gas burners . Automatic air recirculation system with LEL control |
| Videocamera | Yes BST |
| Corona treatment | Yes driven |
| Web guides | Yes in and out |
| Vyscosity control | Yes |
| Washing system | YES |
| Inking system | Closed chamber doctor blades |
| Anilox | 15 ceramic anilox sleeves |
FLEXOTECNICA 10NG
-
Maschinencode: FL0632
-
Baujahr: 2009
-
Web width (mm): 1260
COMEXI TAGA 1500 RM
-
Maschinencode: FL1140
-
Baujahr: 1989
-
Web width (mm): 1250
COMEXI TAGA 1000 4/120
-
Maschinencode: FL1112
-
Baujahr: 1980
-
Web width (mm): 1250
FISCHER & KRECKE 16 S
-
Maschinencode: FL1086
-
Baujahr: 2002
-
Web width (mm): 1150

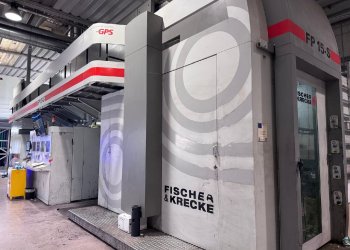

BOBST FISCHER & KRECKE FK 15 S
-
Maschinencode: FL1170
-
Baujahr: 2011
-
Web width (mm): 1320
BONARDI M7
-
Maschinencode: FL1136
-
Baujahr: 2020
-
Web width (mm): 1400
