- Codice Macchina
- CB-CM15
- Manufacturer
- MARTIN
- Modello

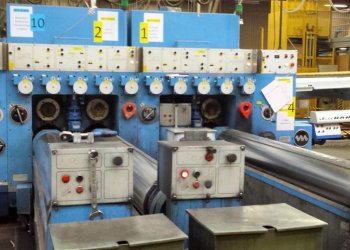

- MIDLINE 924 -4 COLORS
- Year
- 1988
- Rinnovo
- 2013
- Larghezza nominale (mm)
- 2400
- Massima larghezza foglio (mm)
- 900
- Massima lunghezza foglio (mm)
- 2400
- Gearless
- No
- Massimo spessore cartone (mm)
- 9mm
- Velocità (scatole/ora)
- 18000
- Sistema di set up
- rapid set
- Gruppo stampa
- Yes
- Numero colori di stampa
- 4
- Sistema d'inchiostro
- pump
- Taglierina rotativa
- Yes
- Slotter unit
- yes
- Unità taglio
- yes
- Unità piega e incolla
- yes
- Punti colla
- 2
- Contatore
- yes
- Ulteriori informazioni
- Year: 1988 ( revised in 2013) Minimum format: 600 x 400. Maximum size: 2400 x 900. Thickness of clichés: 3,2mm. Maximum speed: 18,000 passages. Machine in excellent condition and still in production. Available January 2017. Configuration 924: 4 colors Rapidset. 2 Applicators glue nozzle + Control presence and length Container Technics. Removable Rotary Cutter Print station 1 and 3 with chambered doctor blade, print station 2 and 4 with rubber cylinder. Machine revised in 2013. New MPC2 for adjustment of the machine. Introducer with rotary valve + new vacuum pump. New drive on the slotter group. New generation of box six axes (slotter). Belt the settings to the folder tabs on the fly (new PIP ). Various parts of mechanical and electrical parts to have a screen roller and a rubber cylinder and an introduction cylinder.
| Codice Macchina | CB-CM15 |
| Manufacturer | MARTIN |
| Modello | MIDLINE 924 -4 COLORS |
| Year | 1988 |
| Rinnovo | 2013 |
| Larghezza nominale (mm) | 2400 |
| Massima larghezza foglio (mm) | 900 |
| Massima lunghezza foglio (mm) | 2400 |
| Gearless | No |
| Massimo spessore cartone (mm) | 9mm |
| Velocità (scatole/ora) | 18000 |
| Sistema di set up | rapid set |
| Gruppo stampa | Yes |
| Numero colori di stampa | 4 |
| Sistema d'inchiostro | pump |
| Taglierina rotativa | Yes |
| Slotter unit | yes |
| Unità taglio | yes |
| Unità piega e incolla | yes |
| Punti colla | 2 |
| Contatore | yes |
| Ulteriori informazioni | Year: 1988 ( revised in 2013) Minimum format: 600 x 400. Maximum size: 2400 x 900. Thickness of clichés: 3,2mm. Maximum speed: 18,000 passages. Machine in excellent condition and still in production. Available January 2017. Configuration 924: 4 colors Rapidset. 2 Applicators glue nozzle + Control presence and length Container Technics. Removable Rotary Cutter Print station 1 and 3 with chambered doctor blade, print station 2 and 4 with rubber cylinder. Machine revised in 2013. New MPC2 for adjustment of the machine. Introducer with rotary valve + new vacuum pump. New drive on the slotter group. New generation of box six axes (slotter). Belt the settings to the folder tabs on the fly (new PIP ). Various parts of mechanical and electrical parts to have a screen roller and a rubber cylinder and an introduction cylinder. |
