- Codice Macchina
- EC56
- Manufacturer
- S.A.M.
- Year
- 2000
- Rinnovo
- Several upgrades and renovations up to 2025. As example 2 x extrusion heads Cloren year 2023, 2x NDC thickness gauges y 2013, Thickness control NDC year 2023, Gerenalr contral PLC and HMI upgrade
- Larghezza (mm)
- 1250
- Unità di spalmatura / accoppiamento
- 4 units: 1- gravure coater, 2- extrusion lamination, 3- gravure coater, 4 extrusion lamination
- Unita di spalmatura / accoppiamento 1

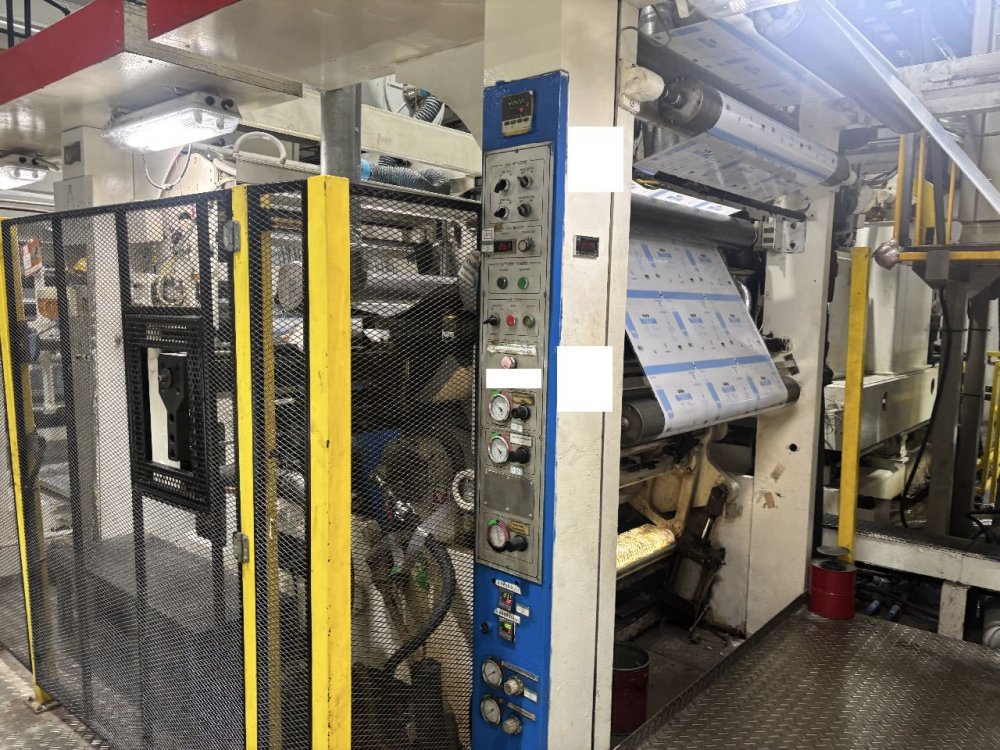

- Gravure coater. Double drying hood drying length 3m. Electric heated; 2 X in-blowers, 1 x suction blower,
- Unita di spalmatura / accoppiamento 2

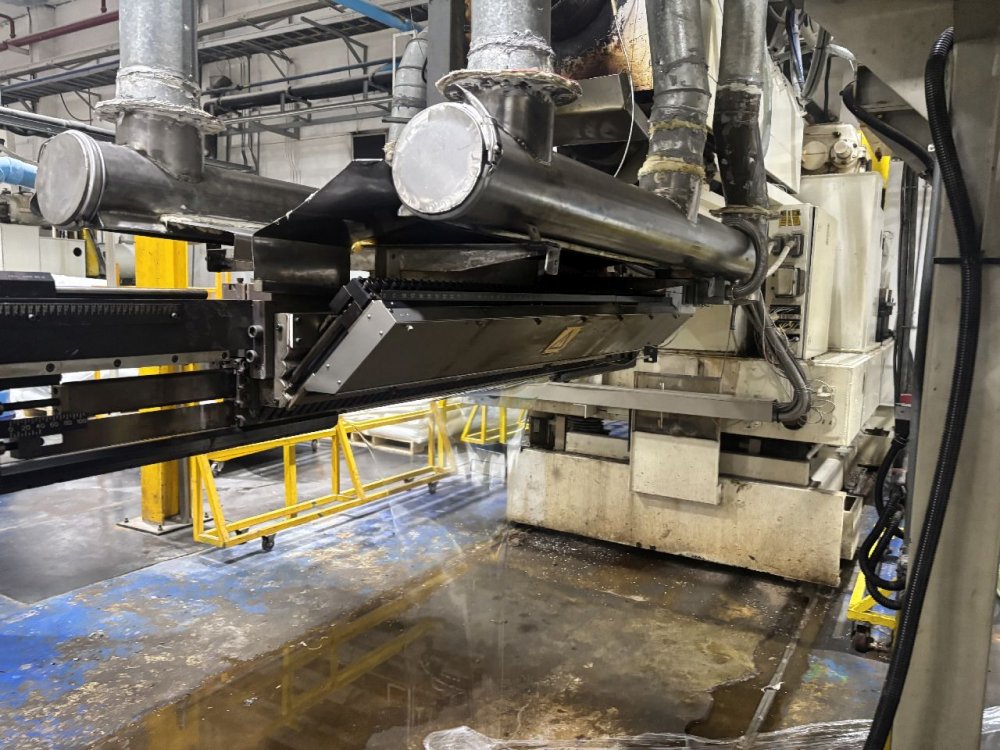

- Extrusion lamination unit: - Gravimetri blender -extruder diameter 90mm - Die Make Cloren, Year 2023 with internal deckling and automatic profile control via thermal bolts - Chill roll 7500mm diam. Width 1350mm. spares with different finishing available - Lamination nip - Duplex type of cooling roller: The spiral fin on the surface of inner core to obtain uniformity of temperature by fast water flow
- Unita di spalmatura / accoppiamento 3
- Gravure coater. Double drying hood
- Unita di spalmatura / accoppiamento 4
- Extrusion lamination unit: - Gravimetri blender -extruder diameter 90mm - Die Make Cloren, Year 2023 with internal deckling and automatic profile control via thermal bolts - Chill roll 7500mm diam. Width 1350mm. spares with different finishing available - Lamination nip - Duplex type of cooling roller: The spiral fin on the surface of inner core to obtain uniformity of temperature by fast water flow
- Trattamento
- 1x Mero
- Descrizione svolgitore primario
- Turret, flying splice, 1000mm diameter, AC vector motors
- Descrizione svolgitore secondario
- Turret, flying splice, AC vector motors
- 3rd unwinder description
- Turret, flying splice, AC vector motors

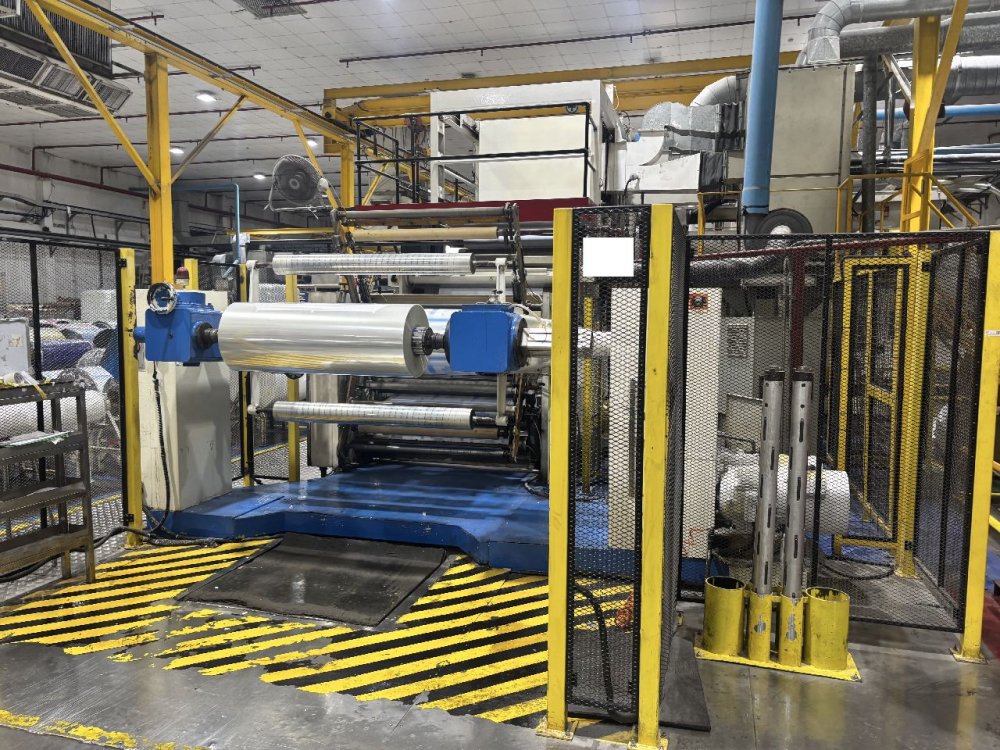

- Descrizione avvolgitore
- Turret, flying splice, 1000mm diameter. AC vector motors
- Struttura del prodotto / Materiali
- Several posible structures for flexible packaging. As follows only some example of the many structures it run in past: - PET/PE/VMPET/PE/LLDPE - PET/PE/ALU/PE/L-LDPE - matt PET/PE/ALU/PE/LLDPE - PET/PE+MB/VMPET/SPECIAL PE - PET/PE/VMPET/PE - PET/PE+MB/SEMI VMPET/ADH/LDPE - PA/PE/LLDPE - OPP/PP/DRY/CPP - OPP/PP/PP/DRY/CPP - OPP/PE/DRY/CPP - OPP/PE/LDPE - OPP/PE/VMOPP/PE/LDPE (MONO) - OPP+NURACEL/VMOPP/PE+SPECIALTIES - matt OPP/PE/VMOPP/PE (MONO)
- Ulteriori informazioni

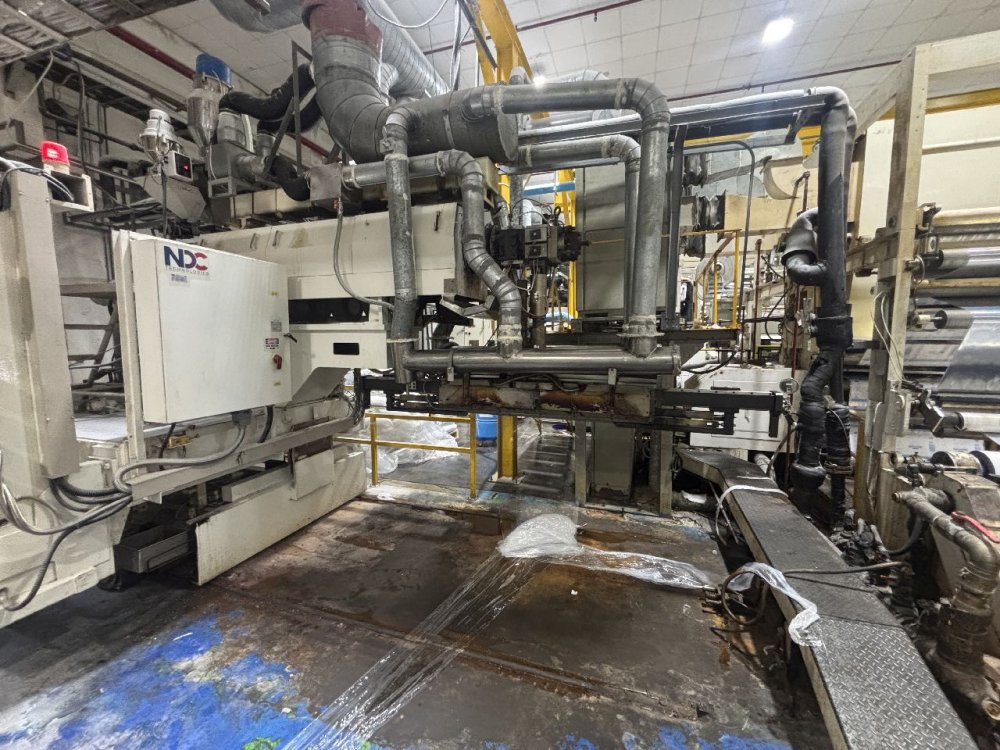

- Thickness control system: - 2x NDC Beta rays (Kr85) year 2013 - NDC thickness profile control Edge trim Dust collector
| Codice Macchina | EC56 |
| Manufacturer | S.A.M. |
| Year | 2000 |
| Rinnovo | Several upgrades and renovations up to 2025. As example 2 x extrusion heads Cloren year 2023, 2x NDC thickness gauges y 2013, Thickness control NDC year 2023, Gerenalr contral PLC and HMI upgrade |
| Larghezza (mm) | 1250 |
| Unità di spalmatura / accoppiamento | 4 units: 1- gravure coater, 2- extrusion lamination, 3- gravure coater, 4 extrusion lamination |
| Unita di spalmatura / accoppiamento 1 | Gravure coater. Double drying hood drying length 3m. Electric heated; 2 X in-blowers, 1 x suction blower, |
| Unita di spalmatura / accoppiamento 2 | Extrusion lamination unit: - Gravimetri blender -extruder diameter 90mm - Die Make Cloren, Year 2023 with internal deckling and automatic profile control via thermal bolts - Chill roll 7500mm diam. Width 1350mm. spares with different finishing available - Lamination nip - Duplex type of cooling roller: The spiral fin on the surface of inner core to obtain uniformity of temperature by fast water flow |
| Unita di spalmatura / accoppiamento 3 | Gravure coater. Double drying hood |
| Unita di spalmatura / accoppiamento 4 | Extrusion lamination unit: - Gravimetri blender -extruder diameter 90mm - Die Make Cloren, Year 2023 with internal deckling and automatic profile control via thermal bolts - Chill roll 7500mm diam. Width 1350mm. spares with different finishing available - Lamination nip - Duplex type of cooling roller: The spiral fin on the surface of inner core to obtain uniformity of temperature by fast water flow |
| Trattamento | 1x Mero |
| Descrizione svolgitore primario | Turret, flying splice, 1000mm diameter, AC vector motors |
| Descrizione svolgitore secondario | Turret, flying splice, AC vector motors |
| 3rd unwinder description | Turret, flying splice, AC vector motors |
| Descrizione avvolgitore | Turret, flying splice, 1000mm diameter. AC vector motors |
| Struttura del prodotto / Materiali | Several posible structures for flexible packaging. As follows only some example of the many structures it run in past: - PET/PE/VMPET/PE/LLDPE - PET/PE/ALU/PE/L-LDPE - matt PET/PE/ALU/PE/LLDPE - PET/PE+MB/VMPET/SPECIAL PE - PET/PE/VMPET/PE - PET/PE+MB/SEMI VMPET/ADH/LDPE - PA/PE/LLDPE - OPP/PP/DRY/CPP - OPP/PP/PP/DRY/CPP - OPP/PE/DRY/CPP - OPP/PE/LDPE - OPP/PE/VMOPP/PE/LDPE (MONO) - OPP+NURACEL/VMOPP/PE+SPECIALTIES - matt OPP/PE/VMOPP/PE (MONO) |
| Ulteriori informazioni | Thickness control system: - 2x NDC Beta rays (Kr85) year 2013 - NDC thickness profile control Edge trim Dust collector |
