- Codice Macchina
- EC37
- Manufacturer
- DOLCI EXTRUSION
- Year
- 2011
- Rinnovo
- Machine has very little use and good maintenance. conditions near to new
- Larghezza (mm)
- 1100
- Unità di spalmatura / accoppiamento
- 3
- Unita di spalmatura / accoppiamento 1

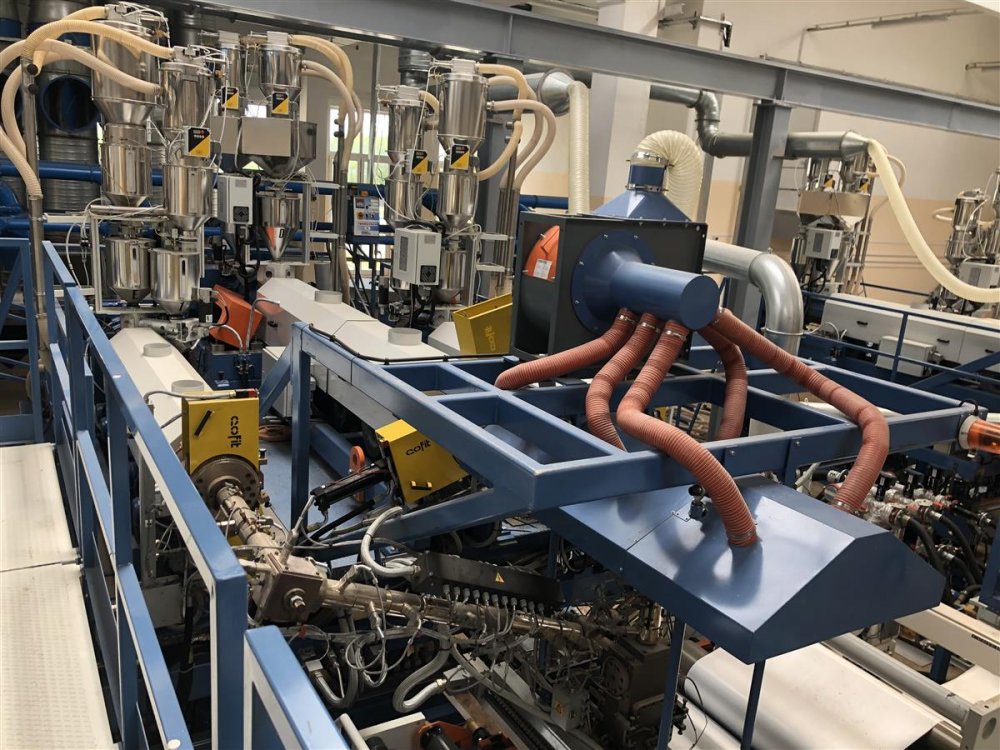

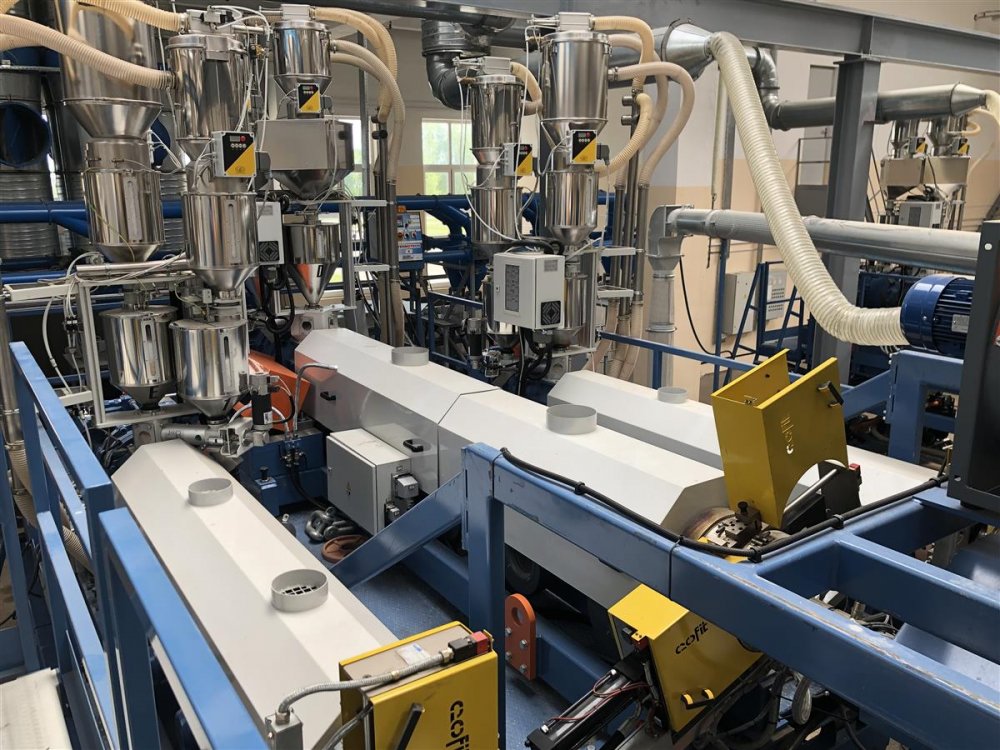

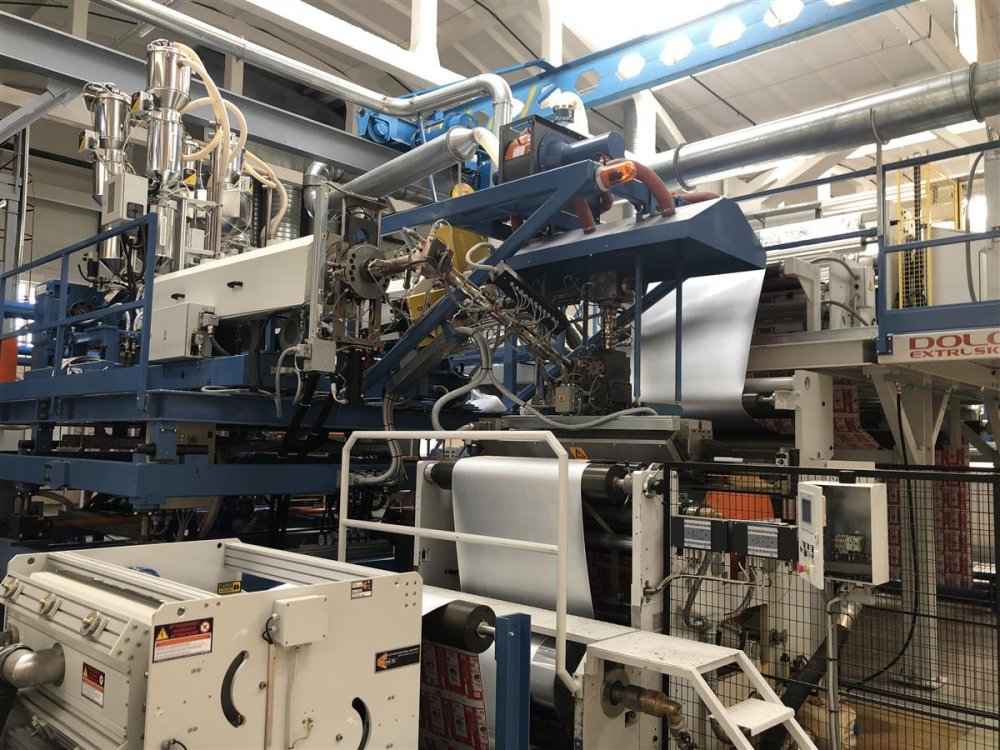

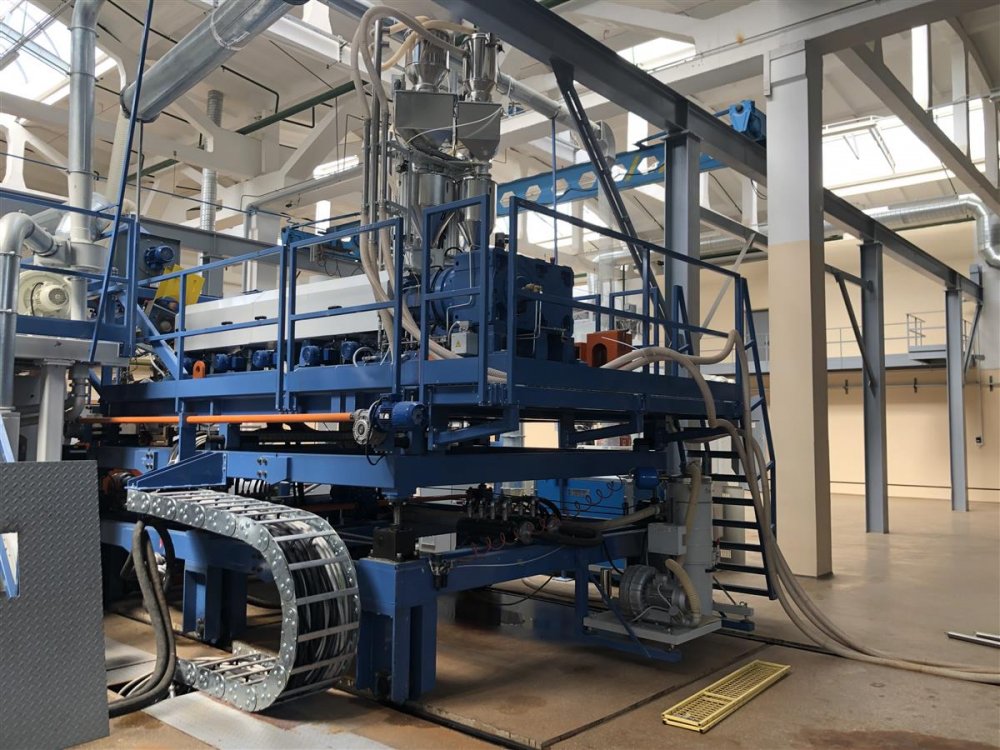

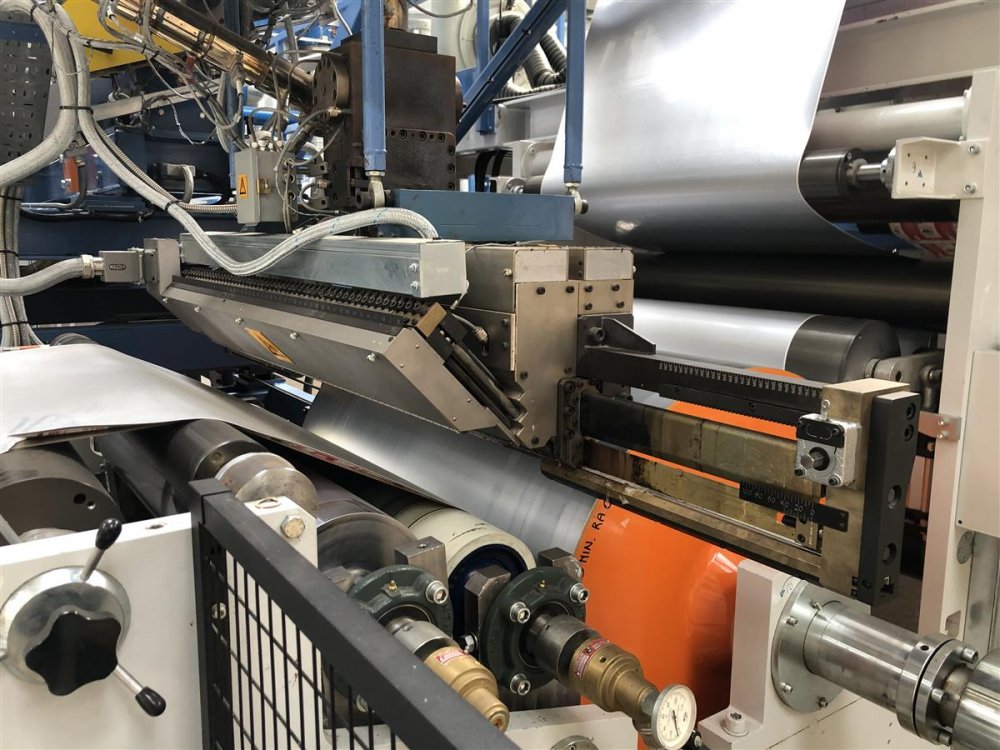

- 2x gravimetric dosing units 2 components make Innoplast; Extruder diam 130 mm hydraulic screen changer AC motor; Extruder diam 90 mm hydraulic screen changer AC moto; flat extrusion die make Cloren with internal deckling system to deduce width down to 600mm width, automatic die via flex lip and thermal bolts (48+4 thermobolts); Chill roll diam 1000mm, chrome plated, semi mat finish, edge trimming with Aertecnica Croci edge suction and compact device
- Unita di spalmatura / accoppiamento 2
- Lamination unit; 3x gravimetric dosing units 2 components make Innoplast; 1x Extruder diam120 mm hydraulic screen changer AC motor; 2x Extruder diam 75 mm hydraulic screen changer AC moto; flat extrusion die make Cloren with internal deckling system to deduce width down to 600mm width, automatic die via flex lip and thermal bolts (48+4 thermobolts); Chill roll diam 1000mm, chrome plated, semi mat finish, edge trimming with Aertecnica Croci edge suction and compact device; lamination device; turret alu foil secondary unwinder
- Unita di spalmatura / accoppiamento 3
- 2x gravimetric dosing units 2 components make Innoplast; Extruder diam 130 mm hydraulic screen changer AC motor; Extruder diam 90 mm hydraulic screen changer AC moto; flat extrusion die make Cloren with internal deckling system to deduce width down to 600mm width, automatic die via flex lip and thermal bolts (48+4 thermobolts); Chill roll diam 1000mm, chrome plated, semi mat finish, edge trimming with Aertecnica Croci edge suction and compact device
- Trattamento
- 1 x double side corona treatment MERO; 1x double single corona treatment MERO; 1x Flame treatment ESSECI gas fired, chill roll diam 350mm, water termo regulation unit
- Descrizione svolgitore primario

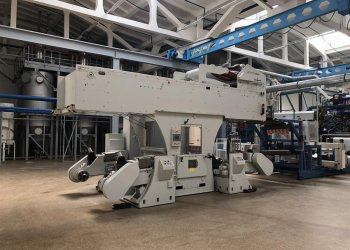

- automatic shaftless with reel loading from floor type BUTT-splice max diam 1500mm
- Descrizione svolgitore secondario
- turret automatic diam 800mm
- Descrizione avvolgitore
- turret automatic shaftless max diam 1800mm
- Velocità
- 600m/min mechanical
- Struttura del prodotto / Materiali
- line for aseptic packaging. Board up to 400 gsm, Alluminium foil 6,5-20my. Polymers, LDPE, LLDPE, EAA, EMA,Surlin, Yonomers
- Ulteriori informazioni

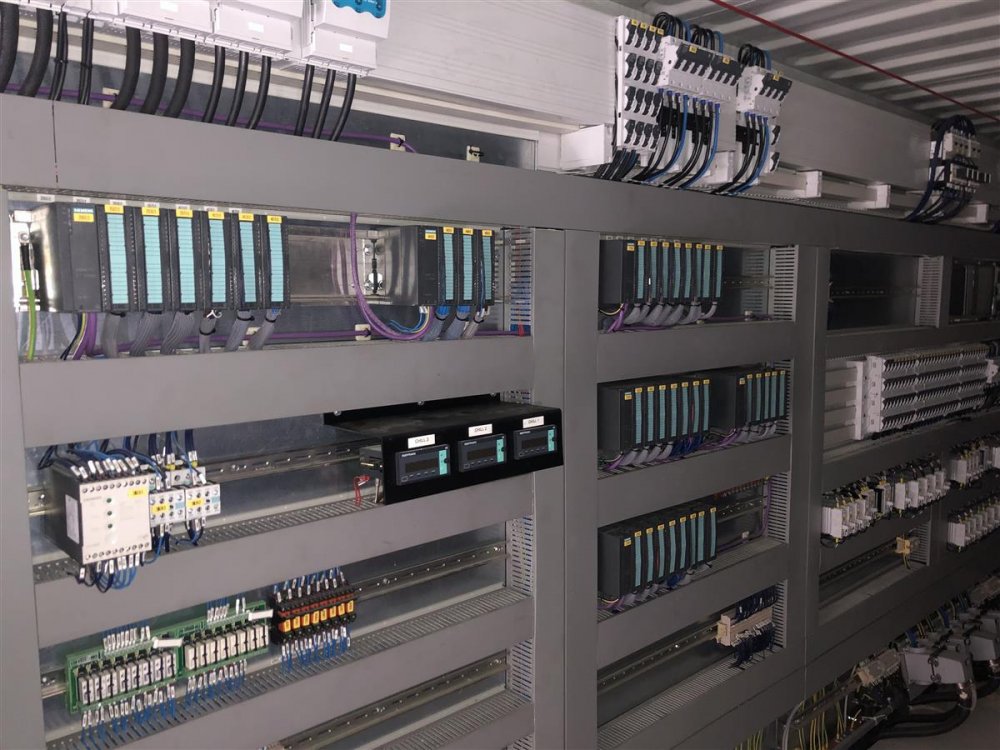

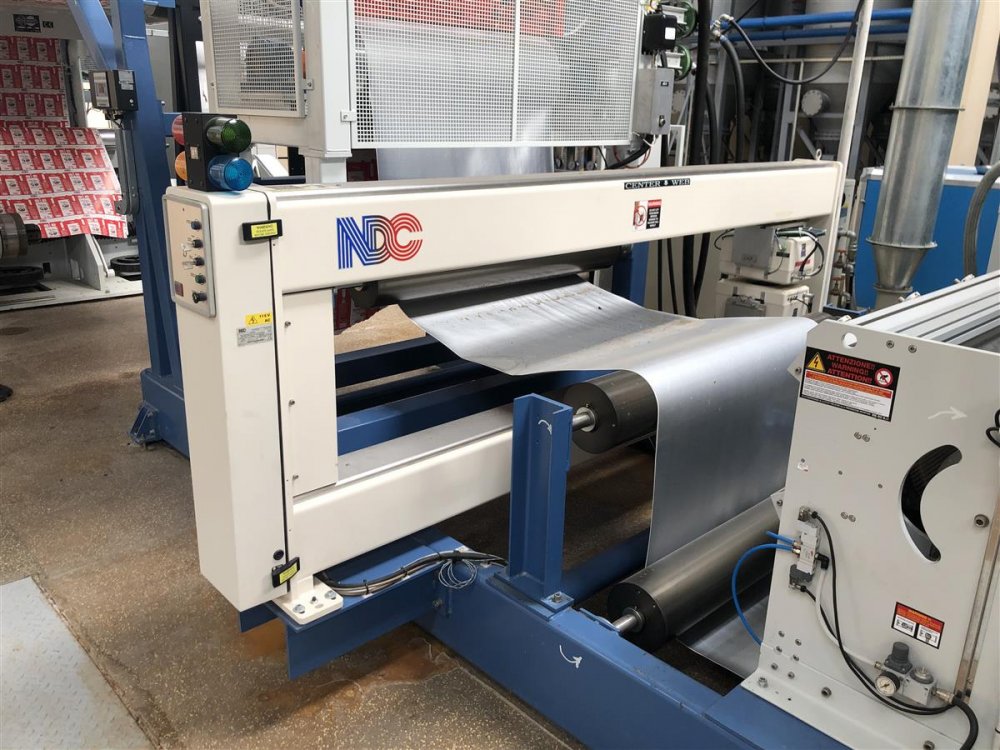

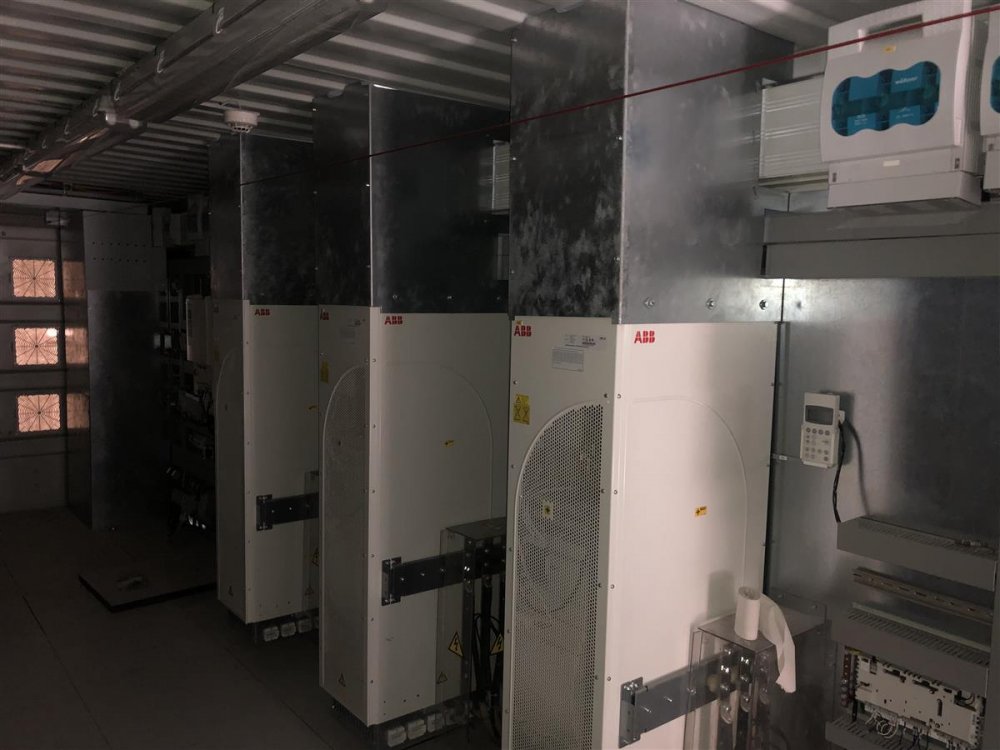

- - Automatic thickness control system: 3 thickness gauges make NDC. 2x x-rays, 1x both x-rays and infra-red. 3 extrusion dies with automatic thickness control - Chilled water pumping system for the whole line (in closed loop) - Water chiller - 3 units aertecnica croci for edge trim suction and compression - Siemens S7 PLC, ABB inverters - Overhead bridge cranes
Codice Macchina | EC37 |
Manufacturer | DOLCI EXTRUSION |
Year | 2011 |
Rinnovo | Machine has very little use and good maintenance. conditions near to new |
Larghezza (mm) | 1100 |
Unità di spalmatura / accoppiamento | 3 |
Unita di spalmatura / accoppiamento 1 | 2x gravimetric dosing units 2 components make Innoplast; Extruder diam 130 mm hydraulic screen changer AC motor; Extruder diam 90 mm hydraulic screen changer AC moto; flat extrusion die make Cloren with internal deckling system to deduce width down to 600mm width, automatic die via flex lip and thermal bolts (48+4 thermobolts); Chill roll diam 1000mm, chrome plated, semi mat finish, edge trimming with Aertecnica Croci edge suction and compact device |
Unita di spalmatura / accoppiamento 2 | Lamination unit; 3x gravimetric dosing units 2 components make Innoplast; 1x Extruder diam120 mm hydraulic screen changer AC motor; 2x Extruder diam 75 mm hydraulic screen changer AC moto; flat extrusion die make Cloren with internal deckling system to deduce width down to 600mm width, automatic die via flex lip and thermal bolts (48+4 thermobolts); Chill roll diam 1000mm, chrome plated, semi mat finish, edge trimming with Aertecnica Croci edge suction and compact device; lamination device; turret alu foil secondary unwinder |
Unita di spalmatura / accoppiamento 3 | 2x gravimetric dosing units 2 components make Innoplast; Extruder diam 130 mm hydraulic screen changer AC motor; Extruder diam 90 mm hydraulic screen changer AC moto; flat extrusion die make Cloren with internal deckling system to deduce width down to 600mm width, automatic die via flex lip and thermal bolts (48+4 thermobolts); Chill roll diam 1000mm, chrome plated, semi mat finish, edge trimming with Aertecnica Croci edge suction and compact device |
Trattamento | 1 x double side corona treatment MERO; 1x double single corona treatment MERO; 1x Flame treatment ESSECI gas fired, chill roll diam 350mm, water termo regulation unit |
Descrizione svolgitore primario | automatic shaftless with reel loading from floor type BUTT-splice max diam 1500mm |
Descrizione svolgitore secondario | turret automatic diam 800mm |
Descrizione avvolgitore | turret automatic shaftless max diam 1800mm |
Velocità | 600m/min mechanical |
Struttura del prodotto / Materiali | line for aseptic packaging. Board up to 400 gsm, Alluminium foil 6,5-20my. Polymers, LDPE, LLDPE, EAA, EMA,Surlin, Yonomers |
Ulteriori informazioni | - Automatic thickness control system: 3 thickness gauges make NDC. 2x x-rays, 1x both x-rays and infra-red. 3 extrusion dies with automatic thickness control - Chilled water pumping system for the whole line (in closed loop) - Water chiller - 3 units aertecnica croci for edge trim suction and compression - Siemens S7 PLC, ABB inverters - Overhead bridge cranes |
