3 strati REIFENHAUSER Estrusore cast / a testa piana

Codice Macchina
CA248
Manufacturer
REIFENHAUSER
Year
1991
Numero di strati
3
Rinnovo
several upgrades and renovations during years, very good maintenance
Materiali
CPP
Larghezza film (mm)
1550
Rif strati estrusore 1:
A
Screw diam 1
70mm
Description 1
RH 551-1-70-30 diam:70 mm L/D30
Rif strati estrusore 2:
B
Screw diam 2
120mm
Description 2
RH 1651-1-120-30: diam 120mm L/D30
Rif strati estrusore 3:
C
Screw diam 3
50mm
Description 3
RH 241-1-50-25: diam 50mm L/D25
Die width (mm)
1900mm

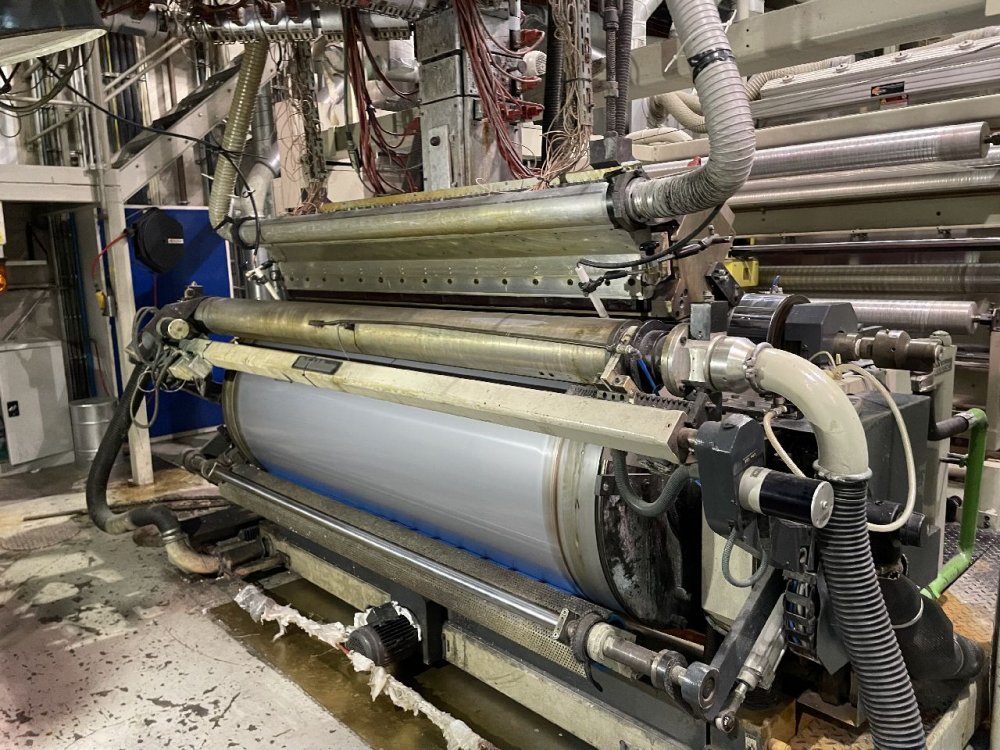

Unità chill roll
diam 800mm
Controllo di spessore
Automatich thickness control
Trattamento Corona
2 x Mero MR/B 20K-IGBT

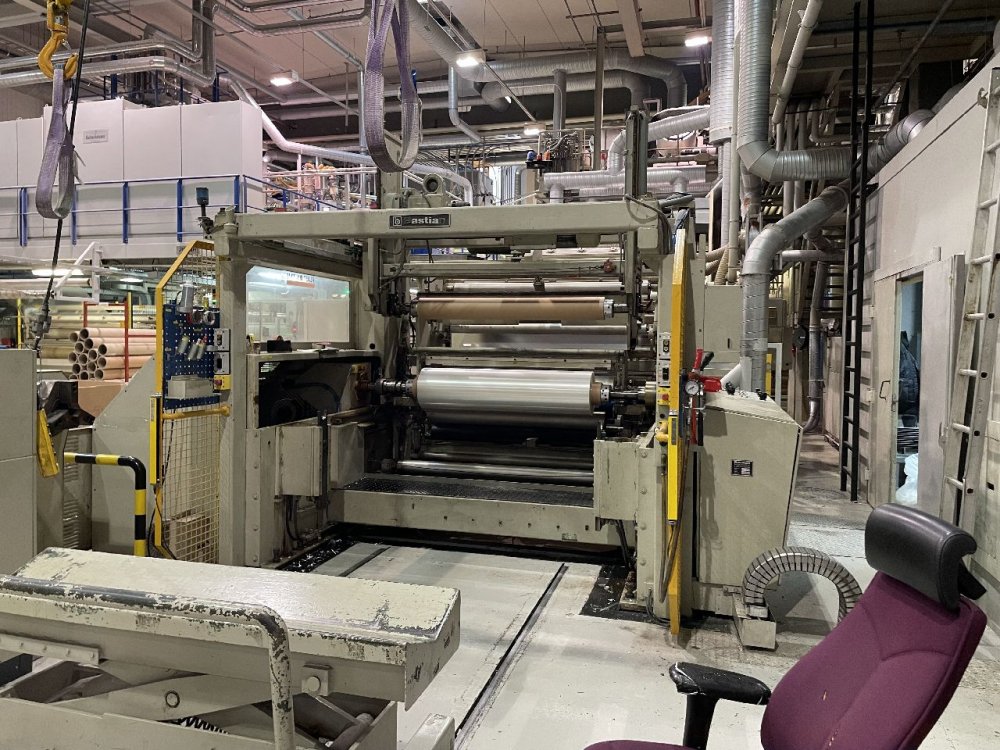

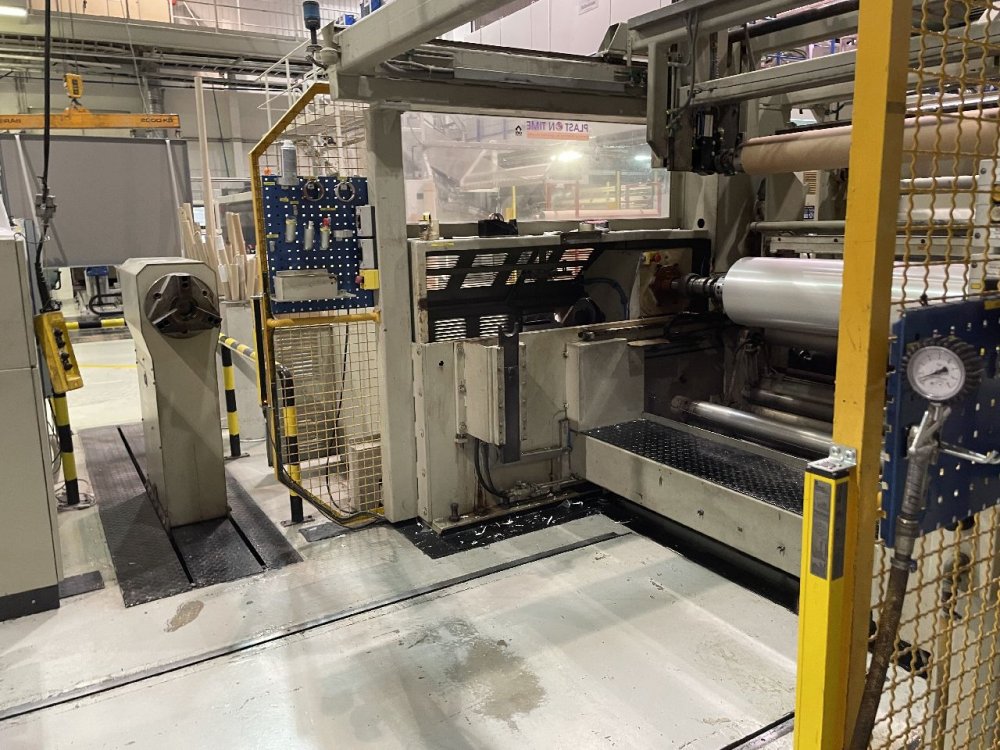

Rewinder max reel diameter (mm)
1000
Ulteriori informazioni
-No layer edge refeding extruder feeding screw: 90mm -Line speed max 200 m/min, elecrical limitation 120 m/min -Output max 376kg/h -Thickness gauge Lipke Measuring system 4012 O-I/QM, beta rays kr-85 source
Codice Macchina CA248
Manufacturer REIFENHAUSER
Year 1991
Numero di strati 3
Rinnovo several upgrades and renovations during years, very good maintenance
Materiali CPP
Larghezza film (mm) 1550
Rif strati estrusore 1: A
Screw diam 1 70mm
Description 1 RH 551-1-70-30 diam:70 mm L/D30
Rif strati estrusore 2: B
Screw diam 2 120mm
Description 2 RH 1651-1-120-30: diam 120mm L/D30
Rif strati estrusore 3: C
Screw diam 3 50mm
Description 3 RH 241-1-50-25: diam 50mm L/D25
Die width (mm) 1900mm
Unità chill roll diam 800mm
Controllo di spessore Automatich thickness control
Trattamento Corona 2 x Mero MR/B 20K-IGBT
Rewinder max reel diameter (mm) 1000
Ulteriori informazioni -No layer edge refeding extruder feeding screw: 90mm -Line speed max 200 m/min, elecrical limitation 120 m/min -Output max 376kg/h -Thickness gauge Lipke Measuring system 4012 O-I/QM, beta rays kr-85 source
