- Codice Macchina
- CA017
- Manufacturer
- PRANDI
- Year
- 1984
- Numero di strati
- 1
- Materiali
- CPP
- Larghezza film (mm)
- 2000
- Output (Kg/h)
- 350 kg/h gross output
- Screw diam 1
- 160
- Descrizione testa
- fixed extrusion die manual adjustment,
- Die width (mm)
- 2300
- Unità chill roll

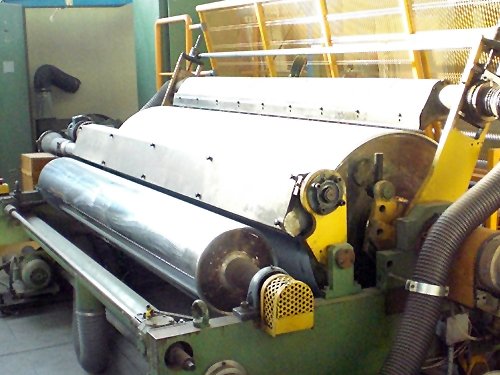

- Head: manual adjustment, air and smoke suction by fan and encapsulating hood\r\nChill roll: with two cylinders (diameter 750 and 300 mm UNION SELECT width 2400 mm, independent thermoregulation units for the two cylinders, rubber-covered pressure roller and brush cleaner; Thickness : 25 to 250 micron ;edge pinning system by air;
- Controllo di spessore
- Electronic system thickness mesurement;
- Trattamento Corona

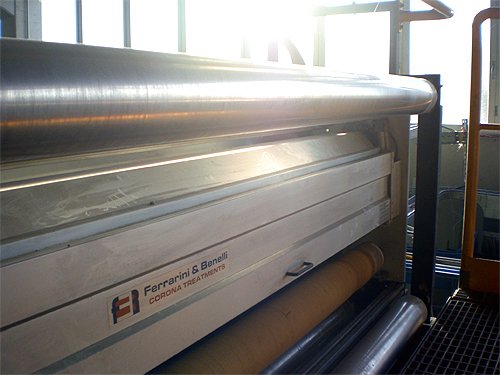

- single-face corona treatment unit, FERRARINI & BENELLI
- Guida film
- E+L
- Rewinder max reel diameter (mm)
- 800
- Descrizione avvolgitore

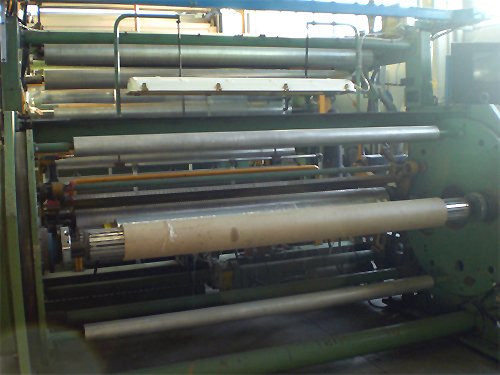

- TURRET winder , transversal guillotine cut, control device: PLC Siemens
- Ulteriori informazioni
- In line slitting;automatic hopper loader (without dosing systems);air and smoke suction by fan and enca;side-slip unit ERHARDT + LEIMER;motor-drrevolver-type winder with lay-on roller and contact carriage, transversal guillotine cut, max. reel diameter 800 mmiven haul-off unit and trimming group with 4 rotary blades;control device: PLC Siemens
Codice Macchina | CA017 |
Manufacturer | PRANDI |
Year | 1984 |
Numero di strati | 1 |
Materiali | CPP |
Larghezza film (mm) | 2000 |
Output (Kg/h) | 350 kg/h gross output |
Screw diam 1 | 160 |
Descrizione testa | fixed extrusion die manual adjustment, |
Die width (mm) | 2300 |
Unità chill roll | Head: manual adjustment, air and smoke suction by fan and encapsulating hood\r\nChill roll: with two cylinders (diameter 750 and 300 mm UNION SELECT width 2400 mm, independent thermoregulation units for the two cylinders, rubber-covered pressure roller and brush cleaner; Thickness : 25 to 250 micron ;edge pinning system by air; |
Controllo di spessore | Electronic system thickness mesurement; |
Trattamento Corona | single-face corona treatment unit, FERRARINI & BENELLI |
Guida film | E+L |
Rewinder max reel diameter (mm) | 800 |
Descrizione avvolgitore | TURRET winder , transversal guillotine cut, control device: PLC Siemens |
Ulteriori informazioni | In line slitting;automatic hopper loader (without dosing systems);air and smoke suction by fan and enca;side-slip unit ERHARDT + LEIMER;motor-drrevolver-type winder with lay-on roller and contact carriage, transversal guillotine cut, max. reel diameter 800 mmiven haul-off unit and trimming group with 4 rotary blades;control device: PLC Siemens |
