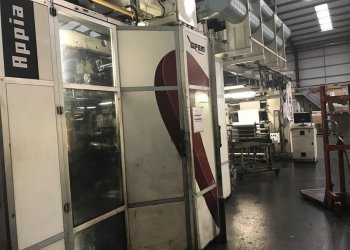

OFEM APPIA GL803 Macchina da stampa flexo 8 colori

Codice Macchina
FL866
Manufacturer
OFEM
Model
APPIA GL803
Year
2006
Numero di colori
8
Gearless
Yes
Cambio a maniche rapido
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Larghezza nastro (mm)
1270
Larghezza stampa (mm)
1200
Min print repeat (mm)
350
Max print repeat (mm)
850
Unwinder type
Unwind double positin with marriage rll drop splice
Diametro massimo svolgitore (mm)
800
Rewinder type
Turret Automatic flying splice
Max reel diameter rewinder (mm)
800
Essiccazione
2 zones , 4 fans , 2 gas burners
Videocamera
AVT Jupiter video inspection system
Guida film
BST edge guide
Vyscosity control
yes Norcross
Washing system
no
Sistema d'inchiostro
Sealed chamber doctor blades
Anilox
16 Ceramic anilox sleeves
Maniche stampa
8x360,380,400,410,440,460,480,500,500 ;540,550,615,660,680,700,745800,830,850; 8x 500 T. Lock ; 8x 515 T Lock ; 20x515 ; 16x580,760mm
Ulteriori informazioni
Inline slitting Carbon fiber print mandrels Reprint register control
Codice Macchina FL866
Manufacturer OFEM
Model APPIA GL803
Year 2006
Numero di colori 8
Gearless Yes
Cambio a maniche rapido Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Larghezza nastro (mm) 1270
Larghezza stampa (mm) 1200
Min print repeat (mm) 350
Max print repeat (mm) 850
Unwinder type Unwind double positin with marriage rll drop splice
Diametro massimo svolgitore (mm) 800
Rewinder type Turret Automatic flying splice
Max reel diameter rewinder (mm) 800
Essiccazione 2 zones , 4 fans , 2 gas burners
Videocamera AVT Jupiter video inspection system
Guida film BST edge guide
Vyscosity control yes Norcross
Washing system no
Sistema d'inchiostro Sealed chamber doctor blades
Anilox 16 Ceramic anilox sleeves
Maniche stampa 8x360,380,400,410,440,460,480,500,500 ;540,550,615,660,680,700,745800,830,850; 8x 500 T. Lock ; 8x 515 T Lock ; 20x515 ; 16x580,760mm
Ulteriori informazioni Inline slitting Carbon fiber print mandrels Reprint register control
** SOLD **
