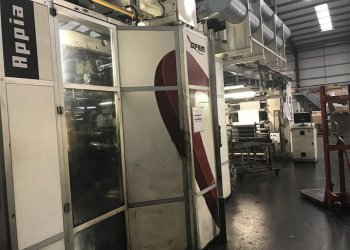

OFEM APPIA GL803 Impresora Flexo 8 colores

Código Máquina
FL866
Constructor
OFEM
Modello
APPIA GL803
Año
2006
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1200
Min print repeat (mm)
350
Max print repeat (mm)
850
Unwinder type
Unwind double positin with marriage rll drop splice
Max reel diameter unwinder (mm)
800
Rewinder type
Turret Automatic flying splice
Max reel diameter rewinder (mm)
800
Drying
2 zones , 4 fans , 2 gas burners
Videocamera
AVT Jupiter video inspection system
Web guides
BST edge guide
Vyscosity control
yes Norcross
Washing system
no
Inking system
Sealed chamber doctor blades
Anilox
16 Ceramic anilox sleeves
Print Sleeves
8x360,380,400,410,440,460,480,500,500 ;540,550,615,660,680,700,745800,830,850; 8x 500 T. Lock ; 8x 515 T Lock ; 20x515 ; 16x580,760mm
Note
Inline slitting Carbon fiber print mandrels Reprint register control
Código Máquina FL866
Constructor OFEM
Modello APPIA GL803
Año 2006
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1200
Min print repeat (mm) 350
Max print repeat (mm) 850
Unwinder type Unwind double positin with marriage rll drop splice
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic flying splice
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans , 2 gas burners
Videocamera AVT Jupiter video inspection system
Web guides BST edge guide
Vyscosity control yes Norcross
Washing system no
Inking system Sealed chamber doctor blades
Anilox 16 Ceramic anilox sleeves
Print Sleeves 8x360,380,400,410,440,460,480,500,500 ;540,550,615,660,680,700,745800,830,850; 8x 500 T. Lock ; 8x 515 T Lock ; 20x515 ; 16x580,760mm
Note Inline slitting Carbon fiber print mandrels Reprint register control
** SOLD **
