- Codice Macchina
- FL690
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- NOVOFLEX
- Year
- 2001
- Numero di colori
- 8
- Print possibilityes
- 8 olors printing + solventless lamination in line
- Rinnovo
- Upgraded few times
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes

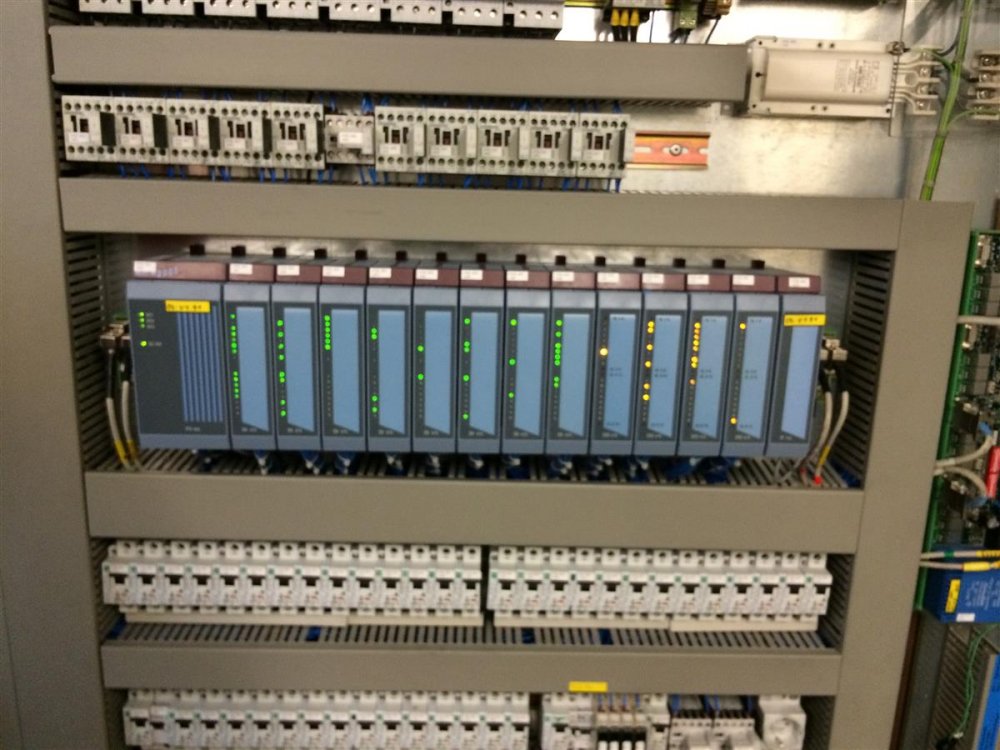

- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1050
- Larghezza stampa (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760

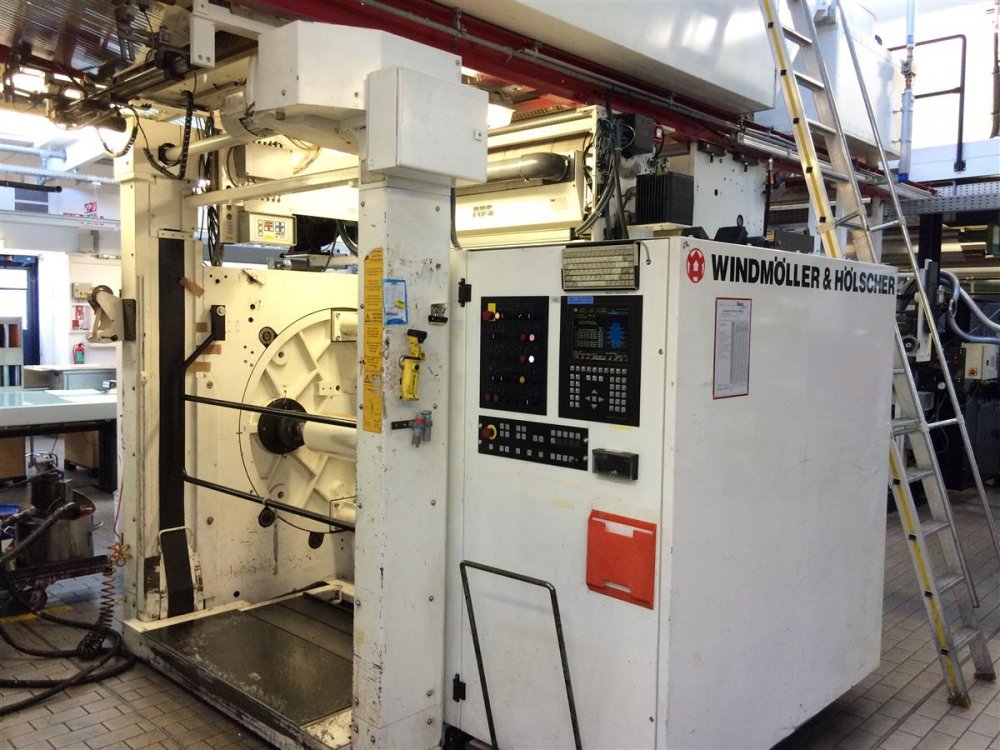

- Unwinder type
- Turret
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Videocamera

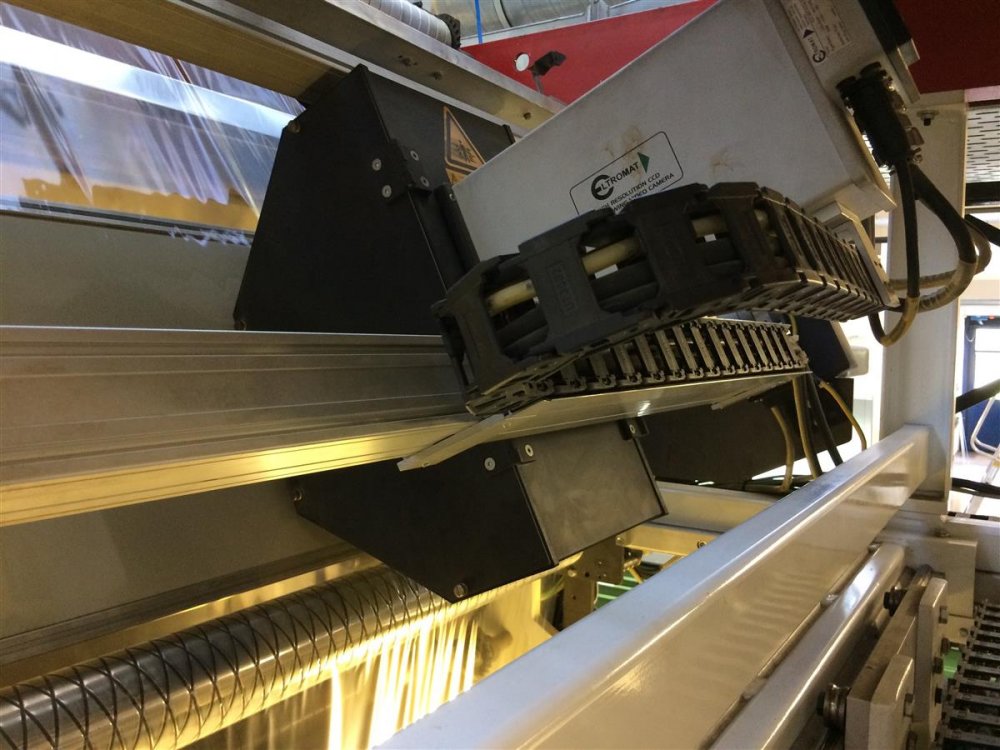

- Eltromat 3 ccd high resolution camera

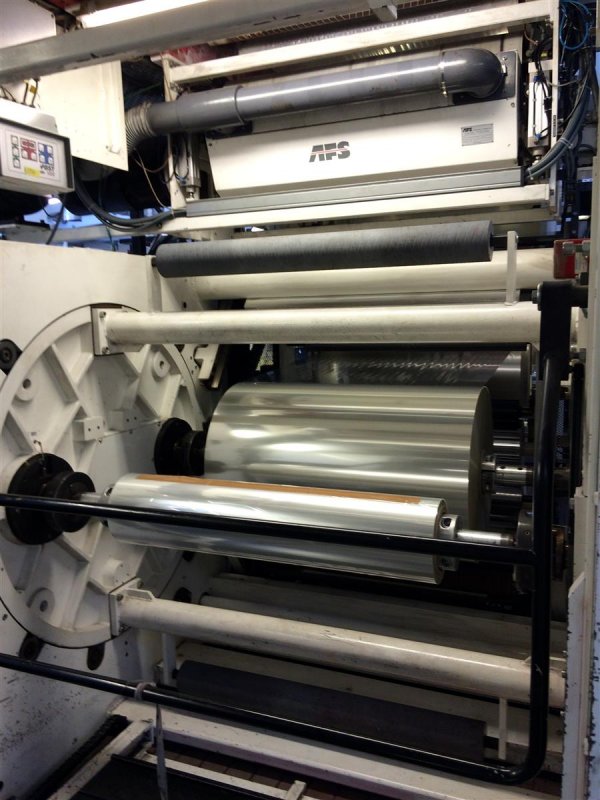

- Trattamento Corona
- AFS
- Guida film
- BST

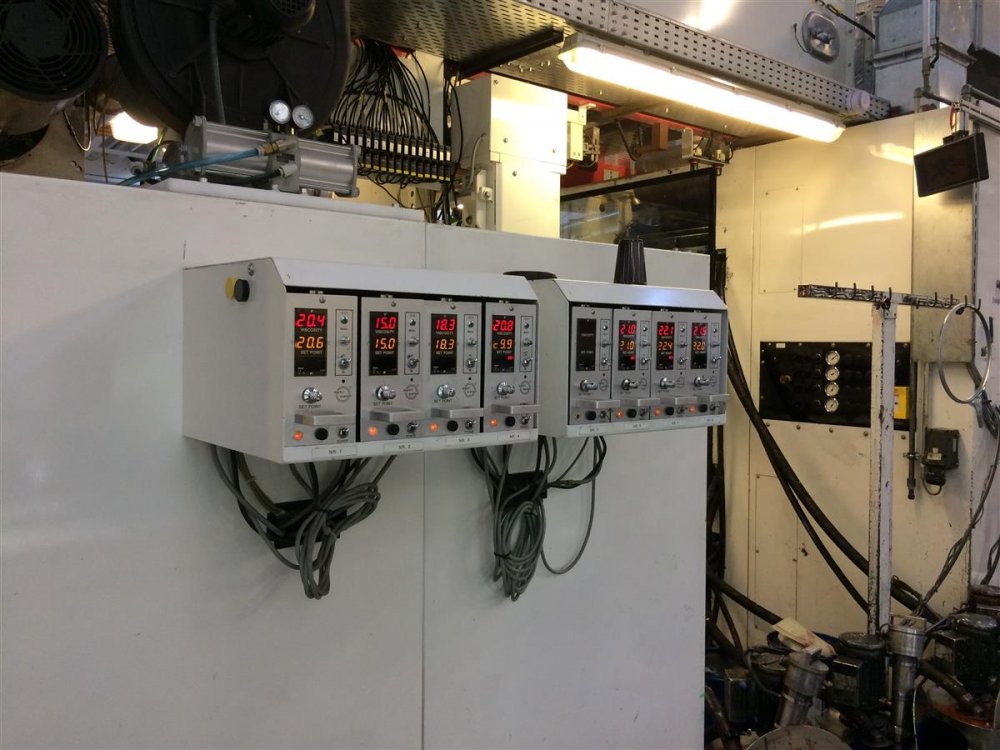

- Vyscosity control
- automatic
- Sistema d'inchiostro
- 10 Closed chamber doctro blades
- Anilox
- 20 anilox sleeves. Lineature: 80-340 L/cm2 qtyxl/cm. 2x 80; 2x100; 3x120; 3x160; 3x260; 7x340
- Maniche stampa
- 296
- Ulteriori informazioni

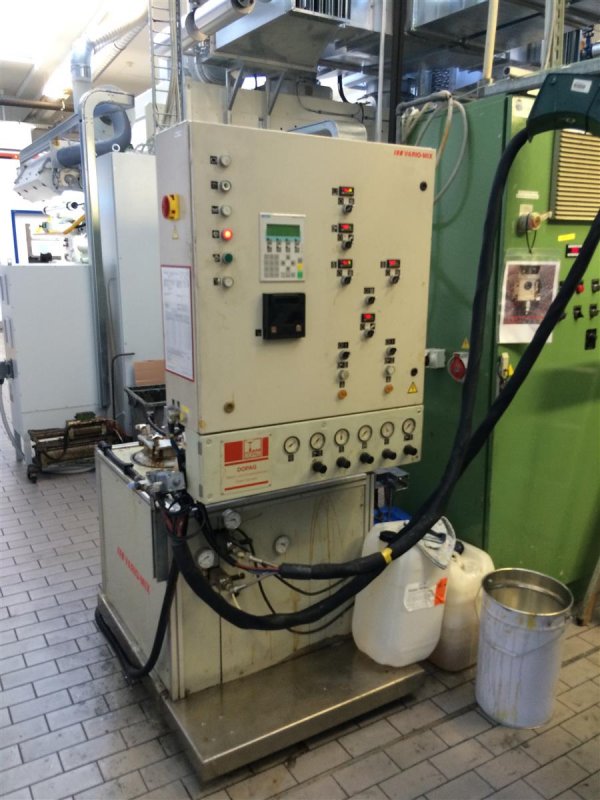

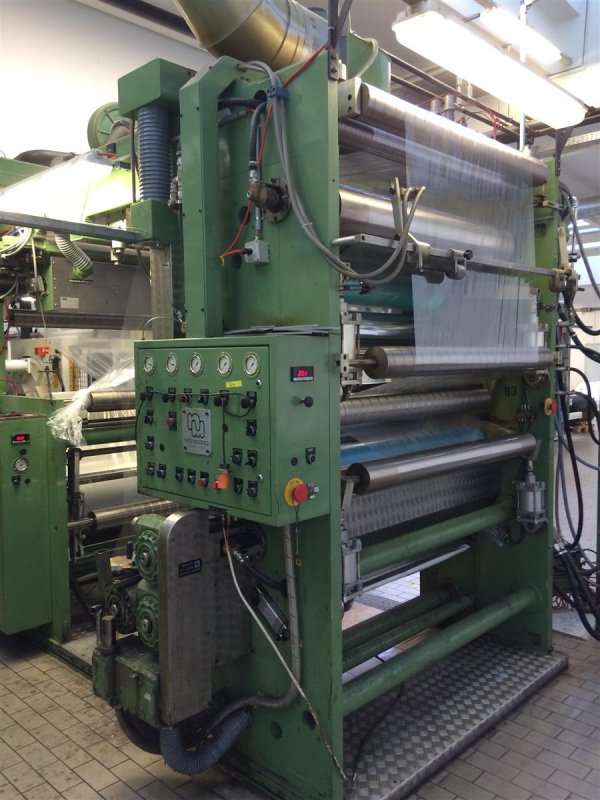

- In line solventless lamination unit: Make Nordmeccanica Secondary unwinder turret type 800mm diam Pumping mixing unit Dopag Stroboscoupe available
| Codice Macchina | FL690 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | NOVOFLEX |
| Year | 2001 |
| Numero di colori | 8 |
| Print possibilityes | 8 olors printing + solventless lamination in line |
| Rinnovo | Upgraded few times |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1050 |
| Larghezza stampa (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 760 |
| Unwinder type | Turret |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Videocamera | Eltromat 3 ccd high resolution camera |
| Trattamento Corona | AFS |
| Guida film | BST |
| Vyscosity control | automatic |
| Sistema d'inchiostro | 10 Closed chamber doctro blades |
| Anilox | 20 anilox sleeves. Lineature: 80-340 L/cm2 qtyxl/cm. 2x 80; 2x100; 3x120; 3x160; 3x260; 7x340 |
| Maniche stampa | 296 |
| Ulteriori informazioni | In line solventless lamination unit: Make Nordmeccanica Secondary unwinder turret type 800mm diam Pumping mixing unit Dopag Stroboscoupe available |
