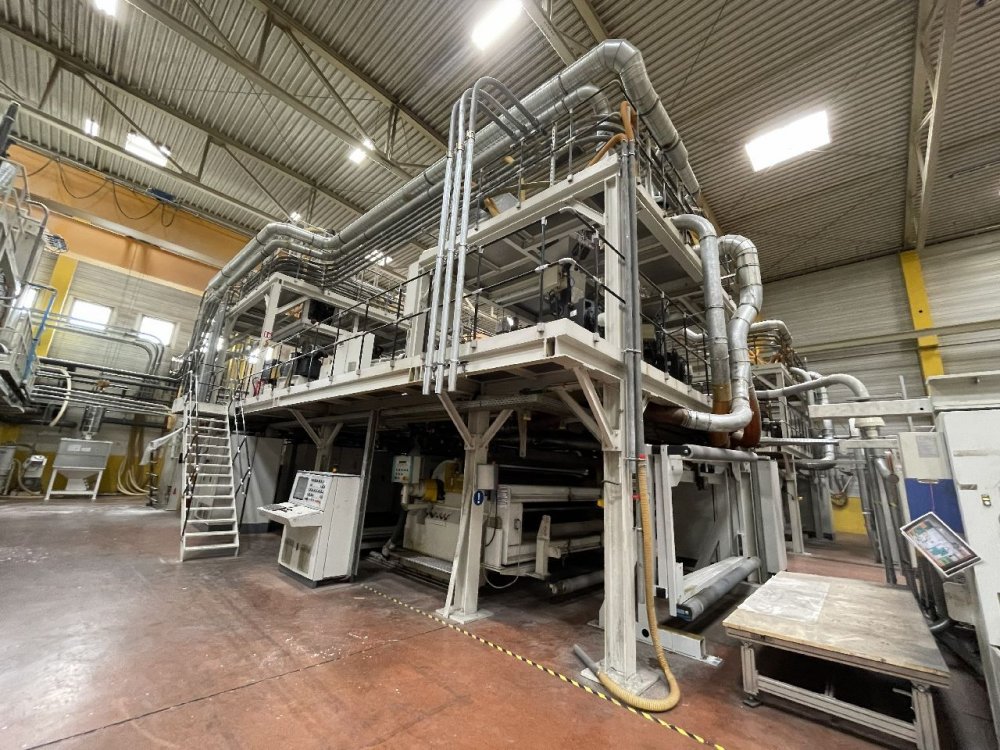

- Codice Macchina
- CA260
- Manufacturer
- SML
- Modello
- CAST COEX 5
- Year
- 2006
- Numero di strati
- 5
- Rinnovo
- yes, recent revamp to part of controls
- Struttura film
- ABCDE
- Materiali
- Stretch film LLDPE
- Larghezza film (mm)
- 2500
- Velocità (m/m)
- Mech speed 600 mpm- net speed at rewinder 550 mpm
- Output (Kg/h)
- Nominal capacity 3400 kg /h - Max net capacity at rewinder 2300 kg/h .

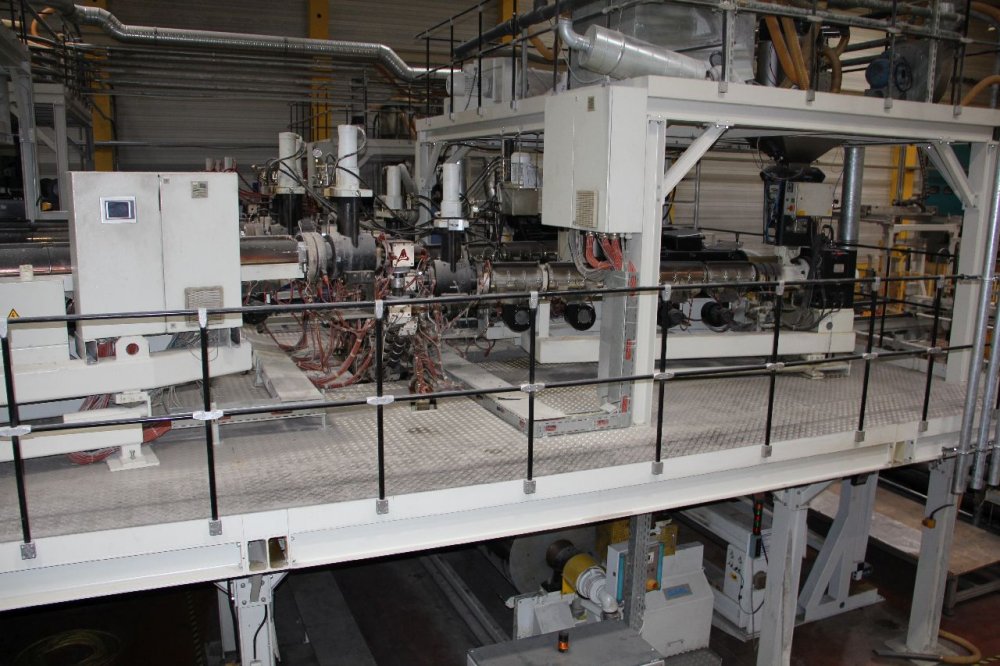

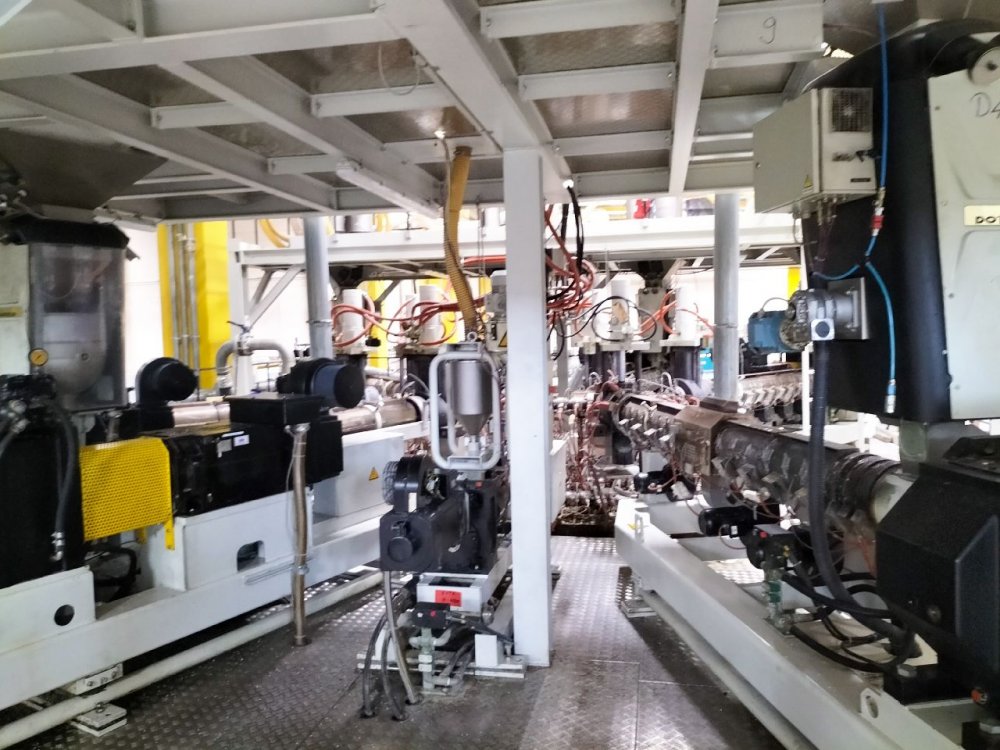

- Rif strati estrusore 1:
- A
- Screw diam 1
- 90mm
- Description 1
- Gravimetric dosing units Doteco 2Comp.
- Rif strati estrusore 2:
- B
- Screw diam 2
- 120mm
- Description 2
- Gravimetric dosing units Doteco 4 Comp.AC motor, hydraulic screen changer
- Rif strati estrusore 3:
- C
- Screw diam 3
- 120mm
- Description 3
- Gravimetric dosing units Doteco 4 Comp. AC motor, hydraulic screen changer
- Rif strati estrusore 4:
- D
- Screw diam 4
- 120mm
- Description 4
- Gravimetric dosing units Doteco 3 Comp.AC motor, hydraulic screen changer
- Rif strati estrusore 5:
- E
- Screw diam 5
- 90mm
- Description 5
- Gravimetric dosing units Doteco 2 Comp.AC motor, hydraulic screen changer
- Descrizione testa
- Automatic Die head with Internal deckling, Eltex edge pinning,
- Die width (mm)
- Gross width 3100 - 2100 mm
- Unità chill roll
- Double chill roller
- Controllo di spessore
- Yes
- Guida film
- Oscillating frame
- Descrizione avvolgitore

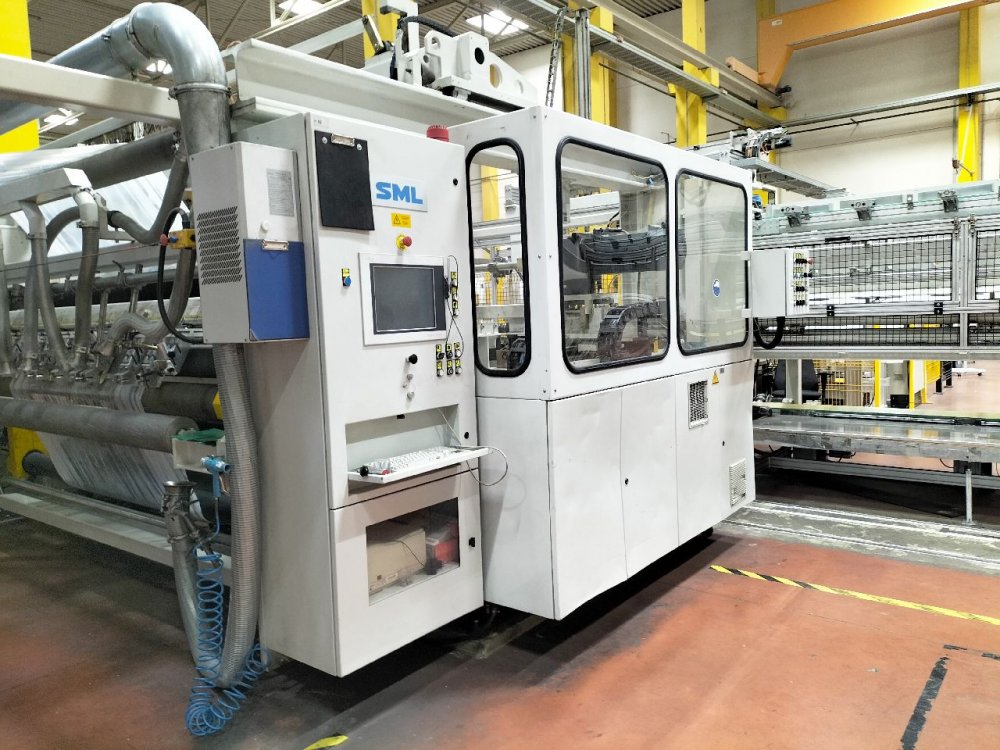

- Turret rewinder for machine reels and jumbo
- Ulteriori informazioni

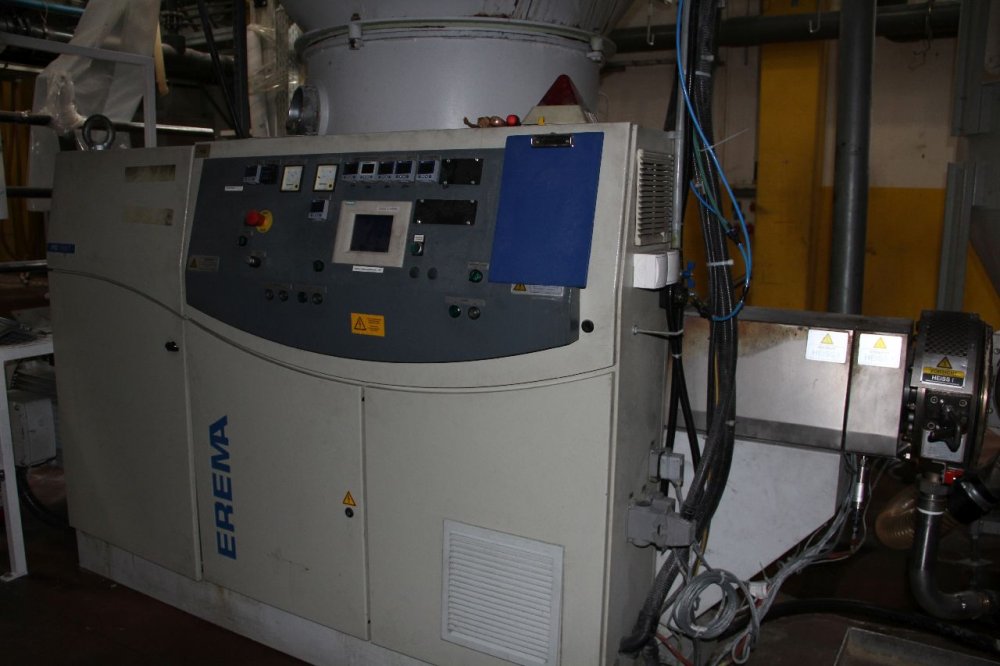

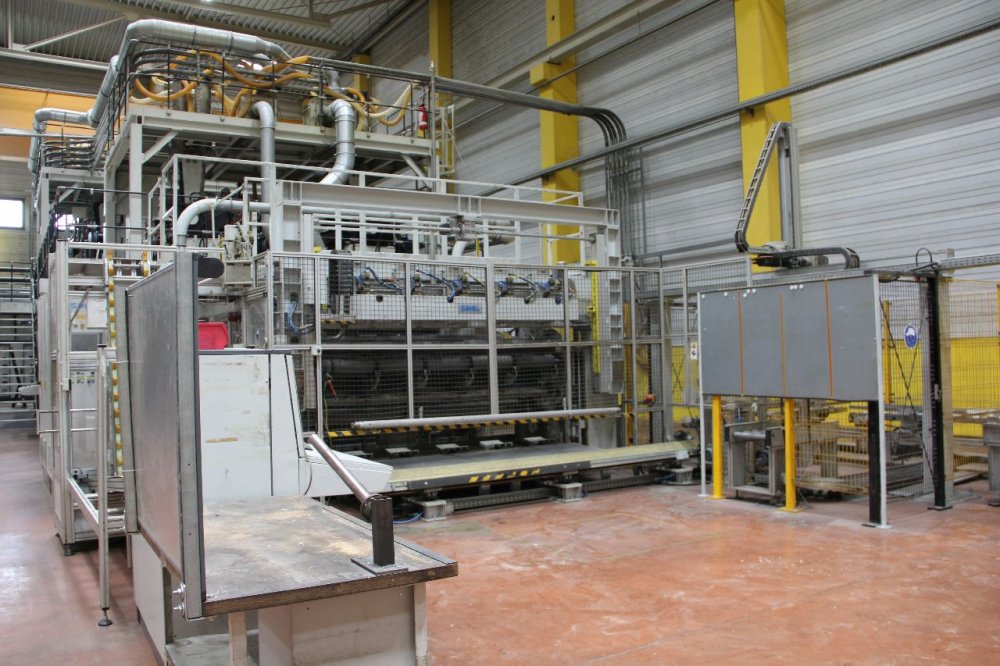

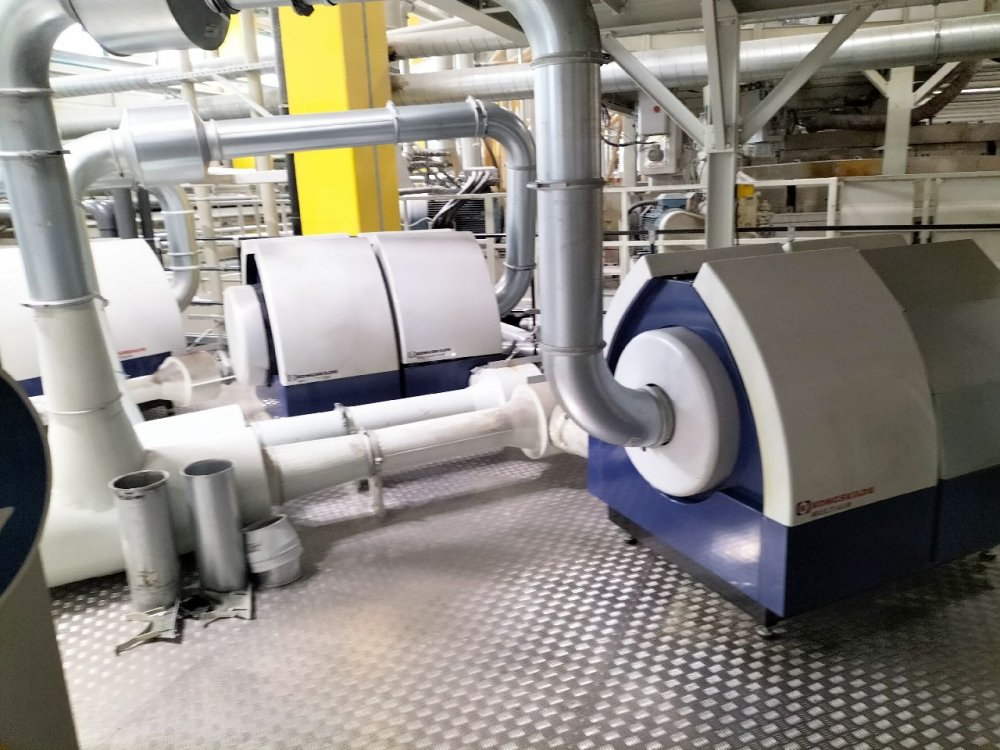

- Regrinder for edges and Erema Regranulator 3 Kongskilde exhaust for edge trims EREMA recycling regranulation unit Additional extruder. 8 for recycled material supplied by Erema unit . Provision for edge encapsulation . Complete end of the line rolls handling and palletizing
| Codice Macchina | CA260 |
| Manufacturer | SML |
| Modello | CAST COEX 5 |
| Year | 2006 |
| Numero di strati | 5 |
| Rinnovo | yes, recent revamp to part of controls |
| Struttura film | ABCDE |
| Materiali | Stretch film LLDPE |
| Larghezza film (mm) | 2500 |
| Velocità (m/m) | Mech speed 600 mpm- net speed at rewinder 550 mpm |
| Output (Kg/h) | Nominal capacity 3400 kg /h - Max net capacity at rewinder 2300 kg/h . |
| Rif strati estrusore 1: | A |
| Screw diam 1 | 90mm |
| Description 1 | Gravimetric dosing units Doteco 2Comp. |
| Rif strati estrusore 2: | B |
| Screw diam 2 | 120mm |
| Description 2 | Gravimetric dosing units Doteco 4 Comp.AC motor, hydraulic screen changer |
| Rif strati estrusore 3: | C |
| Screw diam 3 | 120mm |
| Description 3 | Gravimetric dosing units Doteco 4 Comp. AC motor, hydraulic screen changer |
| Rif strati estrusore 4: | D |
| Screw diam 4 | 120mm |
| Description 4 | Gravimetric dosing units Doteco 3 Comp.AC motor, hydraulic screen changer |
| Rif strati estrusore 5: | E |
| Screw diam 5 | 90mm |
| Description 5 | Gravimetric dosing units Doteco 2 Comp.AC motor, hydraulic screen changer |
| Descrizione testa | Automatic Die head with Internal deckling, Eltex edge pinning, |
| Die width (mm) | Gross width 3100 - 2100 mm |
| Unità chill roll | Double chill roller |
| Controllo di spessore | Yes |
| Guida film | Oscillating frame |
| Descrizione avvolgitore | Turret rewinder for machine reels and jumbo |
| Ulteriori informazioni | Regrinder for edges and Erema Regranulator 3 Kongskilde exhaust for edge trims EREMA recycling regranulation unit Additional extruder. 8 for recycled material supplied by Erema unit . Provision for edge encapsulation . Complete end of the line rolls handling and palletizing |

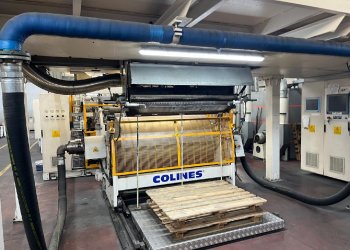

COLINES
-
Codice Macchina: CA272
-
Year: 2012
-
Larghezza film (mm): 1000
TECHNO COATING ENGINEERING
-
Codice Macchina: CA231
-
Year: 2005
-
Larghezza film (mm): 2000

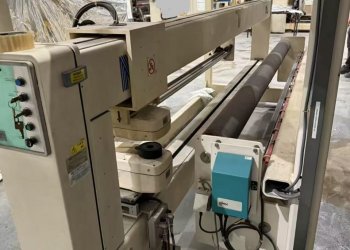

WINDMÖLLER & HÖLSCHER FILMEX
-
