- Code Machine
- OT146
- Fabricant
- BIELOMATIK
- Modello

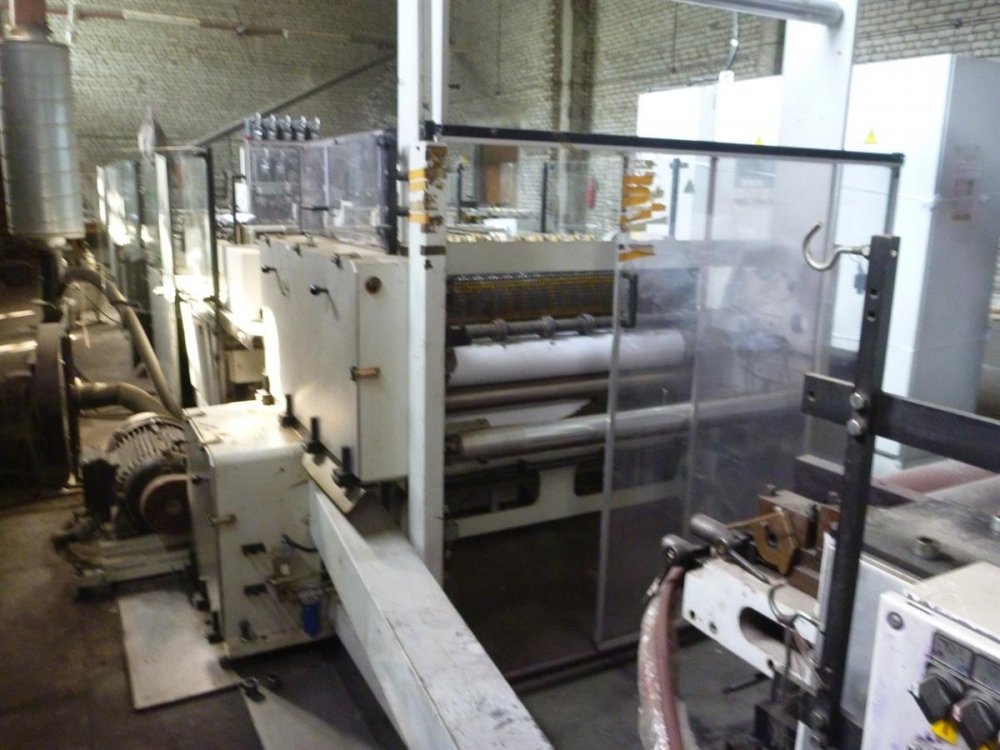

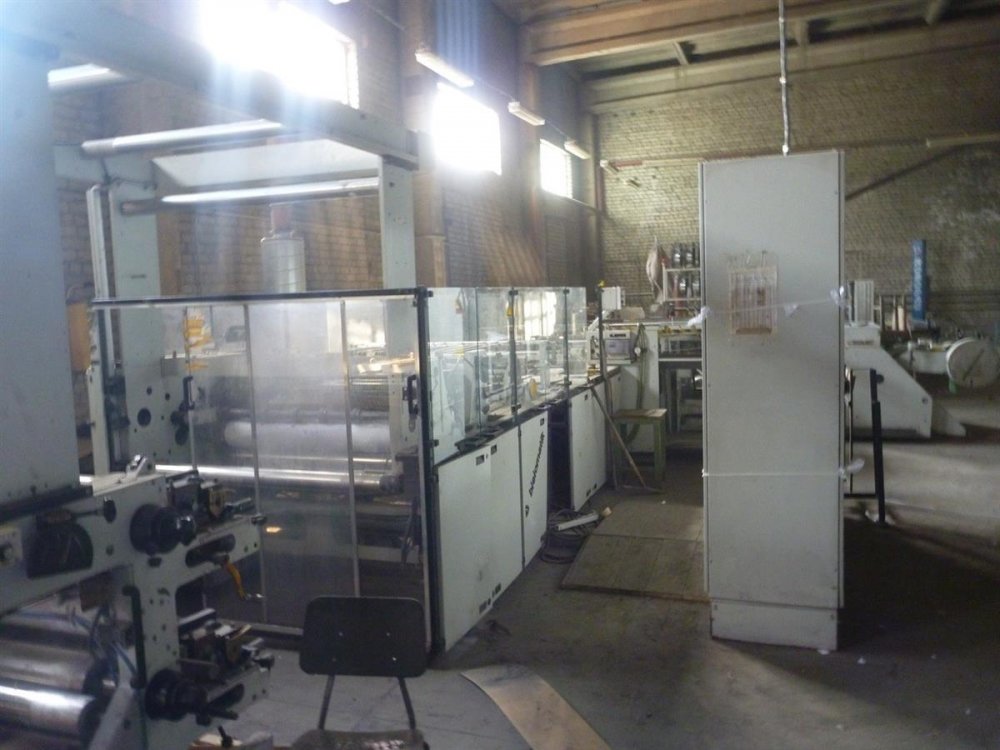

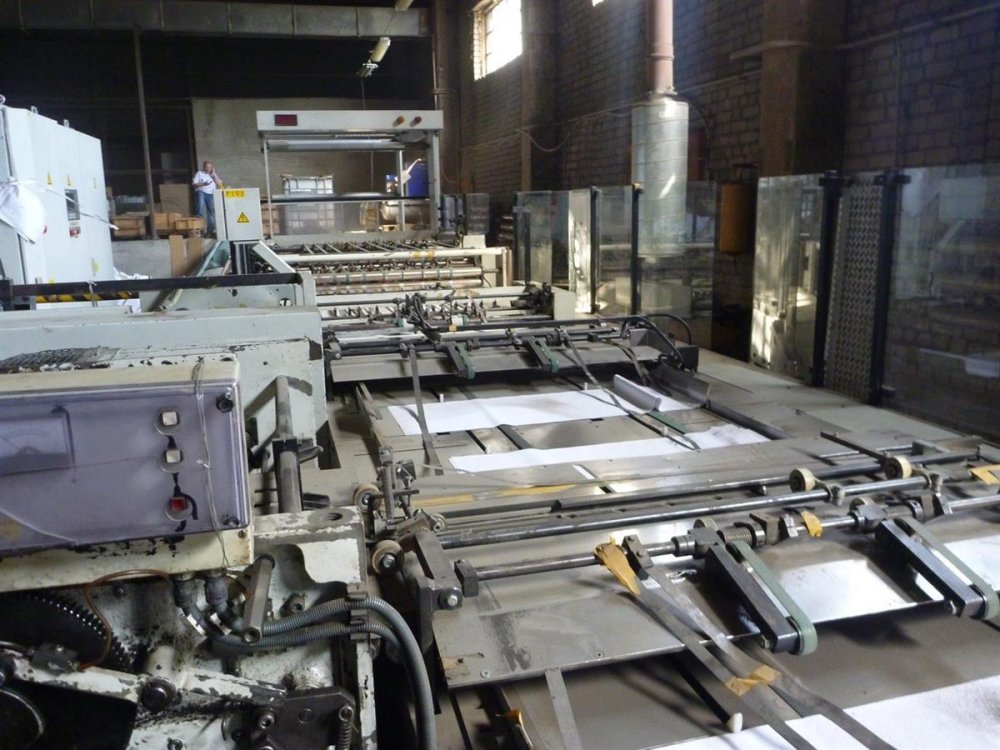

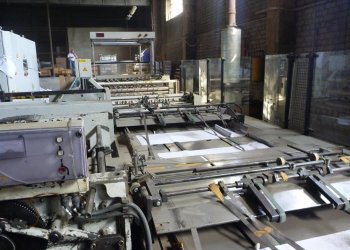

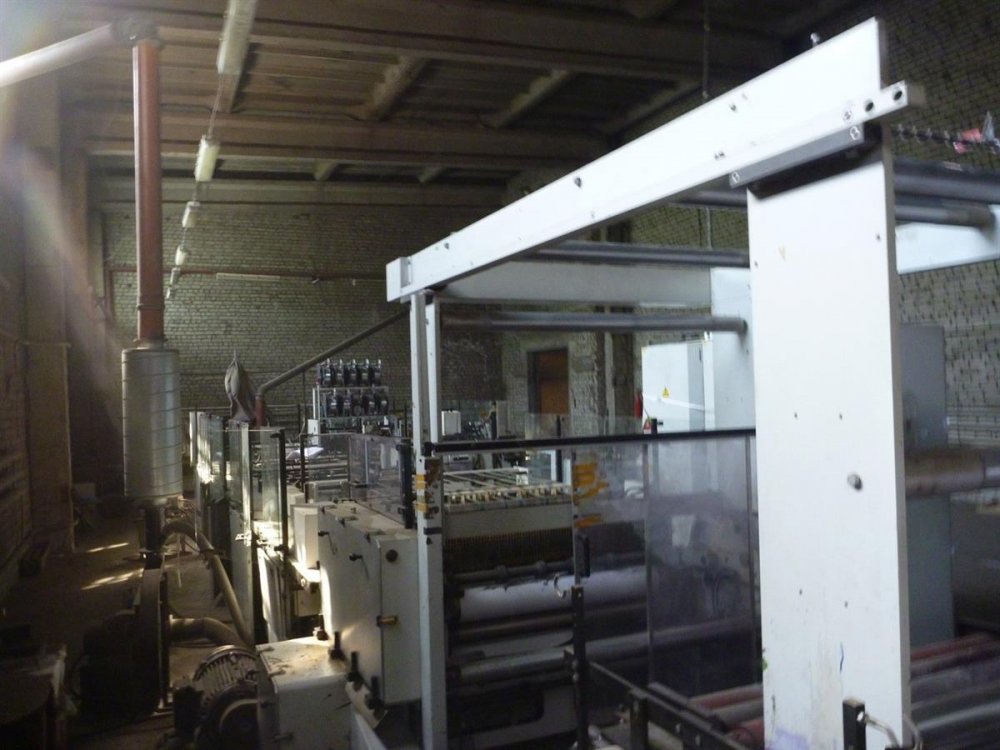

- EXERCISE BOOK LINE
- Année
- 2002
- Note
- Product: wire stitched books Basis weight: 55-300gsm Working speed: 500m/min Shaftless unwind stand x 1, 76mm core Reel diameter: maximum 1524mm, minimum 550mm Reel width: maximum 1205mm Flexo ruling tower: Two colour each side of web Print repeat range: 270-720mm Maximum web width: 1120mm Anti static device Cross cutter section: Maximum web width 1130mm Cuts 1600 per minute Cutting length 180-765mm Collecting section: Sheet fed cover feeder: maximum cardboard weight 1000gsm Roll fed cover feeder: web width 185-720mm, core 76mm, 120 cuts per minute One colour flexo printing unit for covers Finishing section: 100cycles/min, 10 stitching heads Cutting section: Minimum size width 130mm Waste exhaust: maximum distance 40m Corner rounding: radius 12mm Waste exhaust Turning of products Collecting of stacks: minimum 100 x 100mm, maximum 400 x 400mm, 100cycles/min Accumulation delivery
Code Machine | OT146 |
Fabricant | BIELOMATIK |
Modello | EXERCISE BOOK LINE |
Année | 2002 |
Note | Product: wire stitched books Basis weight: 55-300gsm Working speed: 500m/min Shaftless unwind stand x 1, 76mm core Reel diameter: maximum 1524mm, minimum 550mm Reel width: maximum 1205mm Flexo ruling tower: Two colour each side of web Print repeat range: 270-720mm Maximum web width: 1120mm Anti static device Cross cutter section: Maximum web width 1130mm Cuts 1600 per minute Cutting length 180-765mm Collecting section: Sheet fed cover feeder: maximum cardboard weight 1000gsm Roll fed cover feeder: web width 185-720mm, core 76mm, 120 cuts per minute One colour flexo printing unit for covers Finishing section: 100cycles/min, 10 stitching heads Cutting section: Minimum size width 130mm Waste exhaust: maximum distance 40m Corner rounding: radius 12mm Waste exhaust Turning of products Collecting of stacks: minimum 100 x 100mm, maximum 400 x 400mm, 100cycles/min Accumulation delivery |
