- Code Machine
- SR652
- Fabricant
- GOEBEL
- Modello
- Super F
- Année
- 1993
- Overhaul/renovation

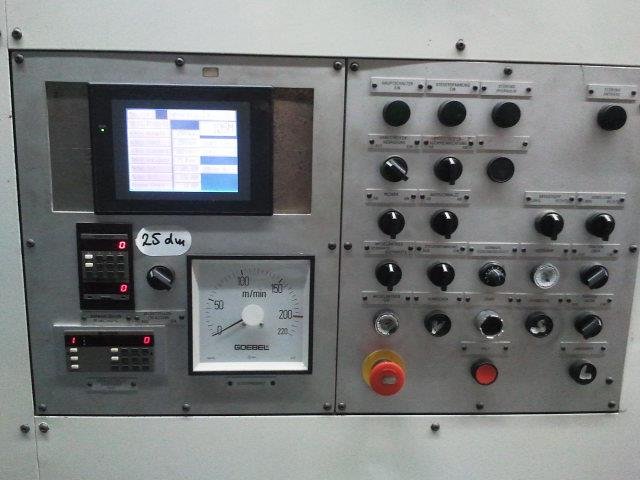

- New controlpanel (Touchscreen) & controller in 2010
- Working width (mm)
- 1800
- Materials
- surface sensitive materials, f.e. paper between 30 und 300 gsm, x-ray films-, films and foils
- Speed
- 200m/min
- Max diameter reel unwinder
- 1400
- Rewinder type
- Double shaft center driven
- Max diameter reel rewinder
- 650
- Rewinder description
- 1800 mm max width, daughterreels to be taken with helping shafts 75 mm min, daughterreels to be taken with helping shafts
- Min slit width
- 75mm
| Code Machine | SR652 |
| Fabricant | GOEBEL |
| Modello | Super F |
| Année | 1993 |
| Overhaul/renovation | New controlpanel (Touchscreen) & controller in 2010 |
| Working width (mm) | 1800 |
| Materials | surface sensitive materials, f.e. paper between 30 und 300 gsm, x-ray films-, films and foils |
| Speed | 200m/min |
| Max diameter reel unwinder | 1400 |
| Rewinder type | Double shaft center driven |
| Max diameter reel rewinder | 650 |
| Rewinder description | 1800 mm max width, daughterreels to be taken with helping shafts 75 mm min, daughterreels to be taken with helping shafts |
| Min slit width | 75mm |
