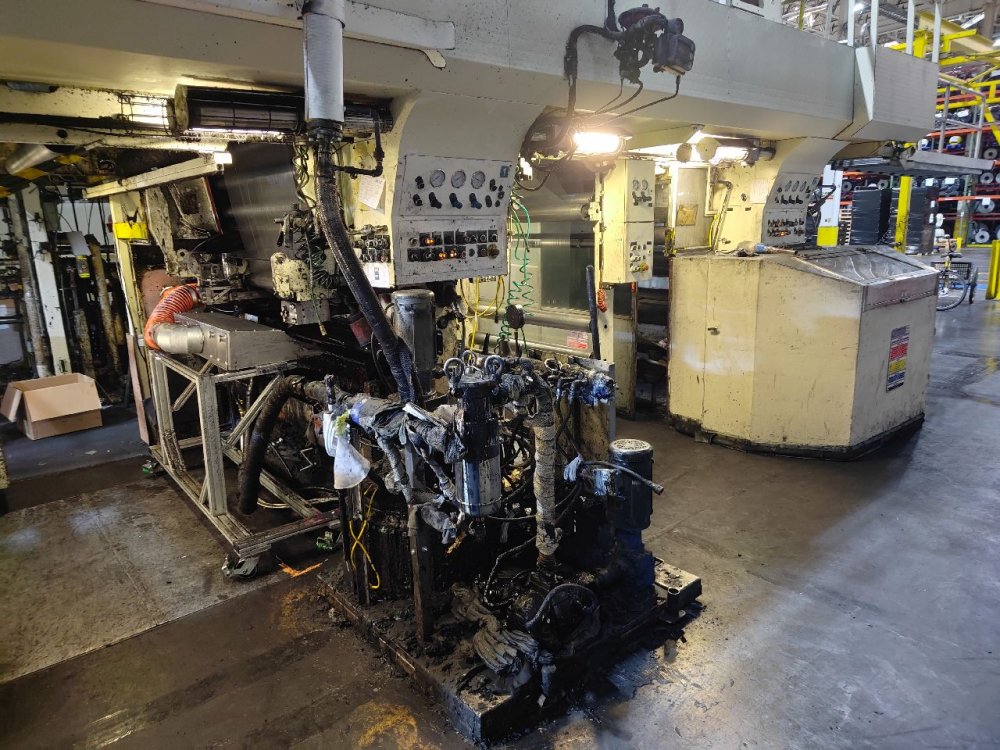

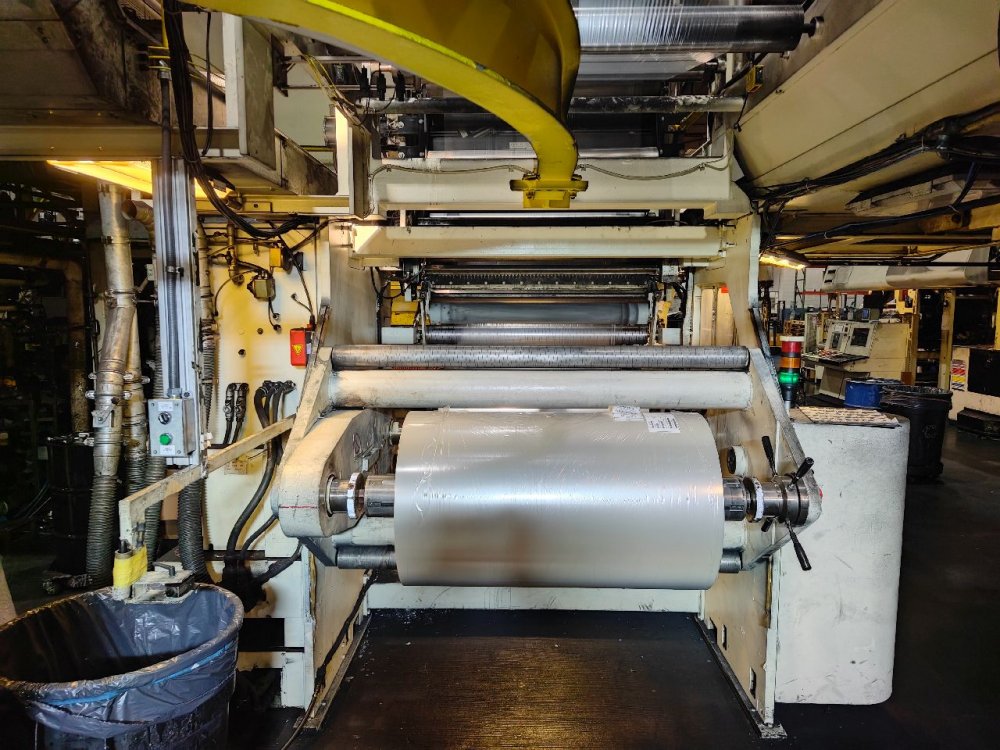

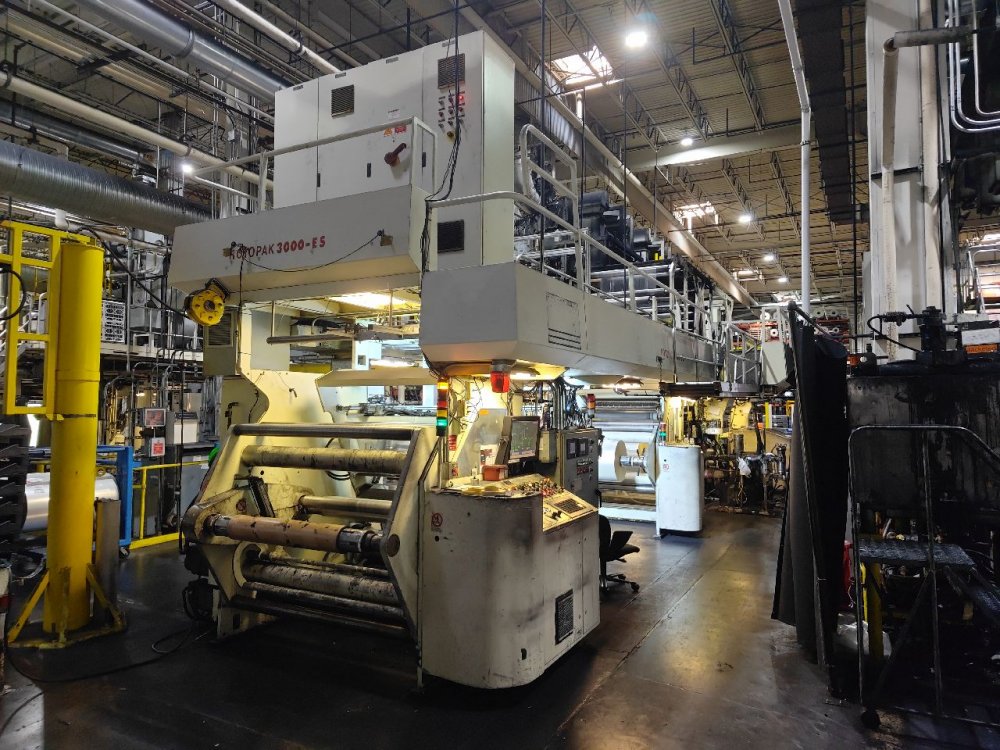

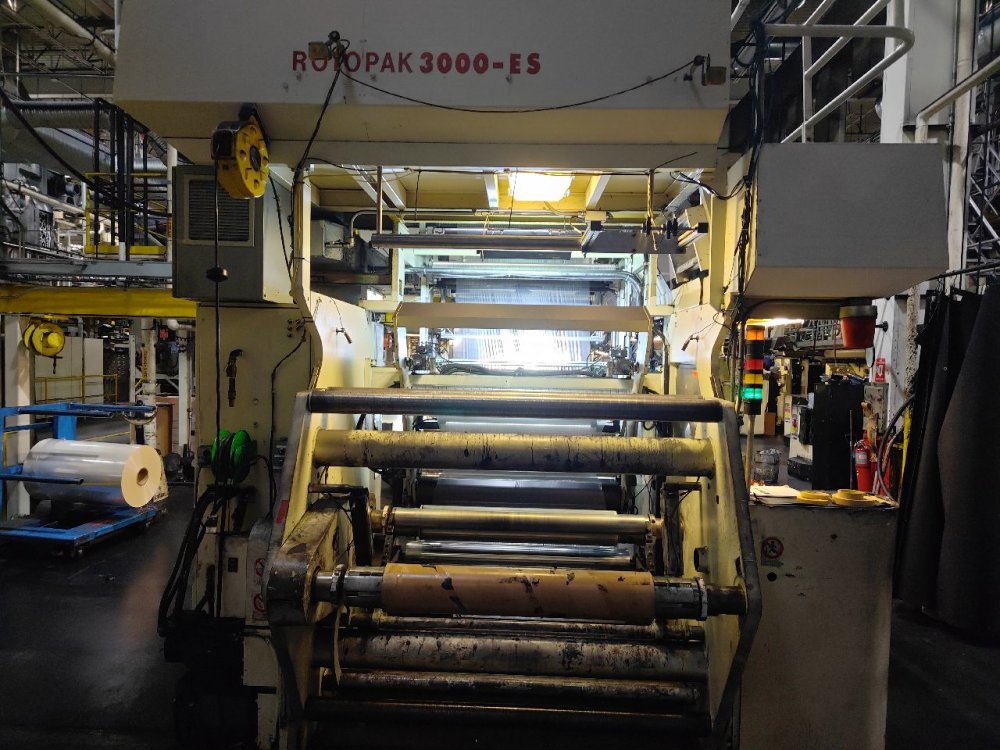

- Code Machine
- LA537
- Fabricant
- ROTOMEC
- Modello
- ROTOPAK 3000-3ES/1200/300/C
- Année
- 1999
- Application
- Coating
- Type of lamination/coating
- SOLVENT / WATER BASED
- Working width (mm)
- 1220
- Speed
- 450mpm
- First unwinder type
- Turret automatic
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Rewinder type
- Turret automatic
- Max diameter reel rewinder
- 1000
- Coating unit
- Gravure
- Second Coating unitr
- Gravure
- Drying
- Both units are double hood, each with dedicated exhaust fan and supply fan. Drying Heat Source - Steam
- Note
- 2-station (1 reversible and hotmelt capable) 2-station independent drive Machine HMI: Factory Talk, Windows 10 PLC: Siemens 6ES7414-2XJ01-0AB0, Profibus Drives:Siemens, Indramat/Rexroth Dilution Control: Yes
| Code Machine | LA537 |
| Fabricant | ROTOMEC |
| Modello | ROTOPAK 3000-3ES/1200/300/C |
| Année | 1999 |
| Application | Coating |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Working width (mm) | 1220 |
| Speed | 450mpm |
| First unwinder type | Turret automatic |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | |
| Rewinder type | Turret automatic |
| Max diameter reel rewinder | 1000 |
| Coating unit | Gravure |
| Second Coating unitr | Gravure |
| Drying | Both units are double hood, each with dedicated exhaust fan and supply fan. Drying Heat Source - Steam |
| Note | 2-station (1 reversible and hotmelt capable) 2-station independent drive Machine HMI: Factory Talk, Windows 10 PLC: Siemens 6ES7414-2XJ01-0AB0, Profibus Drives:Siemens, Indramat/Rexroth Dilution Control: Yes |
