- Code Machine
- LA536
- Fabricant
- ROTOMEC
- Modello
- ROTOPAK 3000-S/1000/250/C
- Année
- 1995
- Application
- Coating
- Type of lamination/coating
- SOLVENT / WATER BASED
- Working width (mm)
- 1010
- Speed
- 425 mpm
- First unwinder type
- Turret Automatic
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Turret automatic
- Max diameter reel unwinder
- 800
- Third unwinder type
- Turret automatic
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret automatic
- Max diameter reel rewinder
- 800
- Drying
- All 4 units are double hood with one blowing and one exhaust fan. 2 stations with independent exhaust fans.Drying heat source - Steam
- Note
- 3 stations with reverse option Drive: 3-station line shaft drive, capability to drive 1 station independently Machine HMI: Factory Talk, Windows 7 PLC: Allen Bradley/Rockwell, 1785L40B-D Drives: Parker, Siemens, Allen Bradley Dilution Control: Yes
| Code Machine | LA536 |
| Fabricant | ROTOMEC |
| Modello | ROTOPAK 3000-S/1000/250/C |
| Année | 1995 |
| Application | Coating |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Working width (mm) | 1010 |
| Speed | 425 mpm |
| First unwinder type | Turret Automatic |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Turret automatic |
| Max diameter reel unwinder | 800 |
| Third unwinder type | Turret automatic |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret automatic |
| Max diameter reel rewinder | 800 |
| Drying | All 4 units are double hood with one blowing and one exhaust fan. 2 stations with independent exhaust fans.Drying heat source - Steam |
| Note | 3 stations with reverse option Drive: 3-station line shaft drive, capability to drive 1 station independently Machine HMI: Factory Talk, Windows 7 PLC: Allen Bradley/Rockwell, 1785L40B-D Drives: Parker, Siemens, Allen Bradley Dilution Control: Yes |
NORDMECCANICA ZENIT
-
Code Machine: LA250
-
Année: 1990
-
Working width (mm): 1300
BMB
-
Code Machine: LA510
-
Année: 1990
-
Working width (mm): 2100
WINDMÖLLER & HÖLSCHER
-
Code Machine: LA257
-
Année: 1994
-
Working width (mm): 850
NORDMECCANICA Super Combi 3000
-
Code Machine: LA531
-
Année: 2012
-
Working width (mm): 1330

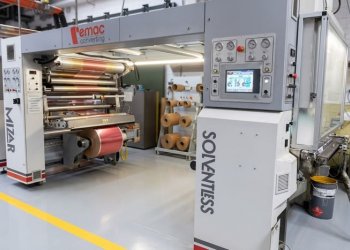

REMAC Mizar 130
-
