- Code Machine
- LA238
- Fabricant
- NORDMECCANICA

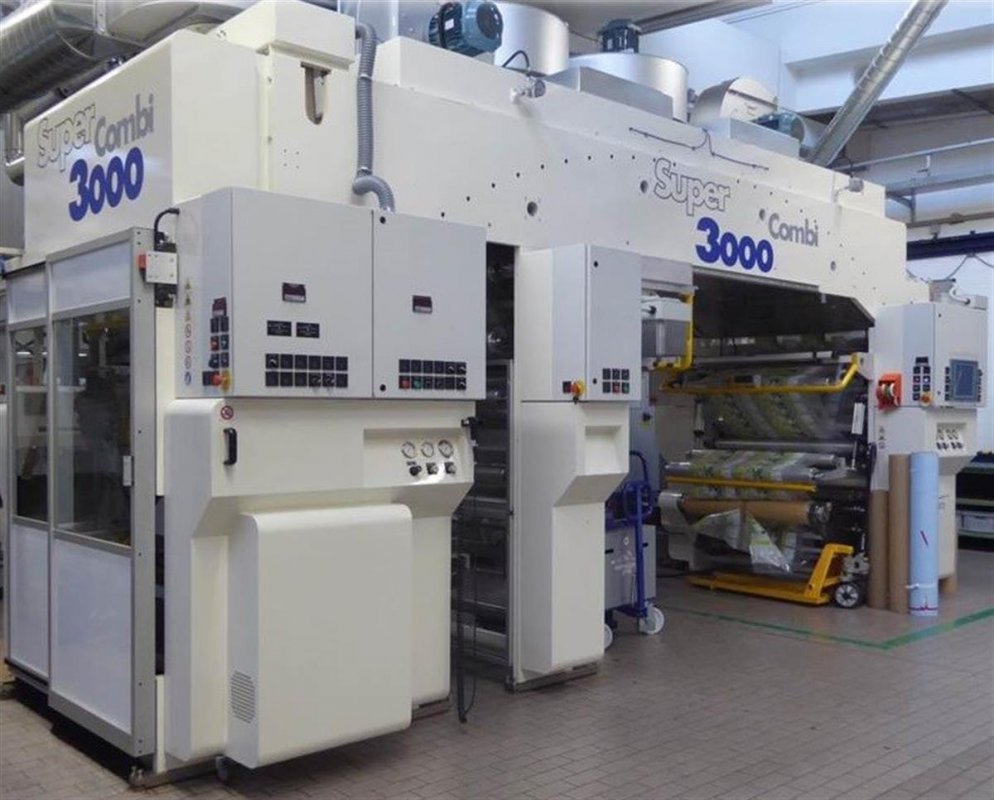

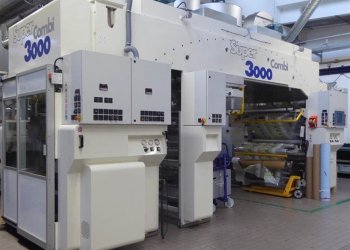

- Modello
- SUPERCOMBI 3000
- Année
- 2015
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1300
- Materials
- FILM/PAPER/ALLUMINIUM
- First unwinder type
- SHAFTLESS;DRIVEN
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- SHAFTLESS;DRIVEN
- Max diameter reel unwinder
- 1000

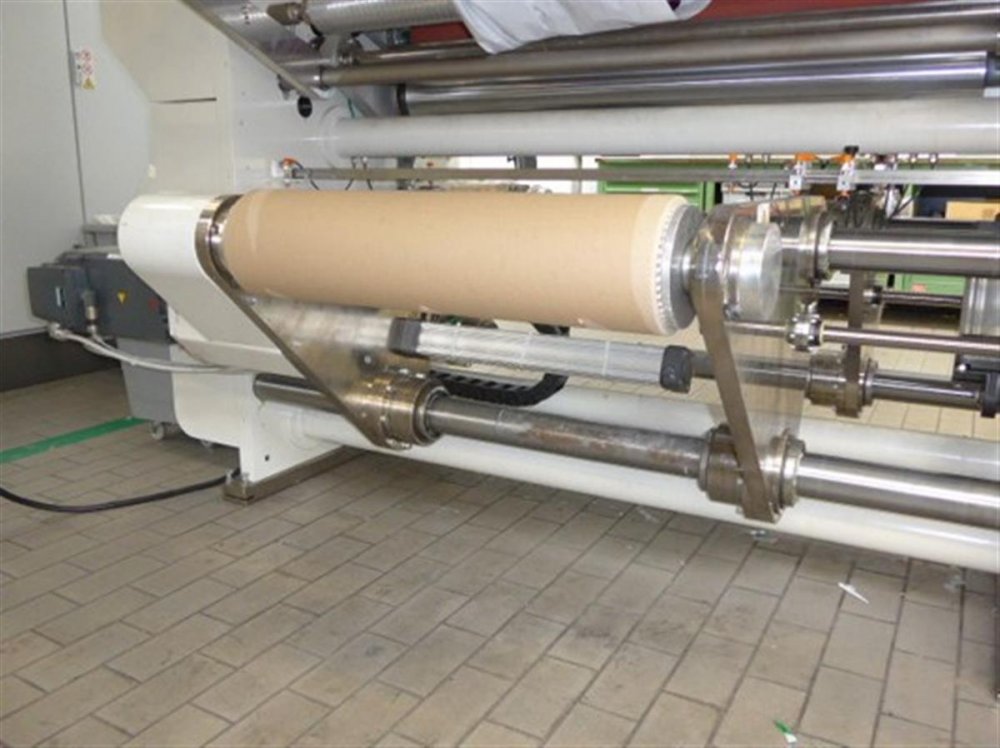

- Rewinder type
- SHAFTLESS
- Max diameter reel rewinder
- 1000

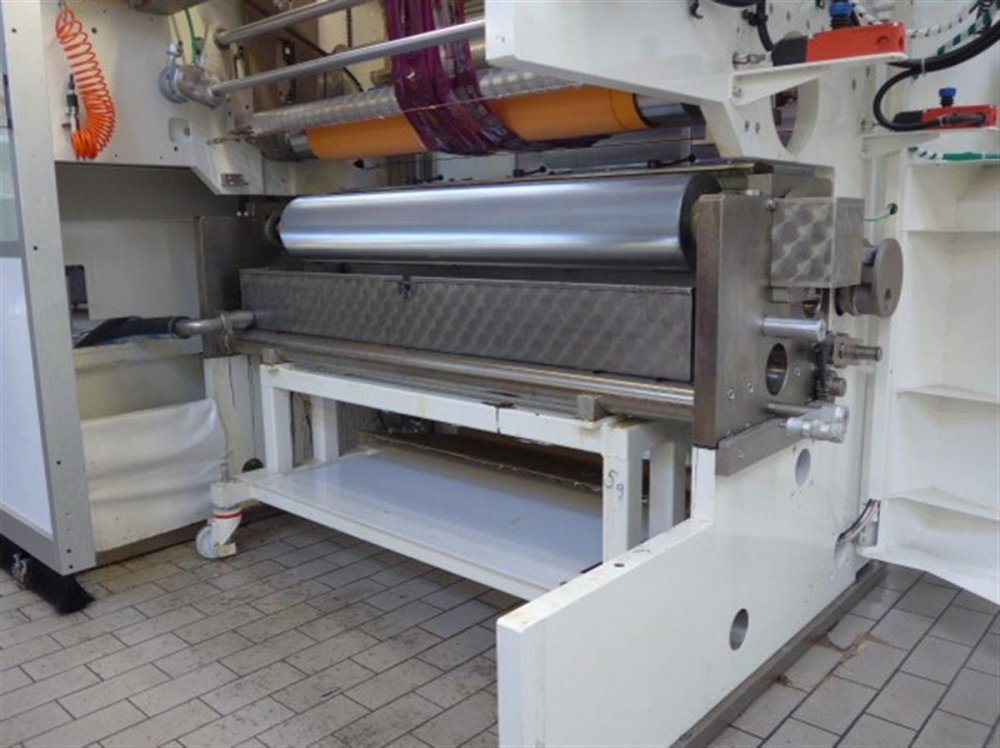

- Coating unit
- AVAILABLE TWO ROTOGRAVURE TROLLEYS
- Drying
- 4 FANS 2 HEAT EXGHANGERS
- pumping mixing unit
- PUMPING MIXING UNIT 3 comp NORDMECCANICA Word mixer sb

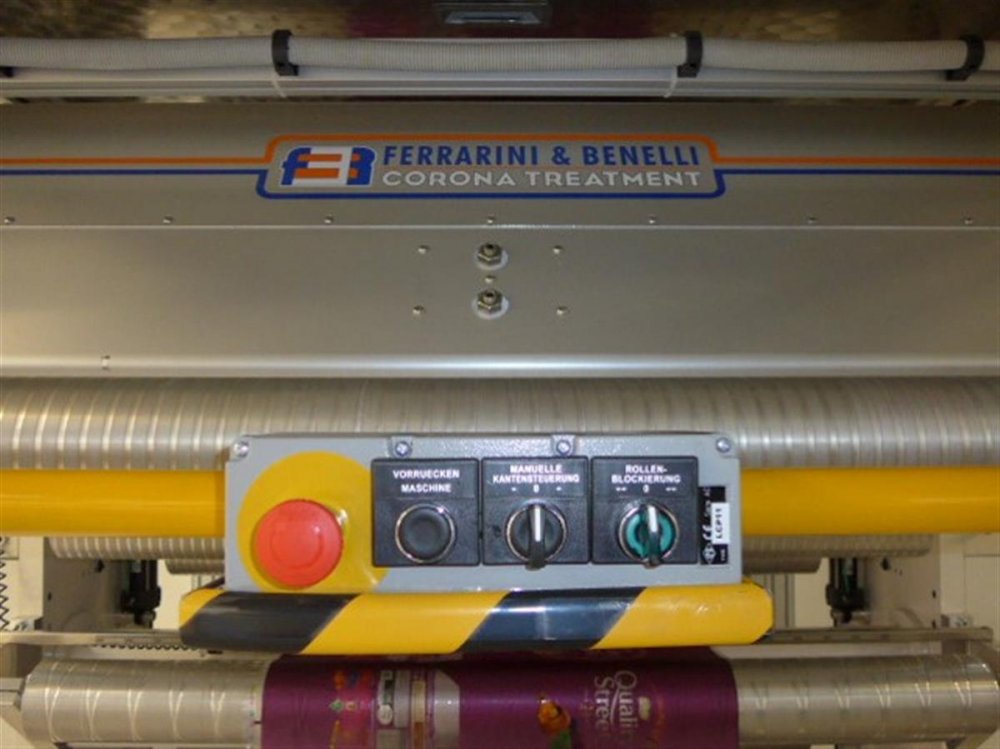

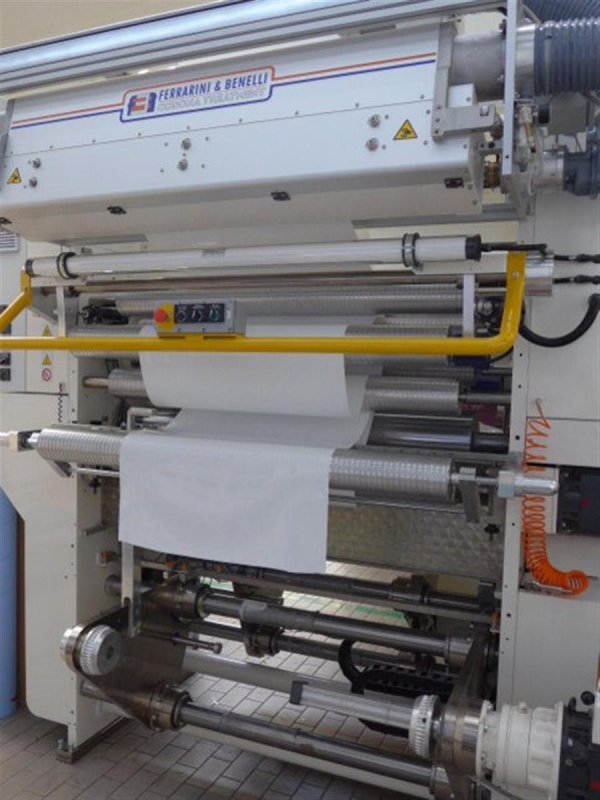

- Corona treatment
- 2 TREATMENTS FERRARINI & BENELLI, BOTH DRIVEN.
- Note
- HONEYWELL LEL control system https://youtu.be/hL0eL6k4cLo
| Code Machine | LA238 |
| Fabricant | NORDMECCANICA |
| Modello | SUPERCOMBI 3000 |
| Année | 2015 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1300 |
| Materials | FILM/PAPER/ALLUMINIUM |
| First unwinder type | SHAFTLESS;DRIVEN |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | SHAFTLESS;DRIVEN |
| Max diameter reel unwinder | 1000 |
| Rewinder type | SHAFTLESS |
| Max diameter reel rewinder | 1000 |
| Coating unit | AVAILABLE TWO ROTOGRAVURE TROLLEYS |
| Drying | 4 FANS 2 HEAT EXGHANGERS |
| pumping mixing unit | PUMPING MIXING UNIT 3 comp NORDMECCANICA Word mixer sb |
| Corona treatment | 2 TREATMENTS FERRARINI & BENELLI, BOTH DRIVEN. |
| Note | HONEYWELL LEL control system https://youtu.be/hL0eL6k4cLo |
