- Code Machine
- ST247
- Fabricant
- EXPERT

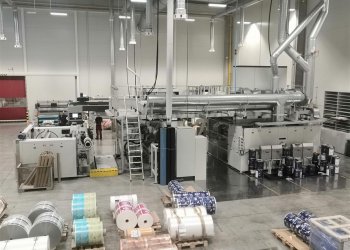

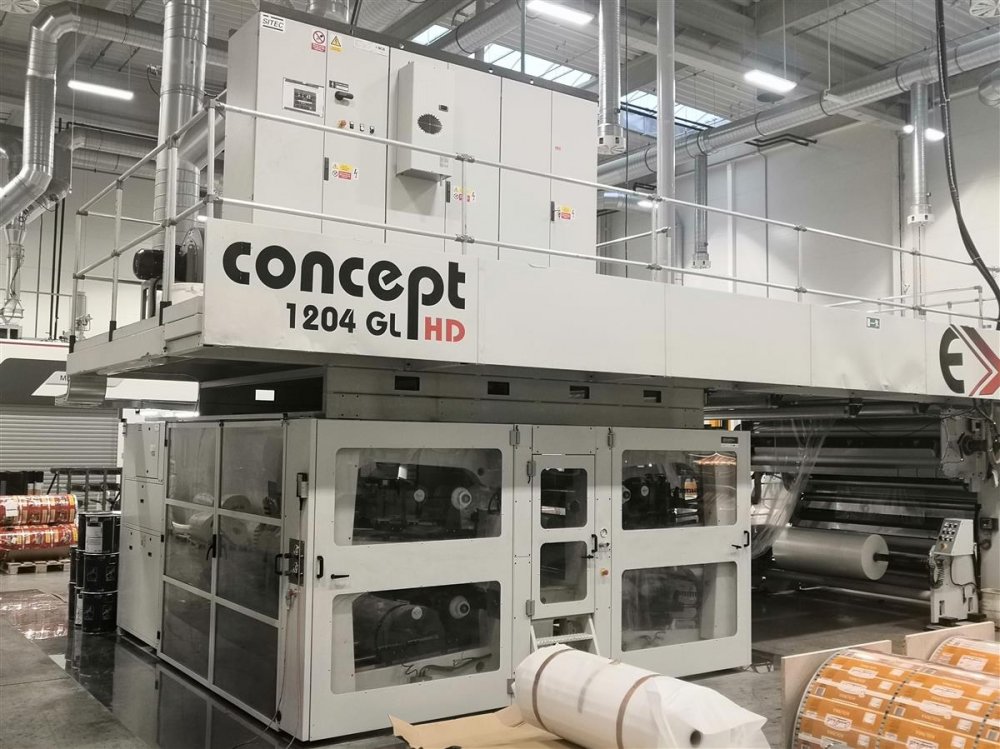

- Modello
- CONCEPT 1204-GL HD MOD.230
- Année
- 2014
- Number of colors
- 4
- Print possibilityes
- 4+0
- Taper
- Reel to reel
- Web width (mm)
- 2350
- Print width (mm)
- 2300
- Print repeat (mm)
- 550-1250
- unwinder type
- Single
- Max diameter reel unwinder (mm)
- 800

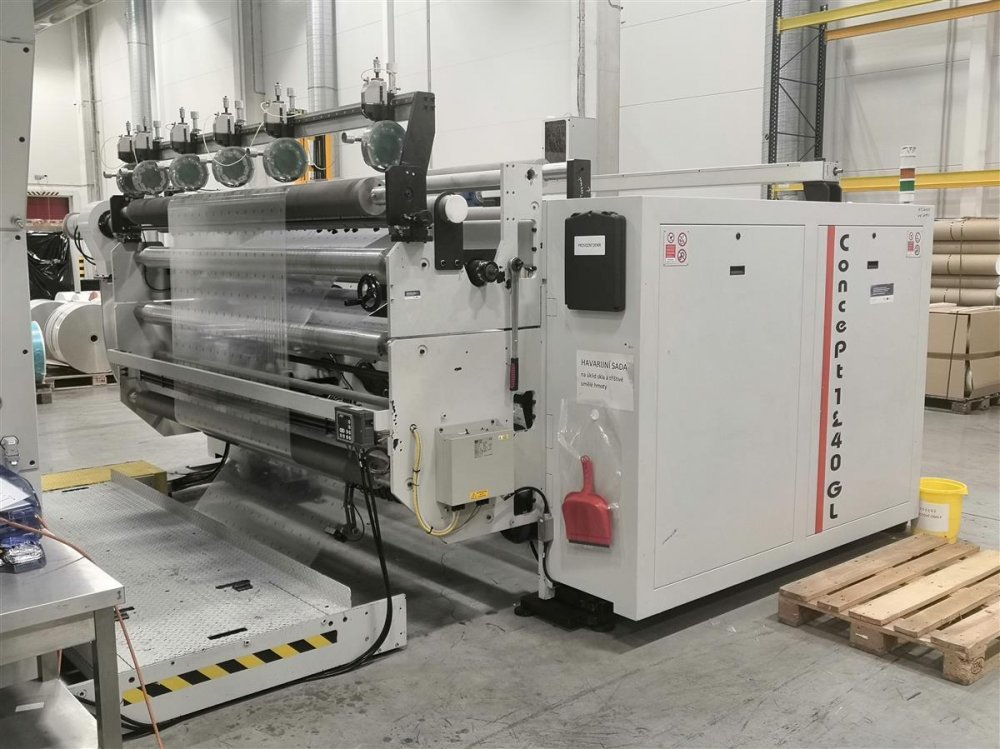

- Rewinder type
- Turret automatic
- Max diameter reel rewinder (mm)
- 800
- Drying
- Electric
- Videocamera
- Yes
- Corona treatment
- Yes
- Inking sysytem
- Ceramic anilox +doctor blade
- Anilox
- 4
- Print Sleeves
- 6
- Note
- Waterbased and solventbased inks Speed 300 m/min Viscosimeters Materials: LDPE 20-240my Tension range 30-480 N
| Code Machine | ST247 |
| Fabricant | EXPERT |
| Modello | CONCEPT 1204-GL HD MOD.230 |
| Année | 2014 |
| Number of colors | 4 |
| Print possibilityes | 4+0 |
| Taper | Reel to reel |
| Web width (mm) | 2350 |
| Print width (mm) | 2300 |
| Print repeat (mm) | 550-1250 |
| unwinder type | Single |
| Max diameter reel unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max diameter reel rewinder (mm) | 800 |
| Drying | Electric |
| Videocamera | Yes |
| Corona treatment | Yes |
| Inking sysytem | Ceramic anilox +doctor blade |
| Anilox | 4 |
| Print Sleeves | 6 |
| Note | Waterbased and solventbased inks Speed 300 m/min Viscosimeters Materials: LDPE 20-240my Tension range 30-480 N |
