- Code Machine
- FL1183
- Fabricant
- TCM
- Année
- 2000
- Number of colors
- 6
- Print possibilityes
- 4 CI +2 stack
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No

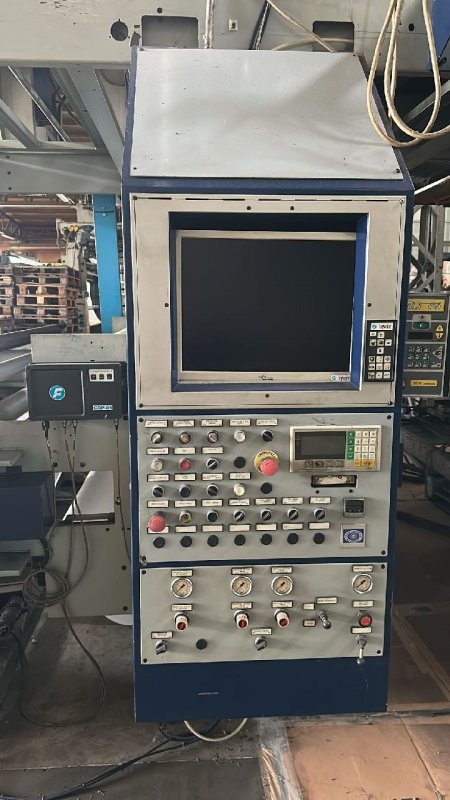

- Computer supervision
- Yes
- Web width (mm)
- 1900
- Print width (mm)
- 1800
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 800
- Unwinder type
- Single position
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Single position
- Max reel diameter rewinder (mm)
- 1200
- Drying
- 1zone for Ci , 1 zone for stack unot , gas burners
- Videocamera
- Yes INPRINT
- Web guides
- yes in and out
- Inking system
- Closed chamber doctor blades and pneumatic ink pumps
- Anilox
- 6 ceramic anilox rollers
- Note
- Register control by ZELO between CI and stack unit
| Code Machine | FL1183 |
| Fabricant | TCM |
| Année | 2000 |
| Number of colors | 6 |
| Print possibilityes | 4 CI +2 stack |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1900 |
| Print width (mm) | 1800 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 800 |
| Unwinder type | Single position |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Single position |
| Max reel diameter rewinder (mm) | 1200 |
| Drying | 1zone for Ci , 1 zone for stack unot , gas burners |
| Videocamera | Yes INPRINT |
| Web guides | yes in and out |
| Inking system | Closed chamber doctor blades and pneumatic ink pumps |
| Anilox | 6 ceramic anilox rollers |
| Note | Register control by ZELO between CI and stack unit |
