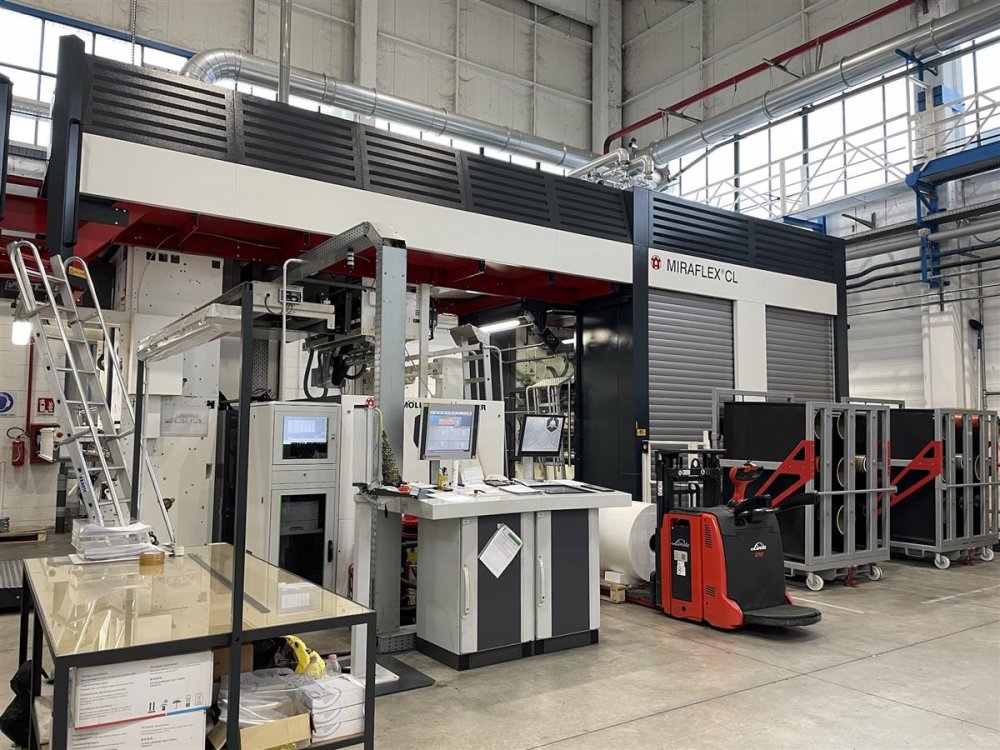

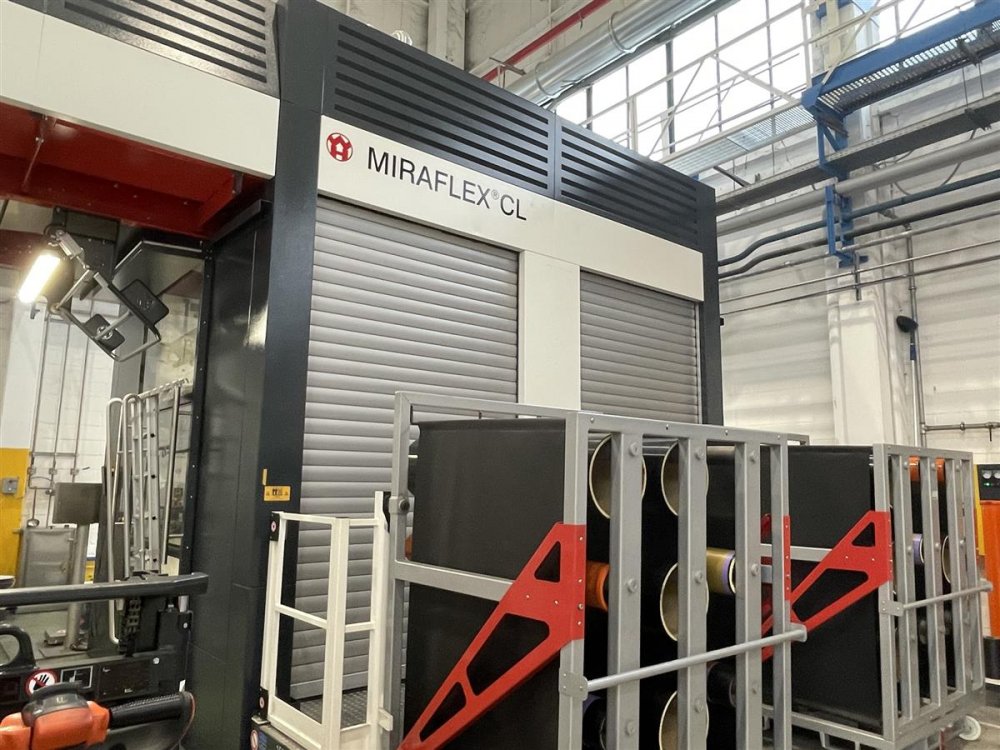

WINDMÖLLER & HÖLSCHER MIRAFLEX CL8 Imprimeus Flexo 8 couleurs

Code Machine
FL972
Fabricant
WINDMÖLLER & HÖLSCHER
Modello
MIRAFLEX CL8
Année
2018
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

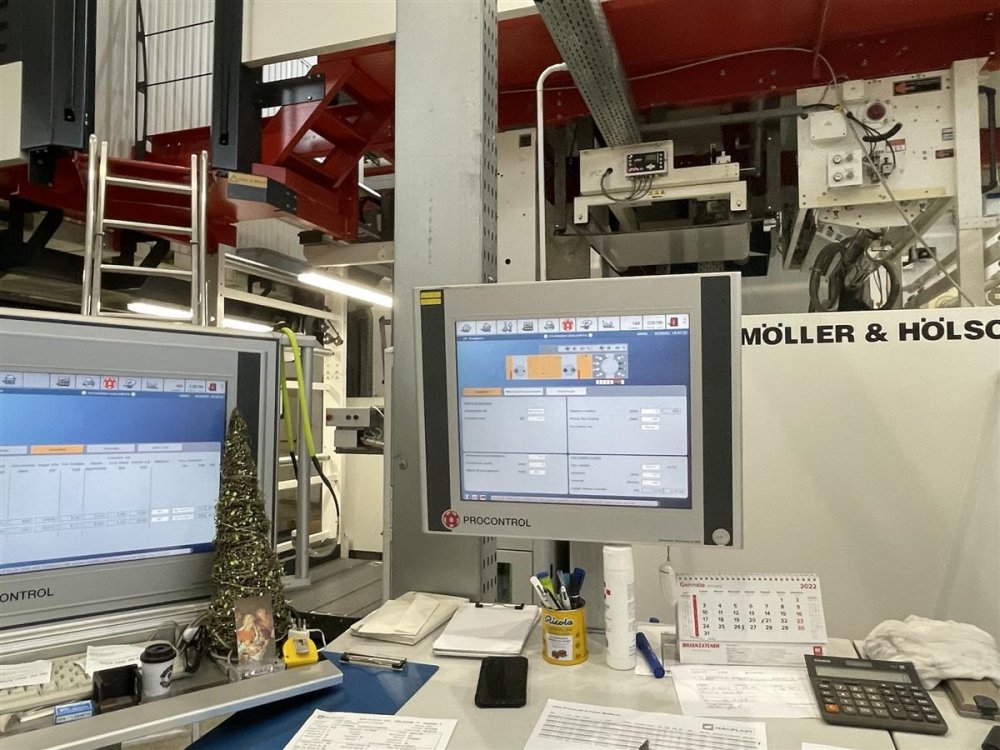

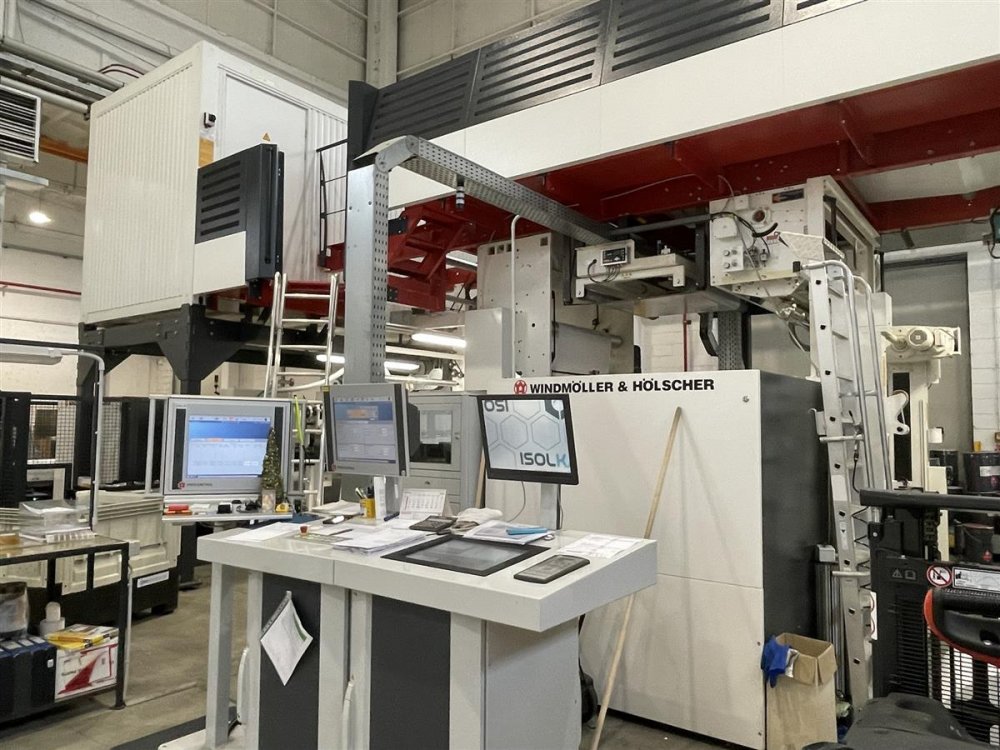

Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
500
Max print repeat (mm)
1130

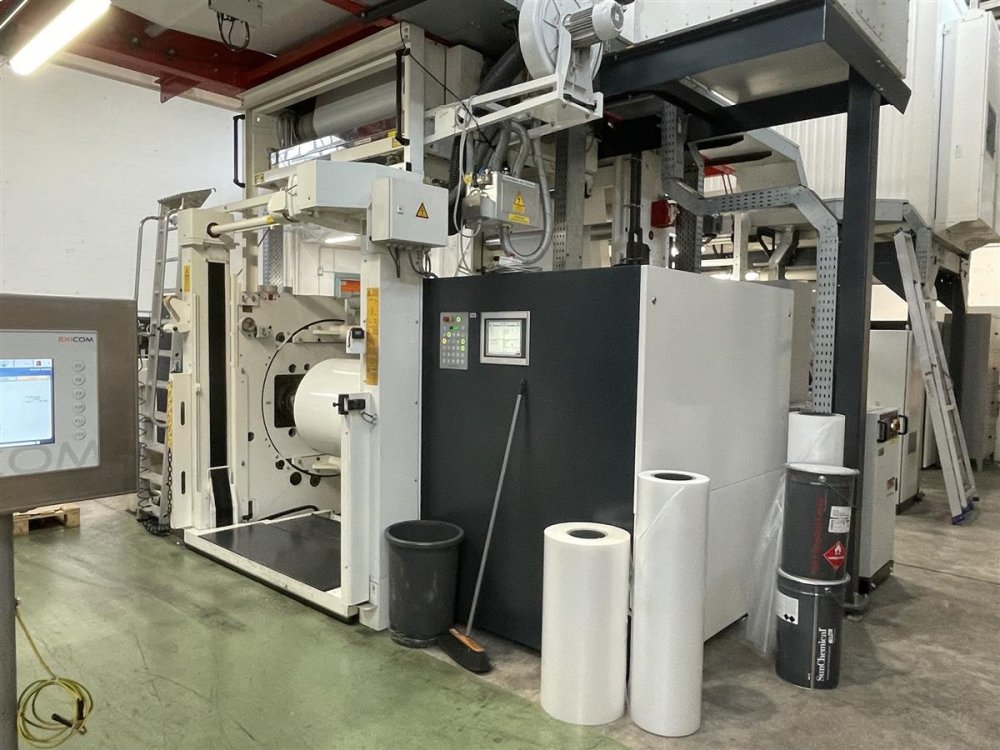

Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
1000

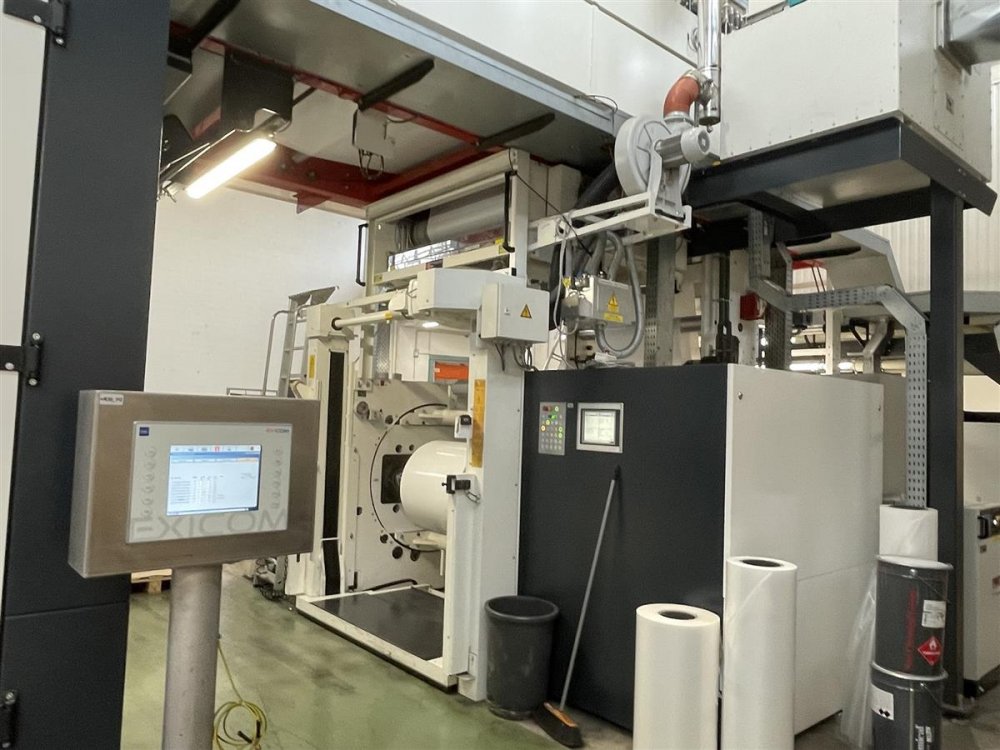

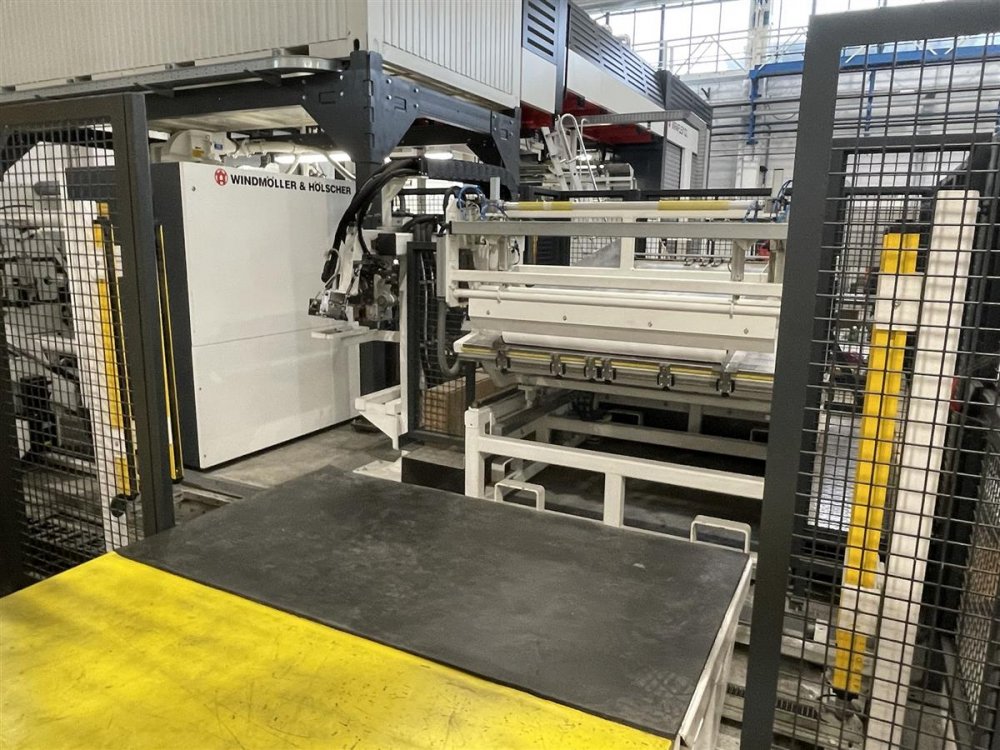

Rewinder type

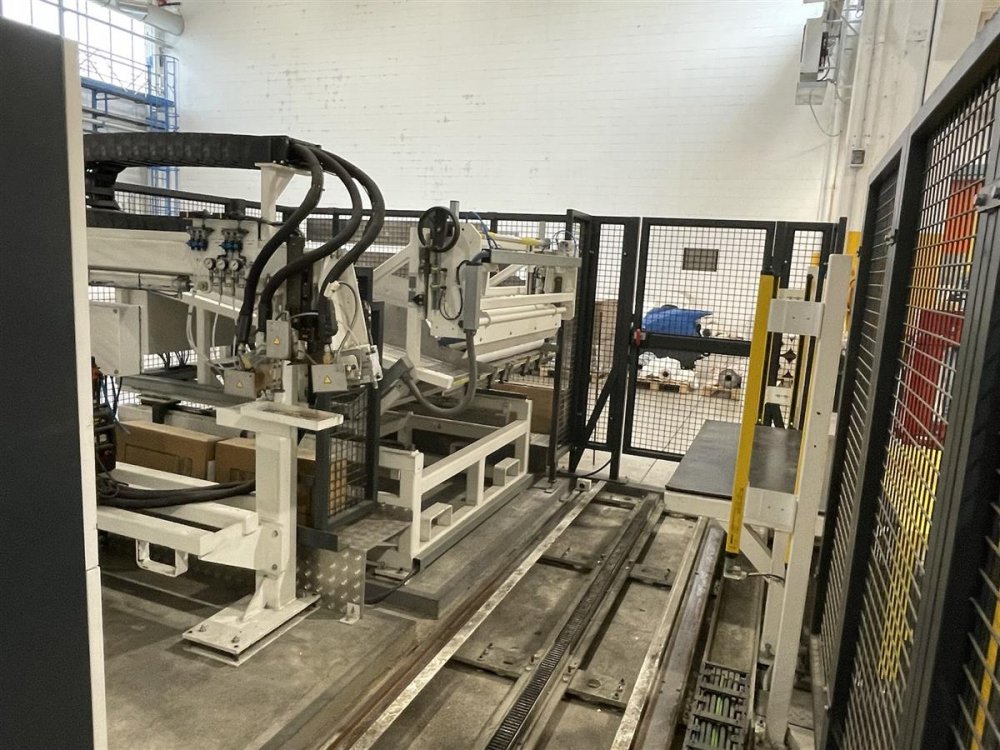

Turret automatic. Automatic finished reel unloading, cores insertion into shafts and new shafts loading. All automatic
Max reel diameter rewinder (mm)
1000
Drying
2 zones 4 fans , final tunnel, Thermo oil heaters included Thermo oil boiler gas burner heated
Videocamera
BST,3 chip with register control
Corona treatment
MERO (year 2021

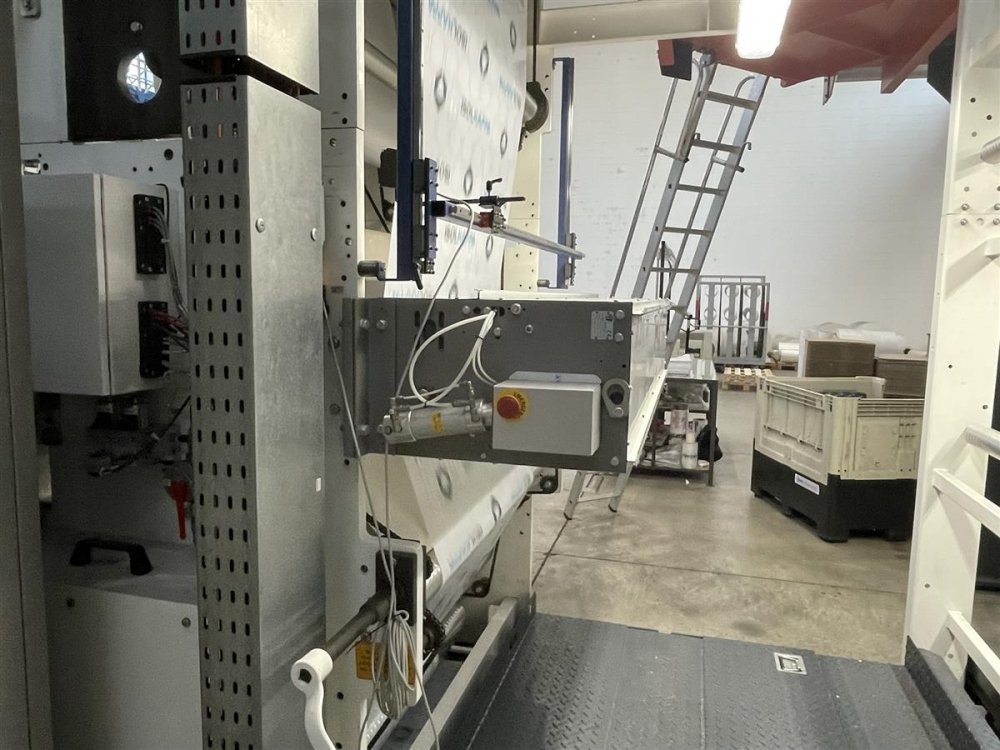

Web guides
2 X BST

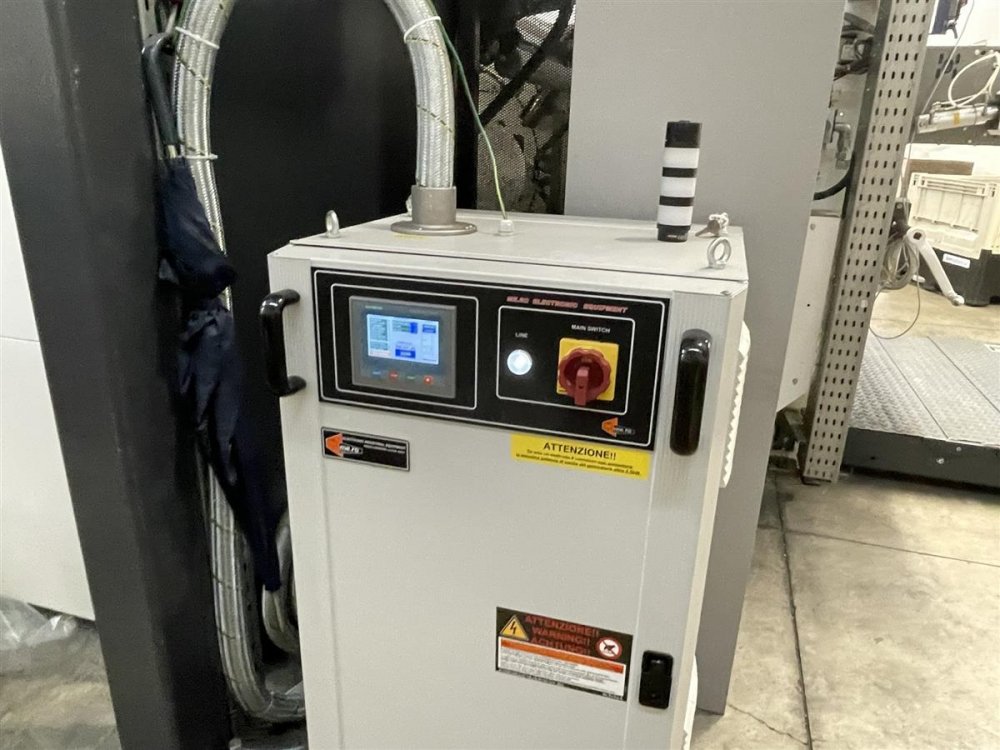

Vyscosity control
Automatic (Easy col) with coolimng system and temperature control
Washing system
Automatic

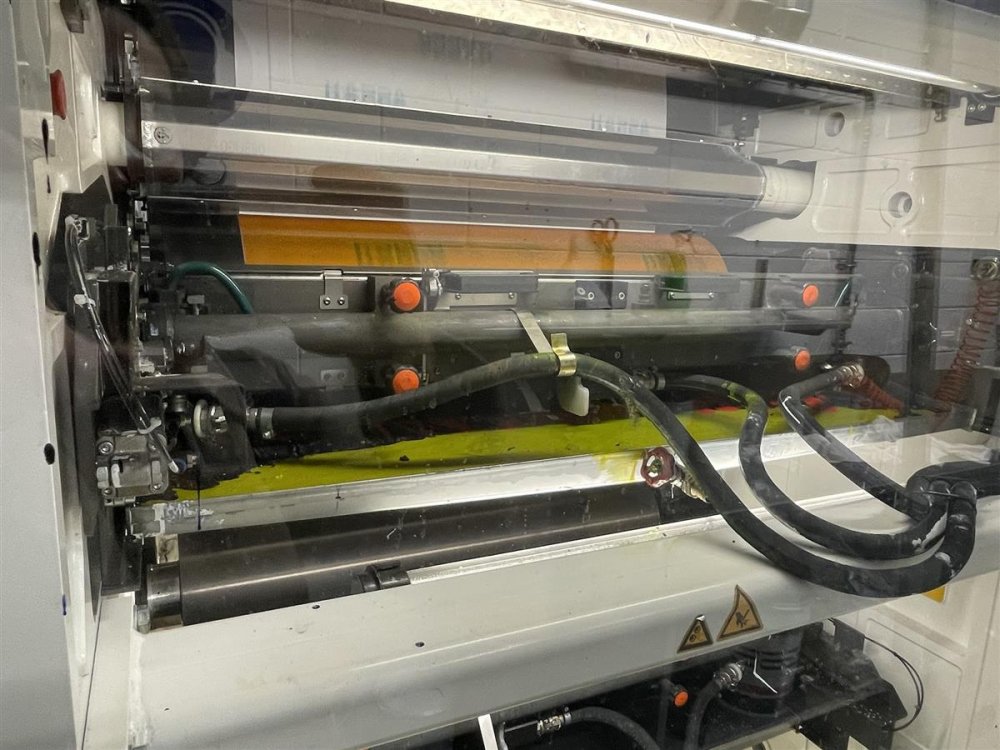

Inking system
Closed chamber doctor blade
Anilox
6X400/2X340/2X280/1X220/2X200/1X170/1X120/1X100

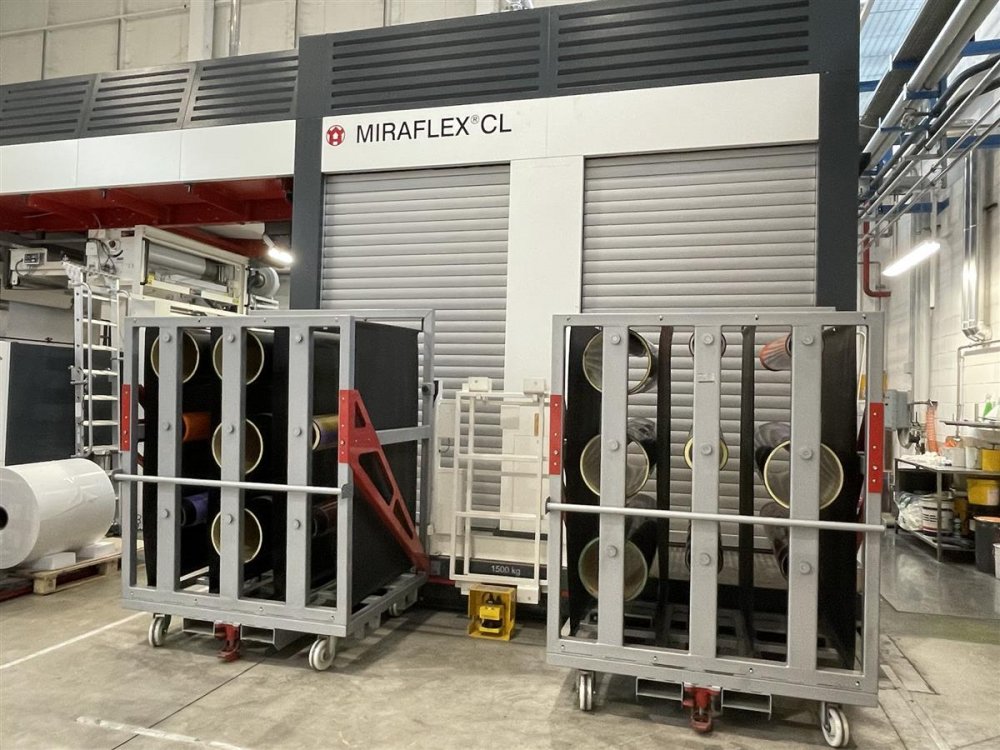

Print Sleeves
8X500/560/570/590/630/650/680/750/800/820/880/900/9701010/1020/1030/1050/1065/10801090/1120
Note

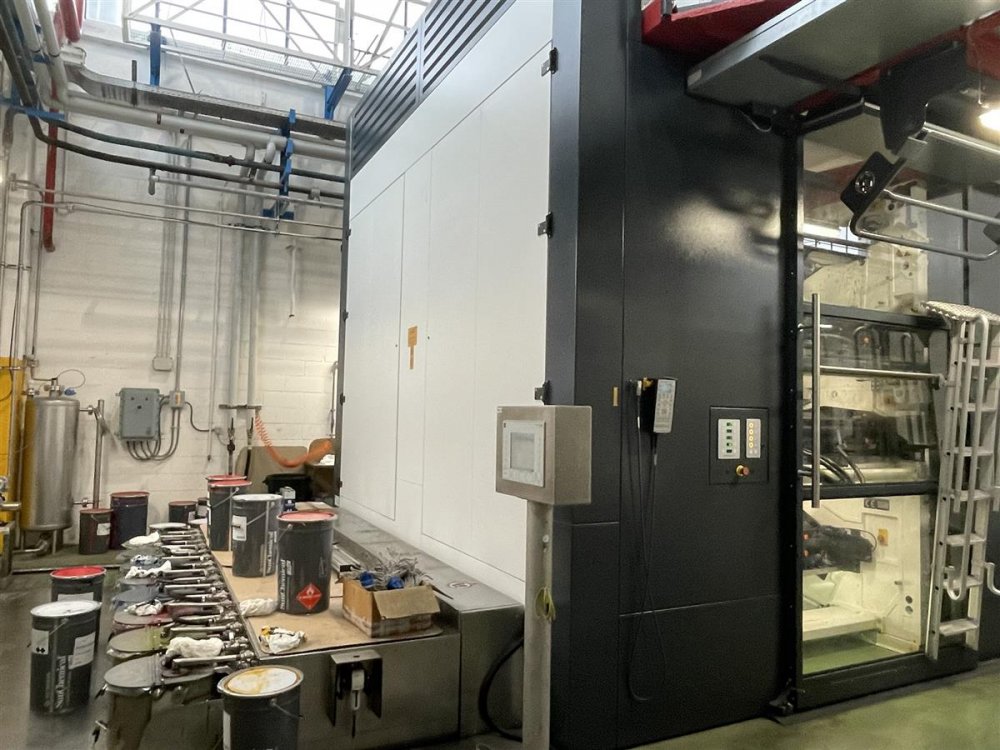

Chiller and temperature control included Additional ancillaries included : Plate mounter Anilox washing system Ink tanks and parts washing system and solvent distillation -recovery system
Code Machine FL972
Fabricant WINDMÖLLER & HÖLSCHER
Modello MIRAFLEX CL8
Année 2018
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 500
Max print repeat (mm) 1130
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic. Automatic finished reel unloading, cores insertion into shafts and new shafts loading. All automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans , final tunnel, Thermo oil heaters included Thermo oil boiler gas burner heated
Videocamera BST,3 chip with register control
Corona treatment MERO (year 2021
Web guides 2 X BST
Vyscosity control Automatic (Easy col) with coolimng system and temperature control
Washing system Automatic
Inking system Closed chamber doctor blade
Anilox 6X400/2X340/2X280/1X220/2X200/1X170/1X120/1X100
Print Sleeves 8X500/560/570/590/630/650/680/750/800/820/880/900/9701010/1020/1030/1050/1065/10801090/1120
Note Chiller and temperature control included Additional ancillaries included : Plate mounter Anilox washing system Ink tanks and parts washing system and solvent distillation -recovery system
** SOLD **
